LLB-45AS-08-00

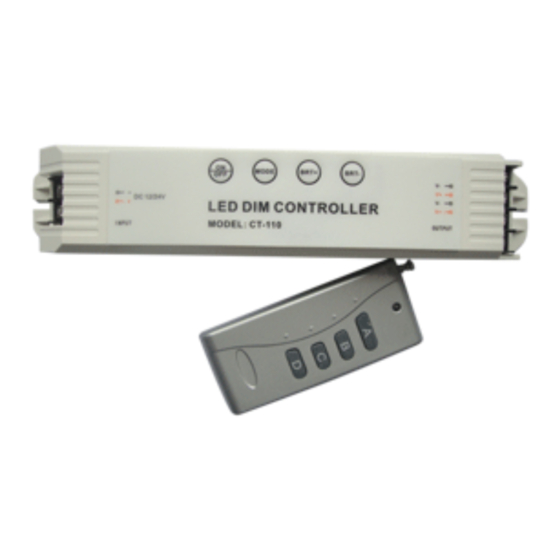

LED DIMMER Controller
Product Speciality
●0-100% brightness control, 256 levels;
●On/off function;
●1 channel, can drive up to 10A;
●0%, 25%, 50%, 75%, 100% brightness pre-saved;
●Pre-saved fade, flash changing mode, 8 scale speed;
●Remote control(Optional).
Application Sites
●Building Decoration: Business spaces, airports, subway;
●Indoor Decoration: Lighting and back lighting for hospital, hotel, marketplace, square,
dining-room, pub and etc.;
●AD solid Word, sign and mark, signboard and billboard;
●Be used as big area back lighting source.
Product Attributes
DC V_in
12/24V
I_out
10A(Max) per channel, 12V: 120W; 24V: 240W
Size
211(L)X40(W)X30(H) mm
Weight
300g
Dimension
www.lunasealighting.com
Advertisement
Table of Contents
Summary of Contents for Lunasea LLB-45AS-08-00
- Page 1 LLB-45AS-08-00 LED DIMMER Controller Product Speciality ●0-100% brightness control, 256 levels; ●On/off function; ●1 channel, can drive up to 10A; ●0%, 25%, 50%, 75%, 100% brightness pre-saved; ●Pre-saved fade, flash changing mode, 8 scale speed; ●Remote control(Optional). Application Sites ●Building Decoration: Business spaces, airports, subway;...
- Page 2 Change Mode Instruction Mode Mode Description 100% Flash Fade Operation Instruction ON/OFF: Press it to open or close the output Mode: Press it to change the mode to next one； Brightness While at M1-M5: +: Press it to increase the brightness of the LED (Continous increase by long press); - : Press it to decrease the brightness of the LED(Continous decrease by long press);...
- Page 3 Contents about install (1)The input voltage should be limited in rated range. (2)Do not use it by over load. (3)Installed in suited environment. (4)If the load line was too long, you should link it like a ring LED CONTROLLER Troubleshooting Guide Problem Reason Solution...
