Summary of Contents for Trox Technik JTA-1

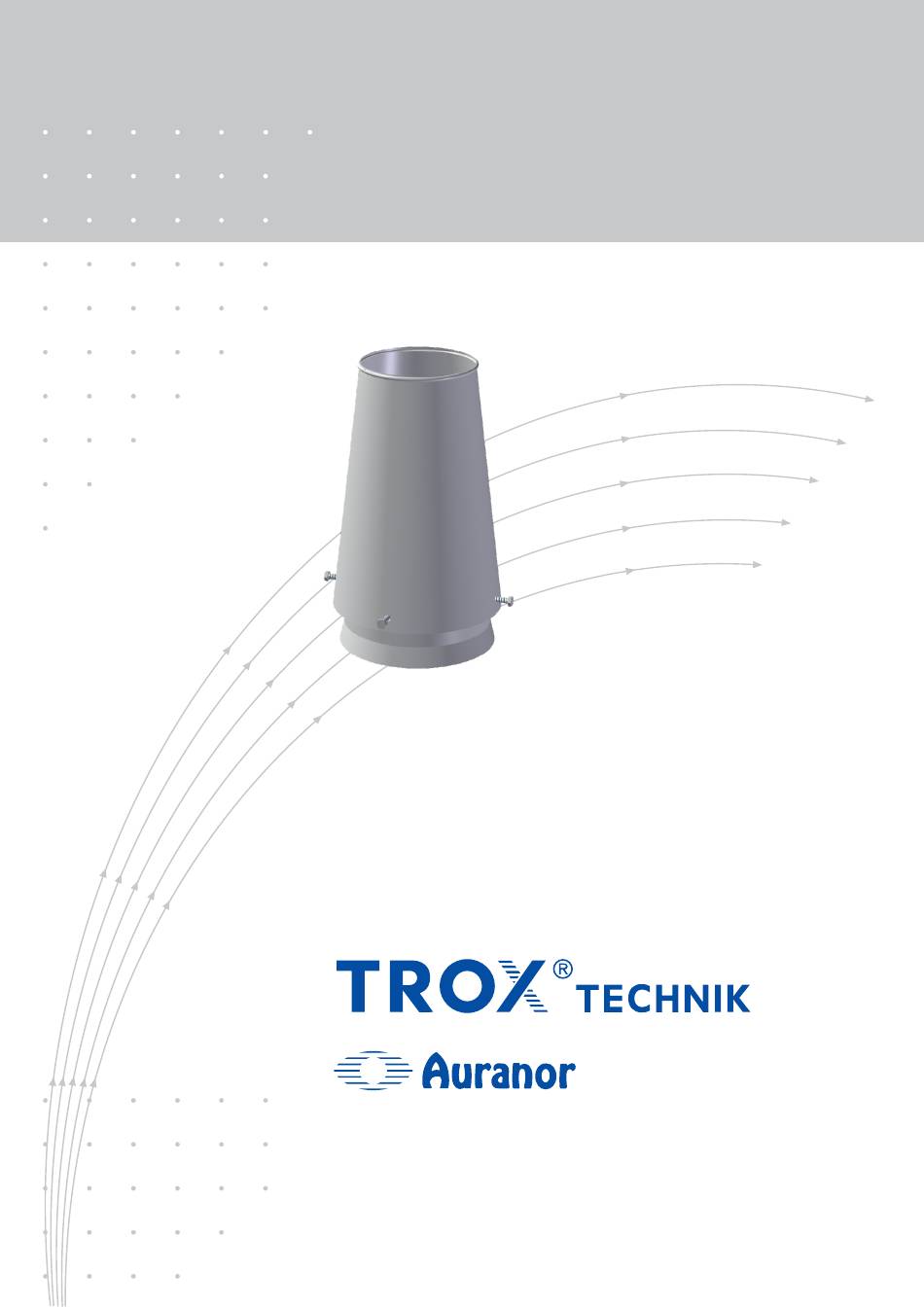

- Page 1 GB0205 01.20 JTA-1 LØV-R Roof Hoods-Exhaust • Long throw length • Connection duct as an added feature TROX Auranor Norge AS Telephone +47 61 31 35 00 Auranorvegen 6 E-mail: firmapost@auranor.no NO-2770 Jaren www.trox.no...
- Page 2 APPLICATION Order code, JTA-1 JTA-1 is a circular exhaust hood for high air discharge. JTA-1 can be shipped either with a mounting ring to be mounted on a spiral duct, or with a retangular foot plate for mounting on the roof.
- Page 3 10,3 34,4 1000 1050 1006 1300 1800 29,0 13,6 53,4 1250 1000 1300 1256 1550 1900 37,6 17,9 70,3 Table 2 ØA ØA Figure 1: JTA-1 Cone F-43 Figure 2: JTA-1 Foot plate and mounting ring Figure 3: Connection duct...
- Page 4 Diagram 2 INSTALLATION Mounting instructions for JTA-1 with mounting ring is shown in figure 4. Figure 5 displays mounting of JTA-1 with foot plate. IMPORTANT: In places exposed to strong winds, JTA-1 will have to be guyed to the roof.
