SELF-CONTAINED

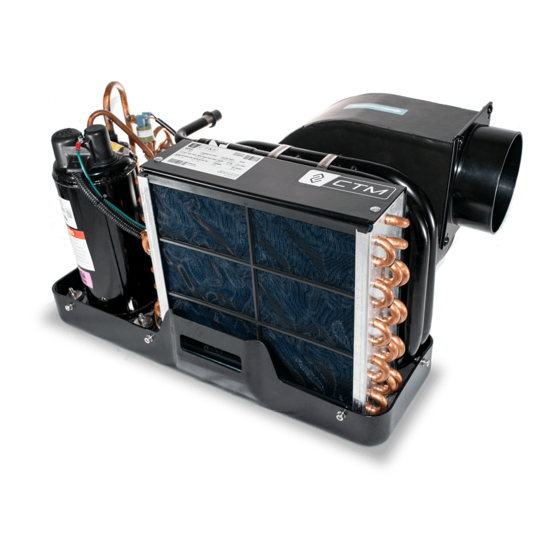

AIR CONDITIONER
(6,000 / 10,000 / 12,000 / 16,000 BTU)
INSTALLATION & USER MANUAL
Please visit http://ctm-marine.com/user-manual/
for the most updated version of this manual.
Form No. UM-CT08272021
Follow each one of the steps as explained on this manual, any deviation from the procedure explained herein constitutes improper installation of the unit and therefore waives and
forever discharges CTM Marine and its subsidiaries from any liability in connection to the installation; use; and functioning of the unit and any and all systems and parts connected to it.
MARINE
CT Models
CTM-MARINE
+1 (800) 766 - 5256
info@ctm-marine.com
www.ctm-marine.com
WARNING
Cancer and reproductive Harm
www.P65warnings.ca.gov
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CTM CT
Summary of Contents for CTM CT
- Page 1 Follow each one of the steps as explained on this manual, any deviation from the procedure explained herein constitutes improper installation of the unit and therefore waives and forever discharges CTM Marine and its subsidiaries from any liability in connection to the installation; use; and functioning of the unit and any and all systems and parts connected to it.
-
Page 2: Table Of Contents
CTM Marine Self-Contained CT Installation & User Manual Unit Label Information ………….……..………………………………………………………………….… 3 Warning Labels …………………………………………………………………………………………….… 4 How To Read This Manual ………………………………………………………………………………….. 5 Product Description & Features ……………………………………………………………………………. 7 Technical Data …………………………………………………………………………………………. 8 Installation Overview ……………………………………………………………………………………… 10 Unit Installation …………………………………………………………………………………………….. 11 Locating the Unit ……………………………………………………………………………………..…... -
Page 3: Unit Label Information
CTM Marine Self-Contained CT Installation & User Manual Unit Label information How To Read Your Label S = Unit With Soft Start H = 208 - 240 V Unit HS = 208 - 240 V Unit With Soft Start Vessel’s water pump... -
Page 4: Warning Labels
CTM Marine and its subsidiaries from any liability in connection to the installation; use; and functioning of the unit and any and all systems and parts connected to it. -
Page 5: How To Read This Manual
CTM Marine from any liability in connection to the installation; use; and functioning of the unit and any and all systems and parts connected to it. - Page 6 CTM Marine Self-Contained CT Installation & User Manual Some sections of this instructions manual have QR codes that you can easily scan with your Smartphone. They generally contain tutorial videos Pay attention to signaling symbols following the instructions in this manual throughout this manual with important or additional information.
-
Page 7: Product Description & Features
Water temperature is crucial for the CTM Marine air conditioners to function properly. The system will operate most efficiently in temperatures below 90ºF (32ºC) when cooling, and above 55ºF (13ºC) when heating. -
Page 8: Technical Data
1. Duct Ring 2. Blower/Fan 3. Condenser Coil A. Outflow B. Inflow 4. Blower/Fan Plate 5. Evaporator 6. Air Filter 7. Compressor 8. Reverse Valve 9. Stainless Steel Base 10. Drain Pan 11. Drain Holes 12. Electrical Box Back Plate 13. - Page 9 CTM Marine Self-Contained CT Installation & User Manual Model No. CT-6 CT-6H CT-10 CT-10H CT-12 CT-12H CT-16 CT-16H Capacity (BTU) 6,000 10,000 12,000 16,000 Voltage (V) 100-120 208-240 100-120 208-240 100-120 208-240 100-120 208-240 Cycle (Hz) / Phase (Ph) 50-60 / 1 Input: Cool (A) 10.5...
-
Page 10: Installation Overview
CTM Marine and its subsidiaries from any liability in connection to the installation; use; and functioning of the unit and any and all systems and parts connected to it. -
Page 11: Unit Installation
CTM Marine: customer service representatives are available to answer questions. Installing parts on maritime equipment requires knowledge on handling tools and marine qeuipment. If you are not sure whether or not you possess the skills CTM Marine recommends consulting with a professional before engaging on self-help. -
Page 12: Non-Slip Isolation Vibration Tape
CTM Marine and its subsidiaries from any liability in connection to the installation; use; and functioning of the unit and any and all systems and parts connected to it. -
Page 13: Ducting
CTM Marine Self-Contained CT Installation & User Manual Ducting Good airflow is critical for the performance of the entire system. It is highly CARBONMONOXIDE HAZARD dependent on the quality of the ducting installation. The ducting should be run > Do not route ducting through as straight, smooth and taut as possible minimizing the number of 90°... -
Page 14: Seawater System
CTM Marine Self-Contained CT Installation & User Manual Seawater System > The a/c seawater system should Refer to the drawings below for an overview of how the seawater system have a dedicated thru-hull fitting should look like: for the pump. -
Page 15: Electrical Connections
CTM Marine Self-Contained CT Installation & User Manual Electrical Connections The following must be observed when making the electrical connections: 1. In accordance with ABYC standard E-8, or equivalent, the Alternating Current (AC) ground (green wire) must be connected to the ground terminal (marked "GRND") on the AC input terminal block of the unit(s) - Page 16 CTM Marine and its subsidiaries from any liability in connection to the installation; use; and functioning of the unit and any and all systems and parts connected to it.
- Page 17 CTM Marine and its subsidiaries from any liability in connection to the installation; use; and functioning of the unit and any and all systems and parts connected to it.
-
Page 18: Display/Control Compatibility
CTM Marine Self-Contained CT Installation & User Manual Display Control CTM Marine Split System units are compatible with most thermostats currently in the market. Below are the most common thermostats displays used by major marine air conditioner manufacturers. DISPLAY MODEL... -
Page 19: Troubleshooting
CTM Marine Self-Contained CT Installation & User Manual Troubleshooting Always refer to the user manual of your digital control for troubleshooting as well. PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION EV handler circuit breaker is Turn circuit breaker ON at the main vessel’s OFF. - Page 20 CTM Marine Self-Contained CT Installation & User Manual PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION Lower temperature to desired temperature on Temperature set point. display control. Check the wiring diagram and make the Wrong wiring terminal strip necessary corrections Clean seawater strainer, check for any...
- Page 21 CTM Marine Self-Contained CT Installation & User Manual PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION Redirect supply air so that is not blowing into the Supply air is short-cycling return air stream. Check and seal any leaks in ducting. Close hatches, doors, portholes, to minimize Humidity to high humidity inside the air conditioned cabin.
-
Page 22: Ctm Limited Non-Transferable Warranty
The warranty period of registered CTM products is (2) two years, being the first year parts and labor, the second year parts only. For unregistered CTM products (1) one year, being the first 6 months parts and labor, and the last 6 months parts only. - Page 23 Economic loss for expenses related to travel, vehicle disability, personal injury or other incidental or consequential damages arising from any breach of this expressed warranty. CTM RETAINS THE RIGHT TO MODIFY THESE WARRANTY TERMS WITHOUT NOTICE IN ORDER TO COMPLY WITH POLICY OR LAWS GOVERNING WARRANTY ISSUES IN STATES OR COUNTRIES HAVING SPECIFIC...
- Page 24 CTM Marine Self-Contained CT Installation & User Manual You can register your CTM unit or file a claim by visiting www.ctm-marine/warranty or by scanning the code below with your smart device.
