- Page 1 INSTRUCTION MANUAL ® Leakfinder Model No. 625-WV609 BMW Smoke Tester Diagnostic Smoke Vapor ® with UltraTraceUV® Dye Solution Leak Detection System for the Professional Technician USA | Canada Patents ● 6,392,227 • 6,439,031 • 6,526,808 | 2,279,147 • 2,394,911 | Int’l Patents Pending...
- Page 3 Caution and Usage Tips DISCONNECT the smoke tester from the vehicle prior to starting the engine or prior to running any on-board monitor, including the DMTL or LDP. Damage caused by not following proper operating procedures will not be covered by the vehicle warranty or the smoke tester warranty.
- Page 4 Contents Accessories Included Product Overview & Technical Specifications Initial Setup Quick Start Guide 4 – 7 Other Leak Samples 8 – 9 Control Valve Overview Flow Meter Overview EVAP Tech Tips Troubleshooting Guide Warranty Thank You and Congratulations! Your Leakfinder® 625-WV609 smoke tester is approved for Evaporative Emissions System (EVAP) leak-testing, as well as other systems, on all BMW vehicles.
-
Page 5: Accessories Included
Handle Pad (625-WVA-087) Air fitting: Two are supplied. The automotive style fitting is installed on the smoke tester. The spare fitting is an industrial fitting but also popular in auto facilities. See website for additional accessories and information: www.vacutec.com... -
Page 6: Technical Specifications

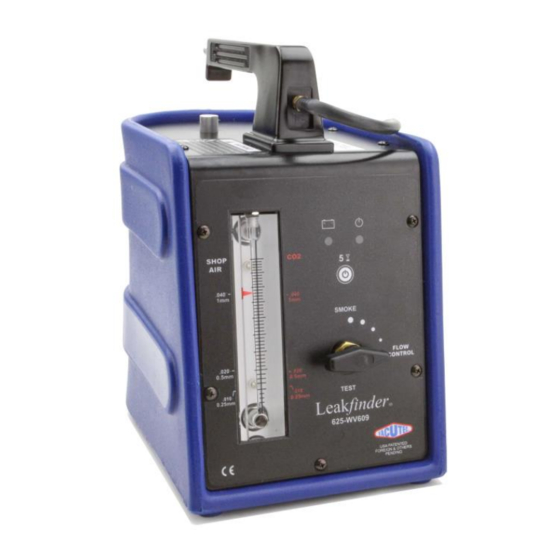

Product Overview & Technical Specifications Air/Gas Inlet Supply Hose Dipstick To maintain solution level. Top off regularly Indicator Lights <ON> <OFF> Switch Flow Meter On 5-minute timer With leak-size indicators Control Valve Scratch-Resistant Housing Power Cables Back of tester Filter Drain Port Underside of tester Water Separator / Filter (inside tester) with drain port at underside of tester;... -
Page 7: Initial Setup
Initial Setup Full > Pour entire contents of one 12 oz. UltraTraceUV® solution bottle into the smoke chamber. NOTE: Use second bottle supplied to regularly maintain at or near FULL mark. > If not supplied; install correct air fitting onto the Leakfinder®. NOTE: Your Leakfinder®... - Page 8 Quick Start Guide Do One of the Following: Connect to workshop air for general purpose (non EVAP) leak testing. Regulate nitrogen from 50 to 175 PSI (3.4 bar - 12 bar | 345 kPa – 1,206 kPa) Connect to Nitrogen, or other inert gas, when testing fuel evaporative (EVAP) system.
- Page 9 <ON> / <OFF> switch > Connect power converter to smoke tester and grounded extension cord supplied to grounded 120-Volt AC 50/60 Hz wall outlet and turn > Green light will turn <ON>. power converter <ON>. > A blinking green light indicates a lack of power from the converter, which means it could be set too...
- Page 10 > Use cone to access intake system and connect smoke supply hose to cone. > Refer to SI B 16 01 07 for additional information. > Position to SMOKE (full flow). > Press START button. > Green and red lights are <ON>. >...
- Page 11 > Use white light to find the smoke. > Use UV light and yellow glasses to find the dye.
- Page 12 Other Leak Samples Leakfinder® can be used in virtually any vehicle low pressure system suspected of having a leak, such as; intake / induction, intercooler and turbocharger, vacuum, exhaust, EVAP and even wind/water leaks. Can also be used to verify air solenoid functions and test components prior to assembly. Exhaust Fluorescent Dye Deposit The UltraTraceUV®...
- Page 13 Wind and Water Leaks ’ ‘ ’ ’ ‘ ’ > > > No smoke distrurbance means ‘No Leak’ < Smoke distrubance pinpoints the leak...
- Page 14 Control Valve Overview TEST : Delivers non-smoke air and a very accurate flow meter reading. This setting is for determining if a leak exists and how large it is. SMOKE : Delivers maximum smoke volume. FLOW CONTROL : Controls smoke volume. >...
- Page 15 Flow Meter Overview A flow meter ball indicating flow means there is flow going into (or through) the system being leak- tested. This is normal while the system is being filled. If flow meter indicates flow after the system is filled, this indicates a leak.
- Page 16 EVAP Tech Tip ALL TESTS WITH THIS TESTER ARE PERFORMED WITH THE VEHICLE’S ENGINE TURNED OFF! Do One of the Following: 1. The flow meter is active in the SMOKE and TEST positions of the Flow Control Valve. However, for the most precise quantifying of a leak size use the TEST position in either of these two methods.
-
Page 17: Troubleshooting Guide
Troubleshooting Guide Two lights on the control panel double as diagnostic lights. Green Interval Cause Indicates a lack of power from the power Blinks: 1 per second converter, which means it could be set too low. Bad ground or power connection at smoke ... -
Page 18: Warranty | Technical Support
Warranty | Technical Support LIMITED TWO (2) YEAR WARRANTY Leakfinder® Model 625-WV609 Worldwide Vapor, Inc. Warrants To the Original Purchaser; under normal use, care and service, Tester shall be free from defects in material and workmanship for TWO YEARS from the date of original invoice. Seller's obligations under this warranty are limited solely to the repair or, at Seller's option, replacement of or refund of the original purchase price for, Equipment or parts which to Seller's satisfaction are determined to be defective and which are necessary, in Seller's judgment, to return the equipment to good operating condition.
