Summary of Contents for Cookworks CM5013B-GS

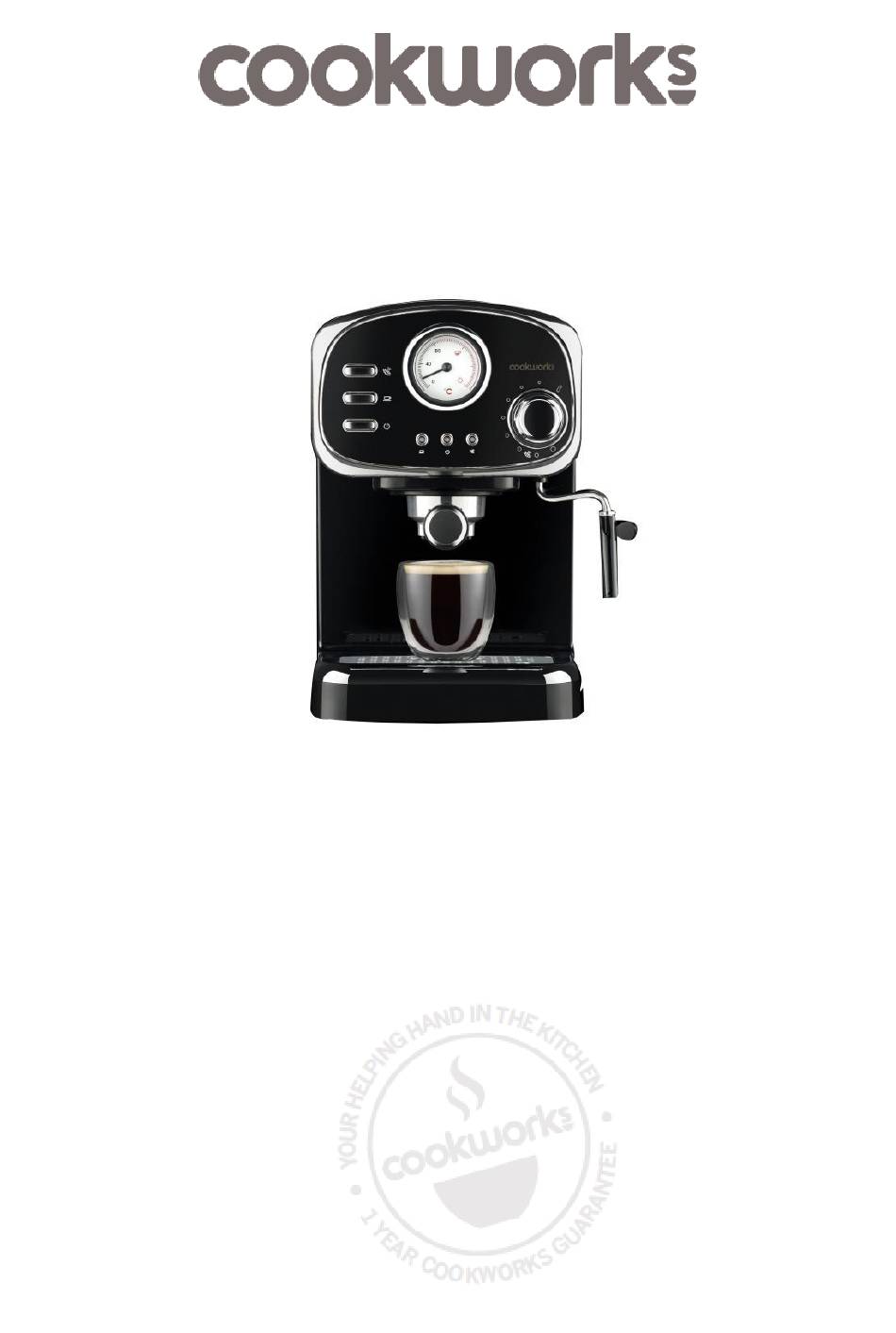

- Page 1 Espresso Coffee Machine Model No. CM5013B-GS Care & Instruction Manual For household and indoor use only Please read these instructions before use and retain for future reference Issue 4 05/08/2021...
-
Page 2: Electrical Safety
ELECTRICAL SAFETY • You should only plug the appliance into a 220V‐240V AC, 50Hz supply. Connecting it to other power sources may damage the appliance and will invalidate the guarantee. • This espresso machine is designed for domestic use. Don’t use it in wet or damp locations. - Page 3 WARNING! • This appliance is intended exclusively for use in domestic households. It is not suitable for commercial use • Hot liquid or steam is emitted from the brewing head and steam nozzle during operation and descaling. • Do not cover and allow to the espresso machine to cool fully before storing.
- Page 4 PARTS 1. Cup stand 13. Steam knob 2. Temperature dial 14. Steam nozzle & cover 3. Steam button 15. Brewing nozzle 4. Coffee button 16. Float (under cup shelf) 5. ON/OFF button 17. Spoon and tamper (not 6. Coffee indicator (green) shown) 7.
- Page 5 PARTS (continued) Water tank handle & lid Filter holder lever FITTING THE FILTER 1. Align the small lug on the edge of the filter with the notch on the rim of the filter holder (fig.1). 2. Rotate the filter a small way to help prevent the filter from falling out of the filter when emptied (fig.2).
-
Page 6: Preparation For Use
PREPARATION FOR USE Before using the espresso maker for the first time. It is important to thoroughly clean the appliance before first use. Place the espresso maker on a stable, flat, heat resistant surface and away from surfaces that may be damaged by steam. - Page 7 Before using the espresso maker for the first time. (CONTINUED) Press the ON/OFF ( ) button to turn the machine on and the red power indicator will illuminate. The appliance will start to heat up and the temperature will start to rise on the thermometer.
- Page 8 TO USE – MAKING ESPRESSO A hotter more flavoursome coffee will be achieved if the espresso maker is pre-heated before making the first cup of coffee. 1. To preheat the espresso maker, follow the ‘Preparation for use’ directions on the previous page. Discarding the equivalent of two espresso cups (200ml approx.) of water.
- Page 9 Notes: • Do not use without the drip tray fitted. A small amount of liquid back flows into the drip tray after each cup of coffee made. Empty the drip tray regularly and when the float becomes visible through the cup shelf. •...
-
Page 10: Cleaning & Descaling
TO USE – USING THE STEAM NOZZLE (CONTINUED) 9. When the milk is hot and sufficient froth has been generated, turn the steam control knob back to the ‘0’ position. Keep the steam nozzle beneath the surface of the milk (to prevent splattering) until the steam has stopped flowing. - Page 11 CLEANING (CONTINUED) 3. The water tank can be rinsed with clean water and the outside wiped with a soft damp cloth. 4. Wipe external surfaces of the espresso maker with a soft damp cloth and dry surfaces with a soft dry cloth. Do not use detergent or abrasives as these may scratch the surface.
-
Page 12: Troubleshooting
DESCALING (CONTINUED) 10. Discard any remaining descaling solution in the water tank. Rinse the tank thoroughly with clean water and refill to the max line. 11. Repeat steps 2–7 above a further three times to ensure pipework is thoroughly flushed. 12. -
Page 13: Recycling Electrical Products
TECHNICAL SPECIFICATION Cookworks Espresso Coffee Machine Model CM5013B-GS Rated Voltage & Frequency 220 - 240V AC 50Hz Rated Power Input 1100W Class rating 1 (earthed) BS 1362 fuse Product dimensions (external) 291 x 310 x 200mm. Product weight (net) 3.6 kg approx. - Page 14 Milton Keynes, MK9 2NW. Argos (N.I.) Ltd, Forestside Shopping Centre, Upper Galwally, Belfast, United Kingdom, BT8 6FX. Argos Distributors (Ireland) Limited, Unit 7, Ashbourne Retail Park, Ballybin Road, Ashbourne, County Meath, Ireland www.argos.co.uk/cookworks Tel: 0345 640 3030 Issue 4 05/08/2021...
- Page 15 Issue 4 05/08/2021...
