Synapse CONTROL-485-101 Quick Start Manual

WARNINGS AND CAUTIONS:
• TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER AT CIRCUIT BREAKER OR
FUSE AND TEST THAT POWER IS OFF BEFORE WIRING!
• Risk of Electric Shock - More than one disconnect switch may be required to de-
energize the equipment before servicing.
• To be installed and/or used in accordance with appropriate electrical codes and
regulations.
Part Number: CONTROL-485-101

DESCRIPTION

The Control Thermostat works in conjunction with other
SimplySnap nodes to provide access to BACnet MSTP
thermostats.

SPECIFICATIONS

Input power: 12-24VDC +/-10% or
24VAC +/- 10% from an UL listed Class 2, 24V
transformer (not provided), half-wave compatible.
Dimensions: 7.8" L x 3.9" W x 2.8" H
(200mm x 100mm x 70mm)
IP Rating: IP-66
Mounting: Independently surface mounted, Wall or
I-Beam (mounting brackets included)
Control: Operating (Non-safety) HVAC/MAU control
Supported Thermostats: Honeywell BACnet FF TB3026
Serial Interface: RS-485 or RS-422
Baud Rates: 9600, 19200, 38400, 76800 and 115200
Radio: 2.4 GHz (IEEE 802.15.4), +20 dBm Transmit
Power, -103 dBm Receive Sensitivity
Warranty: 1 Year
See www.synapsewireless.com/warranty for warranty
terms.
CAUTION
• The Control Thermostat hardware must be installed in
accordance with national, state, and local electrical codes
and requirements.
• All work must be performed by qualified personnel.
• The common signal from the Control Thermostat
hardware should not be tied to earth ground.
• Disconnect all power before installation or service.
Control Thermostat
Operating Temperature: 0C to +60C / Input Power: 12-24VDC or 24VAC, 50-60Hz

INSTALLATION GUIDE

INCLUDED MATERIAL

• 2 Cable glands
• 1 Hole plug
• Mounting brackets

NEEDED MATERIAL

•
Screw Driver: A #2 Phillips is required to connect the
cables to the terminals.
• Mounting Screws: Mounting bracket holes fit #10
screws
• Conduit: To maintain the 4X rating of the enclosure, it
must be installed with the 4X ½" cable glands supplied
or with minimum 4X liquid-tight ½" conduit fittings, not
supplied, at the power/signal entry points.

INSTALLATION INSTRUCTIONS

1. Select a suitable installation location for the Control
Thermostat hardware e.g. between the BACnet
thermostat and the HVAC/MAU.
2. Select between inline or adjacent installation, see
Figure 1 for more details.
3. Mount the Control Thermostat hardware using the
brackets included.
4. Open the enclosure cover.
5. Install ½" cable gland(s) supplied and torque nuts to
60 in-lbs; or use liquid-tight conduit fittings as
required.
6. If only one cable entry is used, plug the unused hole
with the liquid-tight plug supplied.
7. To maintain the IP rating, jacketed cable wires are
recommended with cable diameter of 0.21" – 0.33".
Torque sealing cable glands to 40-55 in-lbs,
depending on the cable diameter and jacket
hardness.
8. AC powered: Connect the AC power wires (e.g. from
the HVAC 24VAC transformer) to wire terminals
COMMON and 24VAC/DC maintaining the correct
polarity. See Figure 2
WARNINGS AND CAUTIONS:
• If you are unsure about any part of these instructions, consult an electrician.
• Use this device with copper or copper clad wire only.
Mounting: For best RF performance and signal strength, do not mount this device
inside a metal box. Final installed unit should also be mounted with open space on 2 or
more sides.
9.
10. If the Control Thermostat hardware is being
11. RS-485/BACnet serial connections: Connect the
12. Ensure all control lines are reattached to the
13. Contact Synapse for Support- (877) 982-7888
DC Powered: Connect the DC power supply wire (+)
to 24VAC/VDC and (-) to COMMON.
See Figure 3.
connected inline with the BACnet thermostat,
connect the thermostat power wires to the same
Control Thermostat hardware terminals COM/GND
and 24VAC/DC. See Figure 2
Control Thermostat screw terminal D+ to MS/TP+ on
the BACnet thermostat, D- to MS/TP- and GND to GND
;or connect to D+ to D+, D- to D- and GND to GND on
any other RS-485 serially controlled devices.
See Figure 4.
thermostat.
Control
Thermostat
Inline Installation
Control
Thermostat
Adjacent Installation

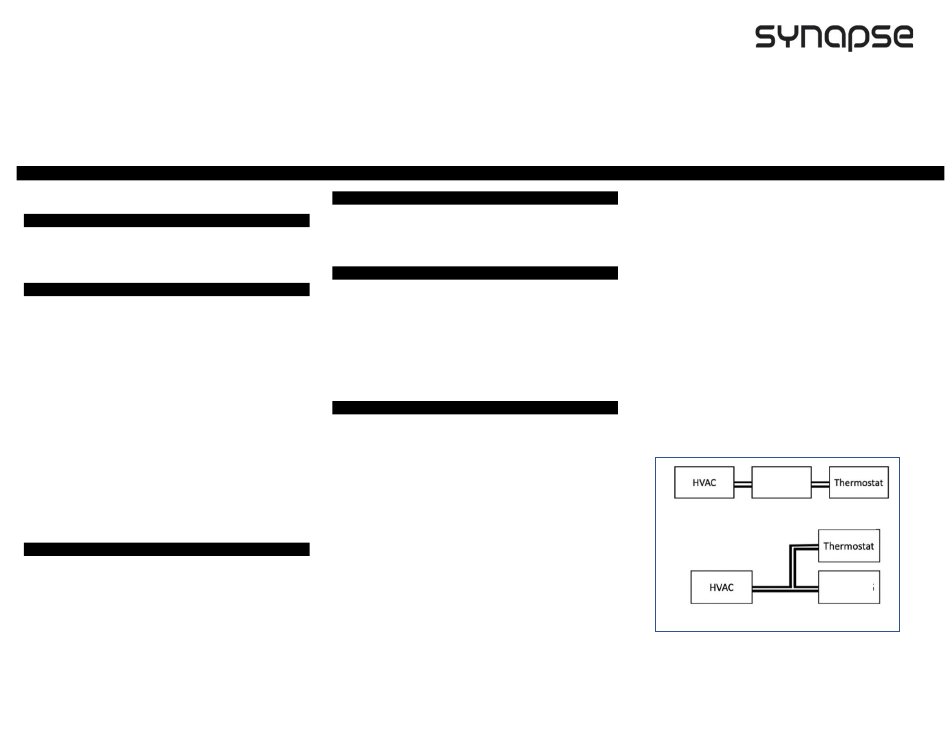

Figure 1. Installation options
DOC-1000560-B-1
