Summary of Contents for SOFIHUB eazense

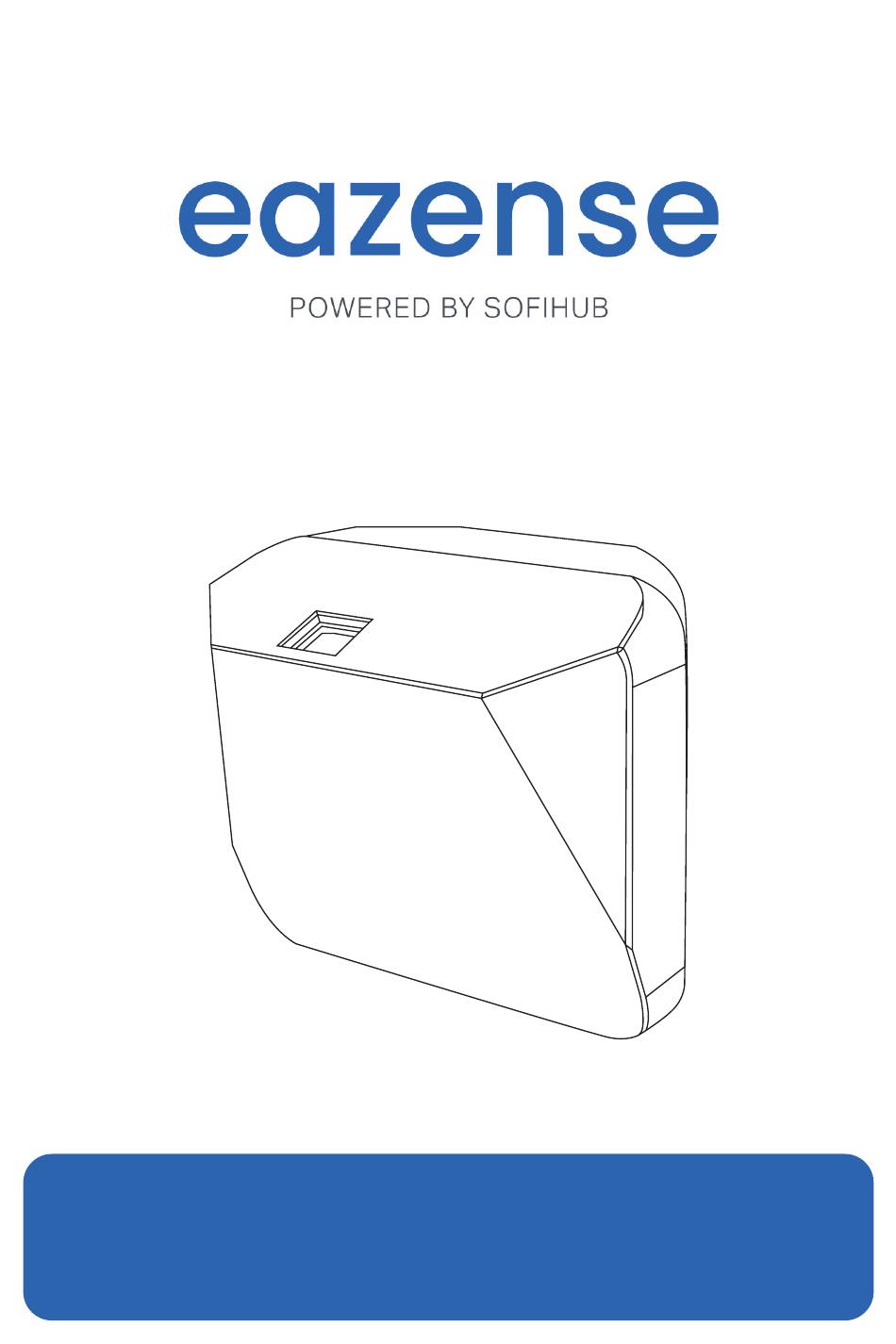

- Page 1 SETUP AND INSTALLATION GUIDE...
- Page 2 POWERED BY SOFIHUB | SETUP AND INSTALLATION GUIDE Navigate to the SOFIHUB website www.sofihub.com and select ‘Portal’. This will be found at the top right of the home page and create your account. Please select your location Australia/New Zealand OR United States/Canada...
- Page 3 POWERED BY SOFIHUB | SETUP AND INSTALLATION GUIDE Next enter the MAC address of the radar (found on the rear of the device) and name the radar. Your next step will be to subscribe to the monthly monitoring fee if applicable.
- Page 4 POWERED BY SOFIHUB | SETUP AND INSTALLATION GUIDE Installation notes & comments: • The radar must be installed with its ethernet port horizontal (facing the ceiling) and must be flush against a wall with no tilts in any direction.
- Page 5 POWERED BY SOFIHUB | SETUP AND INSTALLATION GUIDE Mounting eazense on the wall: To mount the eazense radar, choose a corner of the room which ensures the best coverage. Take the guide template from the box and place it 2.2m from the floor.
- Page 6 POWERED BY SOFIHUB | SETUP AND INSTALLATION GUIDE Connecting eazense to the internet and a power source: 1. Connect an Ethernet cable from the radar sensor (eazense) to the PoE power injector or PoE router switch. 2. Then connect the PoE power injector or PoE router switch to its power source.
- Page 7 POWERED BY SOFIHUB | SETUP AND INSTALLATION GUIDE Settings Please confirm the radar is positioned as per the below and then in the ‘General Radar Settings’ please enter the room dimensions. Radar must be mounted between 2 and 2.4 m from floor level. Ideal height is 2.2 m.
- Page 8 This will also show on the main dashboard page PORTAL When a fall is detected an SMS with an alert will be sent to the nominated carer for action. To reset the anomaly log in to the SOFIHUB portal dashboard and follow the steps.
-
Page 9: Specifications
POWERED BY SOFIHUB | SETUP AND INSTALLATION GUIDE Specifications: Radar mmW radar sensor Horizontal field of view: +/-60˚ Vertical field of view: 45˚ Update rate: 1 fps Range of reach: 0.5m to 4m Network TCP/IP Encryption of data Centralised certificate management, signed firmware... -
Page 10: Included Accessories
POWERED BY SOFIHUB | SETUP AND INSTALLATION GUIDE Dimensions: 93mm 140mm 124mm 140mm Weight: Included accessories: 250 g Installation guide Drill hole template 3-year warranty... - Page 11 Phone: 1300 110 366 Email: info@sofihub.com SOFIHUB.COM...
