Summary of Contents for Blackbird 15650

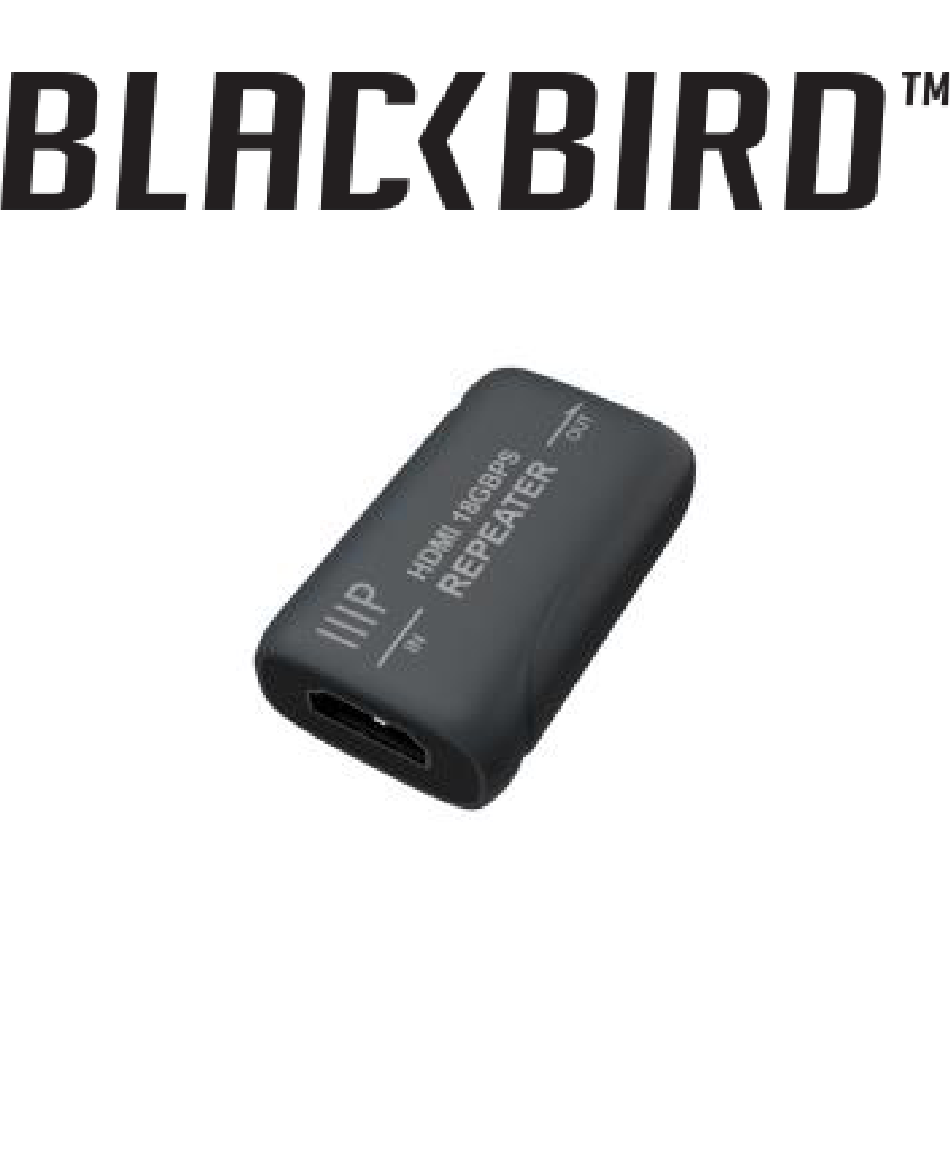

- Page 1 4K Pro HDMI® 2.0 Repeater P/N 15650 User's Manual...
- Page 2 SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. • This device is intended for indoor use only. Do not expose this device to water or moisture of any kind.
- Page 3 • Do not expose this device to excessively high temperatures. • Clean using a soft, dry cloth only. Do not use chemical cleaners, solvents, or detergents. For stubborn deposits, moisten the cloth with warm water. • This device has no user serviceable parts. Do not attempt to open, service, or modify this device.
- Page 4 INTRODUCTION This Blackbird™ 4K Pro HDMI® 2.0 Repeater amplifies and equalizes an HDMI signal, allowing it to be extended further than otherwise possible. It can extend 4K@60Hz 4:4:4 signals up to 26 feet (8 meters), 4K@60Hz 4:2:0 up to 49 feet (15 meters), or 1080p@60Hz up to 65 feet (20 meters).
- Page 5 FEATURES Complies with the HDMI® 2.0, HDCP™ 2.2, • and DVI™ 1.0 standards Provides 18Gbps video bandwidth • Supports resolutions up to 4K@60Hz 4:4:4 • Supports HLG, HDR 10, HDR 10+, and Dolby • Vision™ Can extend 4K@60Hz 4:4:4 signals up to 26 •...
-
Page 6: Online Support
Built-in TMDS® equalization and Clock Data • Recovery (CDR) Bus powered - no external power required • ONLINE SUPPORT Monoprice is pleased to provide free online support. For order related issues, contact the Customer Service department through the Live Chat link on our website www.monoprice.com or via email at support@monoprice.com For technical issues, contact the Technical Support department through the online chat... -
Page 7: Package Contents
button on our website www.monoprice.com or by sending an email to tech@monoprice.com Check the website for support times and links. PACKAGE CONTENTS Please take an inventory of the package contents to ensure you have all the items listed below. If anything is missing or damaged, please contact Monoprice Customer Service for a replacement. -
Page 8: Product Overview
PRODUCT OVERVIEW IN: HDMI® port for connecting the video source device. 2. OUT: HDMI port for connecting the video display. -
Page 9: Specifications
SAMPLE CONNECTION DIAGRAM SPECIFICATIONS 15650 Maximum 4K@60Hz YCbCr Resolution 4:4:4... - Page 10 HDMI® Version HDCP™ Versions 2.2 / 1.x Video Bandwidth 18Gbps 1080p@60Hz: 8-bit, 10-bit, 12-bit 4K@60Hz 4:4:4: Supported Color 8-bit Depths 4K@60Hz 4:2:2/4:2:0: 8-bit, 10-bit, 12-bit Supported Color RGB, YCbCr 4:4:4, Spaces YCbCr 4:2:2/4:2:0...
- Page 11 PCM 2.0/5.1/7.1, HDMI® Audio Dolby® 5.1, DTS® 5.1, Formats Dolby TrueHD™, DTS-HD™ Operating +32 ~ +104°F Temperature (0 ~ +40°C) Storage -4 ~ +140°F Temperature (-20 ~ +60°C) 20 ~ 90& RH, Operating Humidity noncondensing 2.0" x 1.0" x 0.6" Dimensions (50 x 25 x 15 mm)
-
Page 12: Regulatory Compliance
Weight 0.5 oz. (13g) REGULATORY COMPLIANCE Notice for FCC This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any... - Page 13 interference received, including interference that may cause undesired operation. Modifying the equipment without Monoprice's authorization may result in the equipment no longer complying with FCC requirements for Class B digital devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct any interference to radio or television communications at your own expense.
- Page 14 are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
- Page 15 Reorient or relocate the receiving antenna. • Increase the separation between the • equipment and receiver. Connect the equipment into an outlet on a • circuit different from that to which the receiver is connected. Consult the dealer or an experienced •...
- Page 16 Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Monoprice™, Blackbird™, the Blackbird logo, and all Monoprice logos are trademarks of Monoprice Inc. HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
- Page 17 HDCP™ is a trademark of Digital Content Protection LLC. DVI™ is a trademark of the Digital Display Working Group. Dolby®, Dolby Vision™, Dolby TrueHD™, and the double-D symbol are trademarks of Dolby Laboratories. TMDS® is a registered trademark of Silicon Image, Inc.
