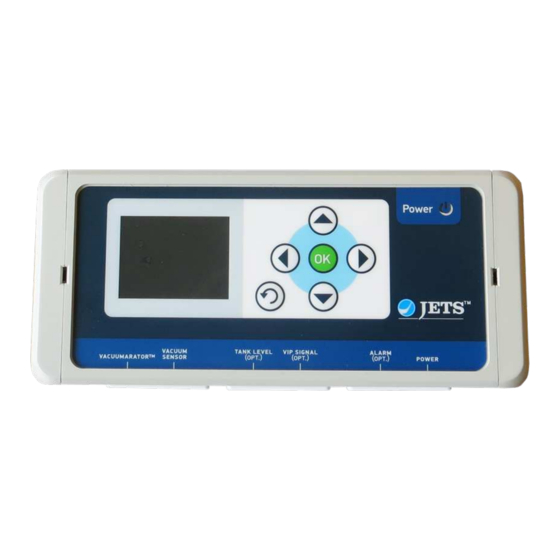

VAC Controller CVS/VIP
Pro uct No. 121315143
echnical Data
Outside imensions
......................................
Generic Material
................................................................................
Net Weight
....................................................................................
Operating Data
Voltage
................................................................................
Disclaimer
Note: Our products and services are offered and sold subject to Jets
Vacuum AS' General Sales Conditions, copies of which will be
furnished upon request. Information provided herein is solely for
information purposes, does not constitute any warranty or
representation of any kind and is subject to change without notice.
We strive to reproduce product colors reasonably accurate. Without
prior written approval, this document or any part of may not be
reproduced in any form. Jets™, Vacuumarator™, Helivac™, VC™,
VO ™, CVS™ and Softsound™ are trademarks and/or registered
trademarks of Jets. © Jets AS. All rights reserved.

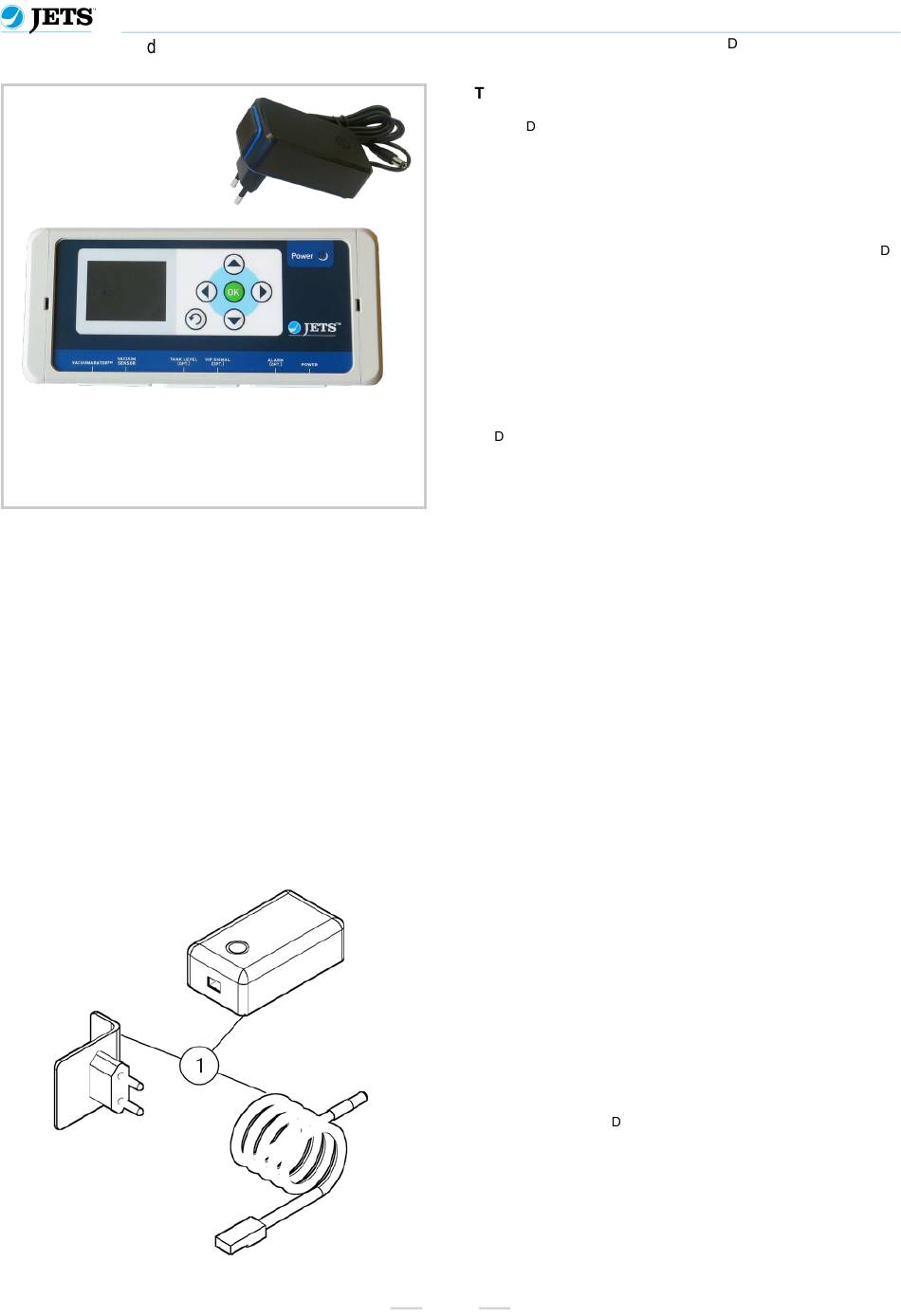

Components
1
|
Power Supply 12V C, complete ................................. 121201627*
Additional Components
|
US plug adapter ............................................................ 121201621
|
UK plug adapter ............................................................ 121201622
|
AUS plug adapter ......................................................... 121201623
1
Tel. +47 70 03 91 00
www.jetsgroup.com
oc. Rev.: 5 (2020-11-30)
190 x 80 x 60 mm (LxWxH)
100-240VAC
12-24V C
* Component/s avaliable as replacement parts.
ABS
0.67 kg
Advertisement
Summary of Contents for Jets 121315143
- Page 1 100-240VAC 12-24V C Disclaimer Note: Our products and services are offered and sold subject to Jets Vacuum AS’ General Sales Conditions, copies of which will be furnished upon request. Information provided herein is solely for information purposes, does not constitute any warranty or representation of any kind and is subject to change without notice.
- Page 2 VAC Controller CVS/VIP Tel. +47 70 03 91 00 www.jetsgroup.com oc. Rev.: 5 (2020-11-30) Pro uct No. 121315143 Function and Principle The VAC Controller is programmed to control the following: ● Automatic start and stop of a Vacuumarator™ pump. ● Manual start and stop of a Vacuumarator™ pump.
-
Page 3: Important Health And Safety Information
Goods to be protected against shock, dust, humidity and frost. Suitable adequately dimensioned transporting equipment is to be used. Note that the equipment may contain components that are easily damaged as a result of inappropriate handling. Jets Vacuum AS is not responsible for or liable for delivery delays resulting from occurrences outside of Jets Vacuum AS' immediate control. -
Page 4: Installation
VAC Controller CVS/VIP Tel. +47 70 03 91 00 www.jetsgroup.com oc. Rev.: 5 (2020-11-30) Pro uct No. 121315143 Installation Prior to Installation Before starting any work on the VAC Controller, ensure that the power has been disconnected. 3.2 Warning Never work on the equipment when mains power is applied. - Page 5 VAC Controller CVS/VIP Tel. +47 70 03 91 00 www.jetsgroup.com oc. Rev.: 5 (2020-11-30) Pro uct No. 121315143 Electrical Connections Diagram if VIP Presence Detectors are Installed Installation Steps Insert a screwdriver into both of the Lift the display out of the housing.
-
Page 6: Operation
VAC Controller CVS/VIP Tel. +47 70 03 91 00 www.jetsgroup.com oc. Rev.: 5 (2020-11-30) Pro uct No. 121315143 Operation Start-up Procedures First Start-up / Power-up the VAC Controller At first start-up, CVS (Auto Mode) and English language is set as default. All vacuum and alarm settings are pre-set. - Page 7 VAC Controller CVS/VIP Tel. +47 70 03 91 00 www.jetsgroup.com oc. Rev.: 5 (2020-11-30) Pro uct No. 121315143 urning the VAC Controller OFF From the main menu, press Auto and scroll down to System OFF. Press OK. Service and Maintenance Turn the VAC Controller Off and unplug the power supply.
- Page 8 Tel. +47 70 03 91 00 www.jetsgroup.com oc. Rev.: 5 (2020-11-30) Pro uct No. 121315143 Selecting Auto from the main menu screen will take you to the the Operations 1 menu. 1.1 - Auto Mode (CVS) Constant Vacuum System Controlled - Shows the current vacuum level.
- Page 9 VAC Controller CVS/VIP Tel. +47 70 03 91 00 www.jetsgroup.com oc. Rev.: 5 (2020-11-30) Pro uct No. 121315143 Main Menu 2 Settings ● Active Alarm 2.1 isplays the 'current" date and time and will list any active alarms in the system.
- Page 10 VAC Controller CVS/VIP Tel. +47 70 03 91 00 www.jetsgroup.com oc. Rev.: 5 (2020-11-30) Pro uct No. 121315143 ● Vacuum setting 2.4 2.4.1 - Start vacuum level efault: 30% Pump start level: 30-50% vacuum 2.4.2 - Stop vacuum level efault: 50%...
- Page 11 VAC Controller CVS/VIP Tel. +47 70 03 91 00 www.jetsgroup.com oc. Rev.: 5 (2020-11-30) Pro uct No. 121315143 2.6.5 - Pump start-up count The total number of times the pump has started. This is a read out only and cannot be reset.
- Page 12 To restore the controller back to the factory settings. ___________________________________________________________________________________________________________________ roubleshooting Jets Vacuum AS provides the following troubleshooting information to assist in resolving issues that may arise with your installation. For more detailed information or assistance, please contact Jets Vacuum AS. Problem Cause...
