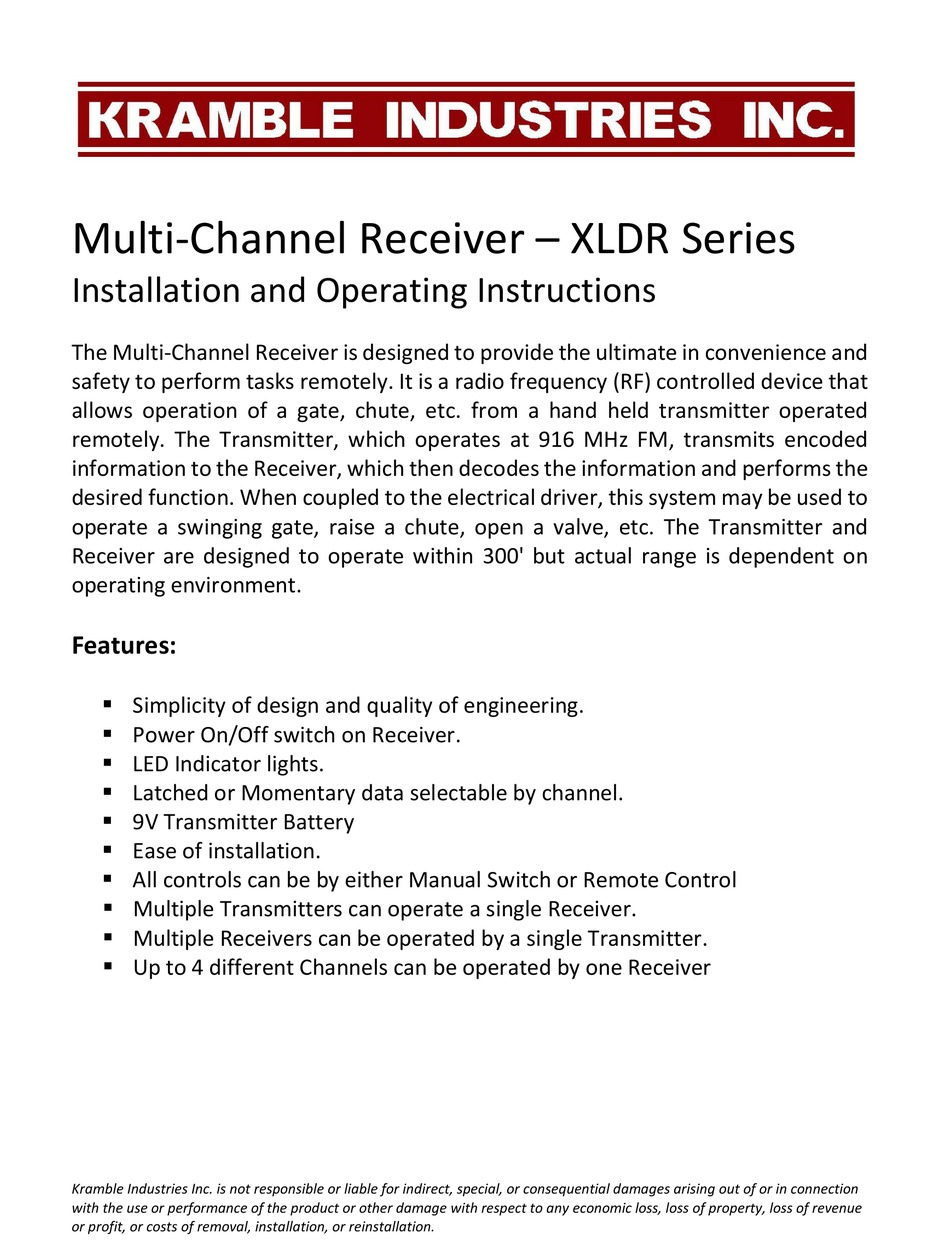

Multi-Channel Receiver – XLDR Series
Installation and Operating Instructions
The Multi-Channel Receiver is designed to provide the ultimate in convenience and
safety to perform tasks remotely. It is a radio frequency (RF) controlled device that
allows operation of a gate, chute, etc. from a hand held transmitter operated
remotely. The Transmitter, which operates at 916 MHz FM, transmits encoded
information to the Receiver, which then decodes the information and performs the
desired function. When coupled to the electrical driver, this system may be used to
operate a swinging gate, raise a chute, open a valve, etc. The Transmitter and
Receiver are designed to operate within 300' but actual range is dependent on
operating environment.
Features:
 Simplicity of design and quality of engineering.
 Power On/Off switch on Receiver.
 LED Indicator lights.
 Latched or Momentary data selectable by channel.
 9V Transmitter Battery
 Ease of installation.
 All controls can be by either Manual Switch or Remote Control
 Multiple Transmitters can operate a single Receiver.
 Multiple Receivers can be operated by a single Transmitter.
 Up to 4 different Channels can be operated by one Receiver
Kramble Industries Inc. is not responsible or liable for indirect, special, or consequential damages arising out of or in connection
with the use or performance of the product or other damage with respect to any economic loss, loss of property, loss of revenue
or profit, or costs of removal, installation, or reinstallation.
