Summary of Contents for Eiki Language Master LM-2

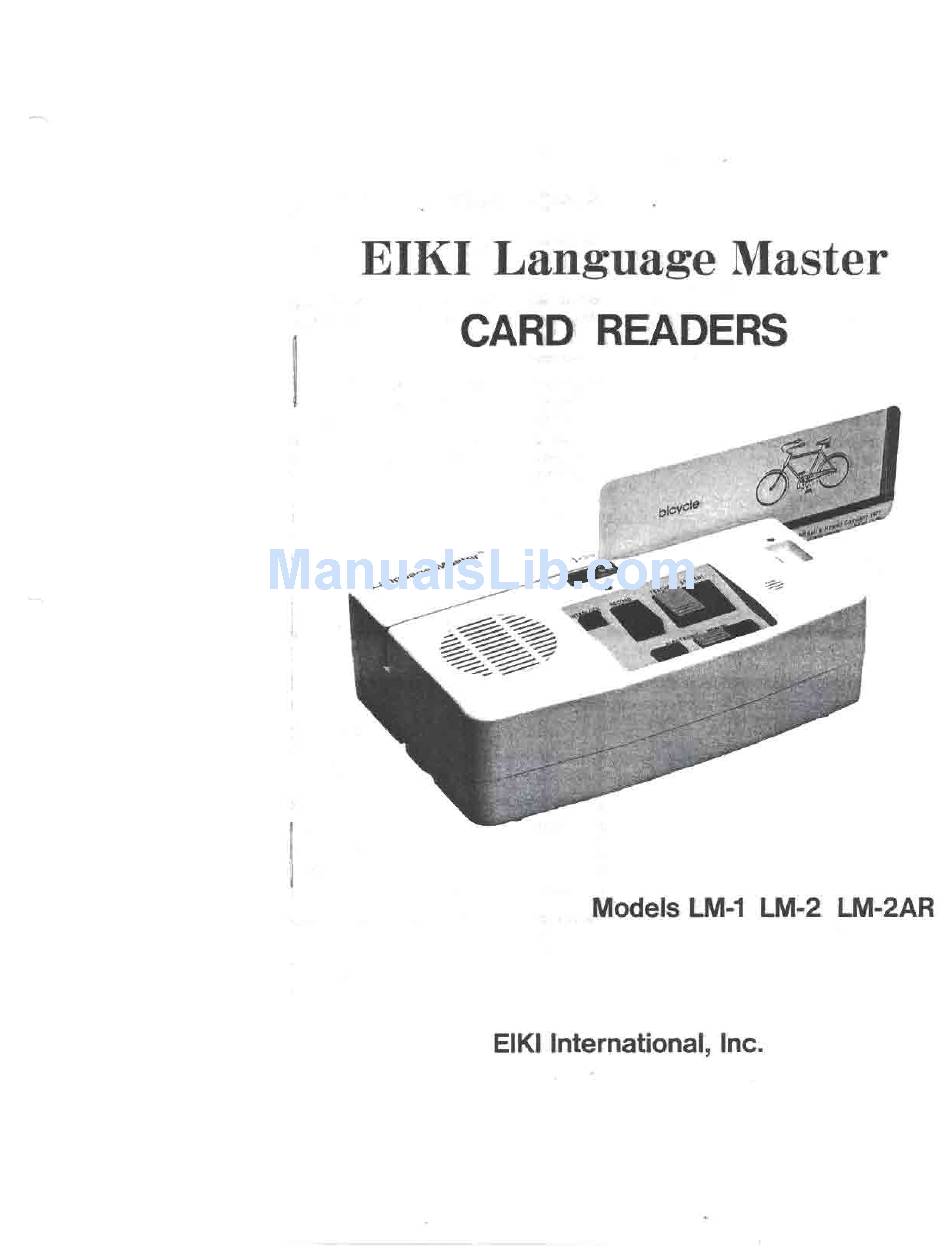

- Page 1 EIKI Language Master CARD READERS Models LM-1 LM-2 LM-2AR EIKI International, Inc.
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS When using this equipment, basic safety precautions should always be followed, including the following: 1. Read and understand all instructions before using equipment. 2. Do not operate equipment with a damaged cord or if the equipment has been dropped or damaged, until it has been examined by a qualified serviceman. -
Page 3: Table Of Contents
TABLE OF CONTENTS FEATURES DESCRIPTION AND FUNCTIONS SPECIFICATIONS LISTENING TO THE TEACHER/STUDENT TRACK RECORDING ON THE STUDENT TRACK RECORDING ON THE TEACHER TRACK INTERNAL ELECTRONIC MEMORY RECORD/REPEAT (Model LM-2AR Only) OPTIONAL ACCESSORIES CARE AND CLEANING WARRANTY FEATURES: This versatile instructional device allows each student to learn independently at his or her own pace. - Page 4 LANGUAGE MASTER CARD READER MODEL LM-2 J ..
-
Page 5: Description And Functions
DESCRIPTION AND FUNCTIONS CARRYING HANDLE: Convenient handle for transporting the unit. CARD START POSITION' SOUND LEVEL INDICATOR: When recording, the red L.E.D. flashes with the level of the voice. CARD SLOT: Card is inserted from right to left until the card reader is activated. ON/OFF INDICATOR: Green L.E.D. -
Page 6: Mode.l Lm-2Ar Only
LANGUAGE MASTER CARD READER MODE.L LM-2AR ONLY @ ELECTRONIC MEMORY RECORD BUTTON: @ ELECTRONIC MEMORY STUDENT BUTTON: @ ELECTRONIC MEMORY TEACHER BUTTON: NOTE: The internal memories will be stored until the unit is switched off. LANGUAGE MASTER CARD READER MODEL LM-10NLY @ BATTERY CHECK SWITCH: Used to test battery condition in LM-t @ BATTERY CHECK INDICATOR'... - Page 7 LANGUAGE MASTER CARD READER MODEL LM-2AR LANGUAGE MASTER CARD READER MODEL...
-
Page 8: Specifications
AMPLIFIERPOWER: 1watt R.M.S. MICROPHONE: Internal. MICROPHONEJACKS: 1/4" phone and 3.5mm HEADSETJACKS: 1/4" phone and 3.5 mm DIMENSIONS: 11.03"x8.28"x 3.35'; 280 wire power cord (LM-2 & LM2-AR). 6 volts DC "C" cell (1.5V) x4 (LM-1only). SPEED: 2 1/4 ips (57mm/sec) no- rmal speed. -
Page 9: Listening To The Teacher/Student Track
40391 may also be used. @Switch "ON"the volume control swit- ch (6), unit is ready to use when the green indicator is on (LM-2&LM-2AR) (5).On model LM-1the green indicator is used to test battery condition and willnot come on with the volume con- trol switch. -
Page 10: Recording On The Student Track
@The record message may be reviewed by depressing the electronic memory student button (21) (Model LM-2AR only), or reinserting the card. The recording length may be ex- tended by switching to half speed (Model LM-2 & LM-2AR only) (9). (19). -
Page 11: Recording On The Teacher Track
(22) (Model LM-2AR only), or re-inserting the card. @After completing the recording, lock the erase protection pin (16)to prevent unwanted erasures of the teacher track. The recording length may be extended by switching to half speed (LM-2 & LM-2AR only) (9). -
Page 12: Internal Electronic Memory Record/Repeat
INTERNAL ELECTRONIC MEMORY / REPEAT RECORD (MODEL LM-2AR ONLY) ""-"'1 @Depressing the electronic memory re- cord button (20) while speaking into the microphone will record up to 8 seconds of information in to the stu- dent memory. WTo repeat the recorded message mo- mentarily press the electronic memory student button (21). -
Page 13: Optional Accessories
OPTIONAL ACCESSORIES Headphones with Boom Microphone: (PN: 707849) -\> Monaural 400-600 ohm impeance headphones 50-1,000 Hz Frequency response. Adjustable headband, washable ear cushions. 1/4" phone plug 5' (1.5m) cable. Dynamic noise cancelling microphone with frequency respon~e of 300-8,000 Hz. Headphones: (PN: 715735) Monaural with excellenty sound quality. -
Page 14: Care And Cleaning
A cleaning card may be obtained by ordering part number 072722. Proper maintenance will add many hours of quality per- formance to your EIKI Language Master Card Reader. In the event additional service is required, contact your nearest EIKI Audio Visual Products Dealer,or Service station. -
Page 15: Limited 1 Year Warranty
Corporation warrants this product when sold to the original purchaser from an authorized EIKI dealer, to be free from defective materials and workmanship for a period of 1year. EIKI agrees to repair any defect or furnish a new or equal part through an authorized EIKI Service Dealer or Station without charge within this period. - Page 16 AudioVisual/Video P roducts , 12.3.00c...
