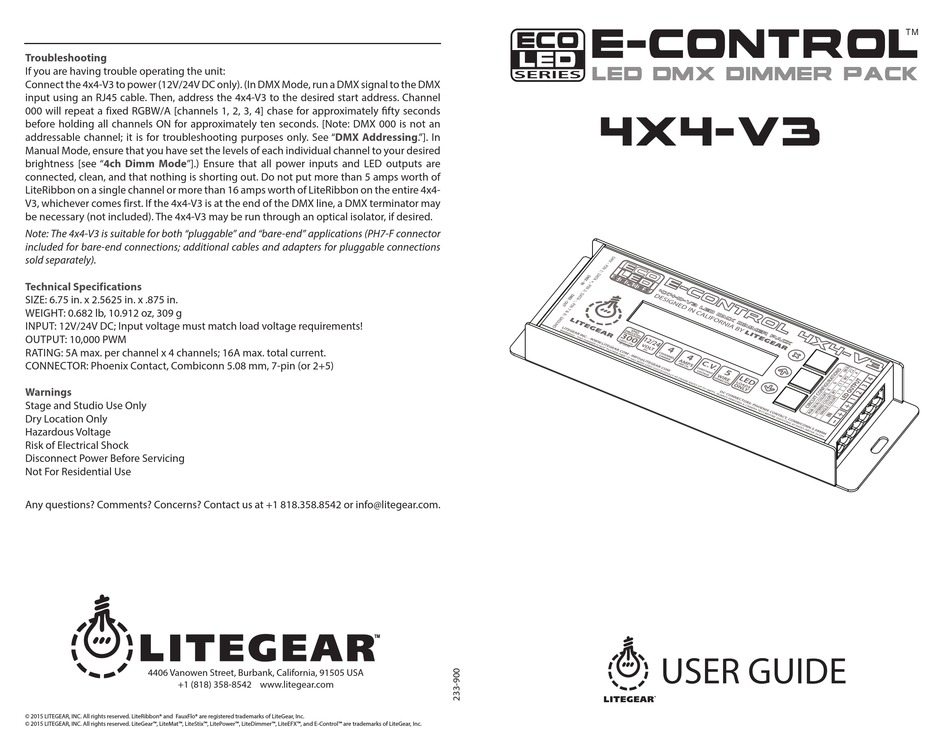

LiteGear E-Control ECO LED Series User Manual

TM
e-control
eco
Troubleshooting LED
If you are having trouble operating the unit:
led dmx dimmer pack
SERIES
Connect the 4x4-V3 to power (12V/24V DC only). (In DMX Mode, run a DMX signal to the DMX
input using an RJ45 cable. Then, address the 4x4-V3 to the desired start address. Channel
000 will repeat a fixed RGBW/A [channels 1, 2, 3, 4] chase for approximately fi fty seconds
$x$-v#
before holding all channels ON for approximately ten seconds. [Note: DMX 000 is not an
addressable channel; it is for troubleshooting purposes only. See "DMX Addressing. " ]. In
Manual Mode, ensure that you have set the levels of each individual channel to your desired
"4ch Dimm Mode"].) Ensure that all power inputs and LED outputs are
brightness [see
connected, clean, and that nothing is shorting out. Do not put more than 5 amps worth of
LiteRibbon on a single channel or more than 16 amps worth of LiteRibbon on the entire 4x4-
V3, whichever comes first. If the 4x4-V3 is at the end of the DMX line, a DMX terminator may
be necessary (not included). The 4x4-V3 may be run through an optical isolator, if desired.
Note: The 4x4-V3 is suitable for both "pluggable" and "bare-end" applications (PH7-F connector
included for bare-end connections; additional cables and adapters for pluggable connections
sold separately).
Technical Specifications
SIZE: 6.75 in. x 2.5625 in. x .875 in.
WEIGHT: 0.682 lb, 10.912 oz, 309 g
INPUT: 12V/24V DC; Input voltage must match load voltage requirements!
OUTPUT: 10,000 PWM
RATING: 5A max. per channel x 4 channels; 16A max. total current.
CONNECTOR: Phoenix Contact, Combiconn 5.08 mm, 7-pin (or 2+5)
Warnings
Stage and Studio Use Only
Dry Location Only
Hazardous Voltage
Risk of Electrical Shock
Disconnect Power Before Servicing
Not For Residential Use
Any questions? Comments? Concerns? Contact us at +1 818.358.8542 or info@litegear.com.
USER GUIDE
4406 Vanowen Street, Burbank, California, 91505 USA
+1 (818) 358-8542 www.litegear.com
© 2015 LITEGEAR, INC. All rights reserved. LiteRibbon® and FauxFlo® are registered trademarks of LiteGear, Inc.
© 2015 LITEGEAR, INC. All rights reserved. LiteGear™, LiteMat™, LiteStix™, LitePower™, LiteDimmer™, LiteEFX™, and E-Control™ are trademarks of LiteGear, Inc.
