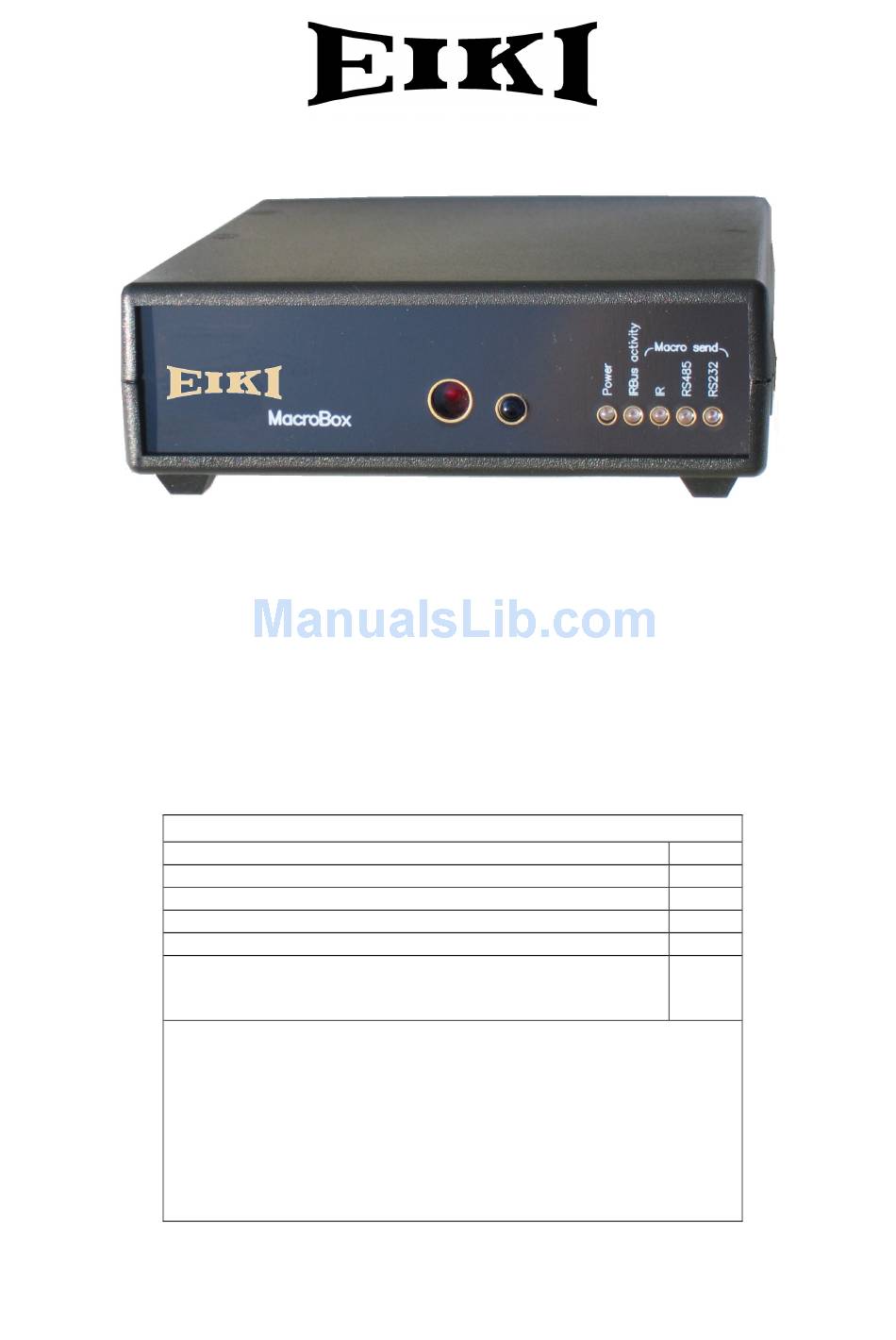

Instruction Manual
Item
Macro Box
3 way terminal plug
IR emitter
Programming cable
Software CD-ROM
The latest software is also available for download at:
Please note:
Because its function can be shared with other equipment in a
system, a DC power supply is not included.
For standalone use, the power supply you use should be
capable of supplying 9 to 16 volts DC at 50mA.
Caution!
Applying in excess of 16 volts will damage the A-5
Eiki A-5
Macro Box

Package contents

www.eiki.com
Qty.
1
3
2
1
1
