Summary of Contents for Smart Park CCS-562

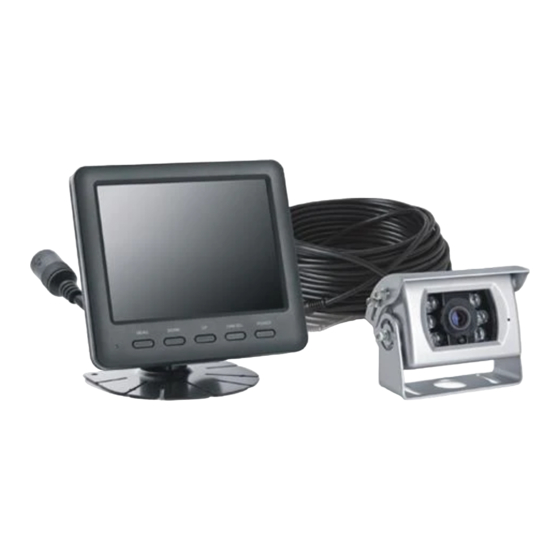

- Page 1 CCS-562 CCS-702 Installation and Operating manual Version 562.2/702.2...
-
Page 2: Required Tools
Introduction Thank you for purchasing/installing a Smart Park™ commercial camera system. These instructions are intended for use by an authorized Smart Park™ installer. Modifications, manipulation or improper repairs to this product can affect the operability and safety. Modifying this product in any way or using this product for anything other than it’s intended use may invalidate the product warranty. -
Page 3: Wiring Diagram
3. Wiring Diagram 4. Camera Installation 4.1 Attach the camera mounting bracket to the vehicle. 4.2 Mount the camera on the mounting bracket, adjust the angle to suit and fasten the screws firmly. 4.3 Install the wiring harness with accesory and reverse power as per the wiring diagram. -
Page 4: Lcd Monitor Installation
5. LCD Monitor Installation •、 Install the monitor on a surface which will support more than 4 Kg (9Lbs) of weight •、 Install the monitor away from a speaker mounted in the vehicle so the picture is not distorted by the speaker’s magnetic field. •、... - Page 5 6. System Connection 7. Attach the Smart Park sticker to the window. Installation is now complete...
- Page 6 OPERATING INSTRUCTIONS The reverse camera system will automatically activate whenever the vehicle is placed in reverse gear. The POWER button can be used to manually turn the monitor on or off at any time. NOTE: Your camera must have power or no image will be seen. Some vehicles will only have power to the camera when in reverse.
-
Page 7: Specifications
SPECIFICATIONS MONITOR LCD Profile Wide-Screen Ratio° 5.6” Inch 7” Inch 16:9 View Angle (U/D/L/R) (CR>10) 50/70/70/70 Brightness (cd/m2) Contrast Ratio 500:1 Response Time (ms) (at 25°) Power Requirements DC 12v~24v Power Consumption Operating Temperature Range -30 ~ +85、 Storage Temperature Range -30 ~ +85、... - Page 8 www.smartpark.net For our full range of driver assistance and safety products: Reversing Sensors LCD Mirror LCD4WM Monitors Commercial Factory Display Passenger Vehicle Camera Systems Camera Integration Units iConnect™ iPod GM Bracket HitchView Bumper integration Camera Camera...
