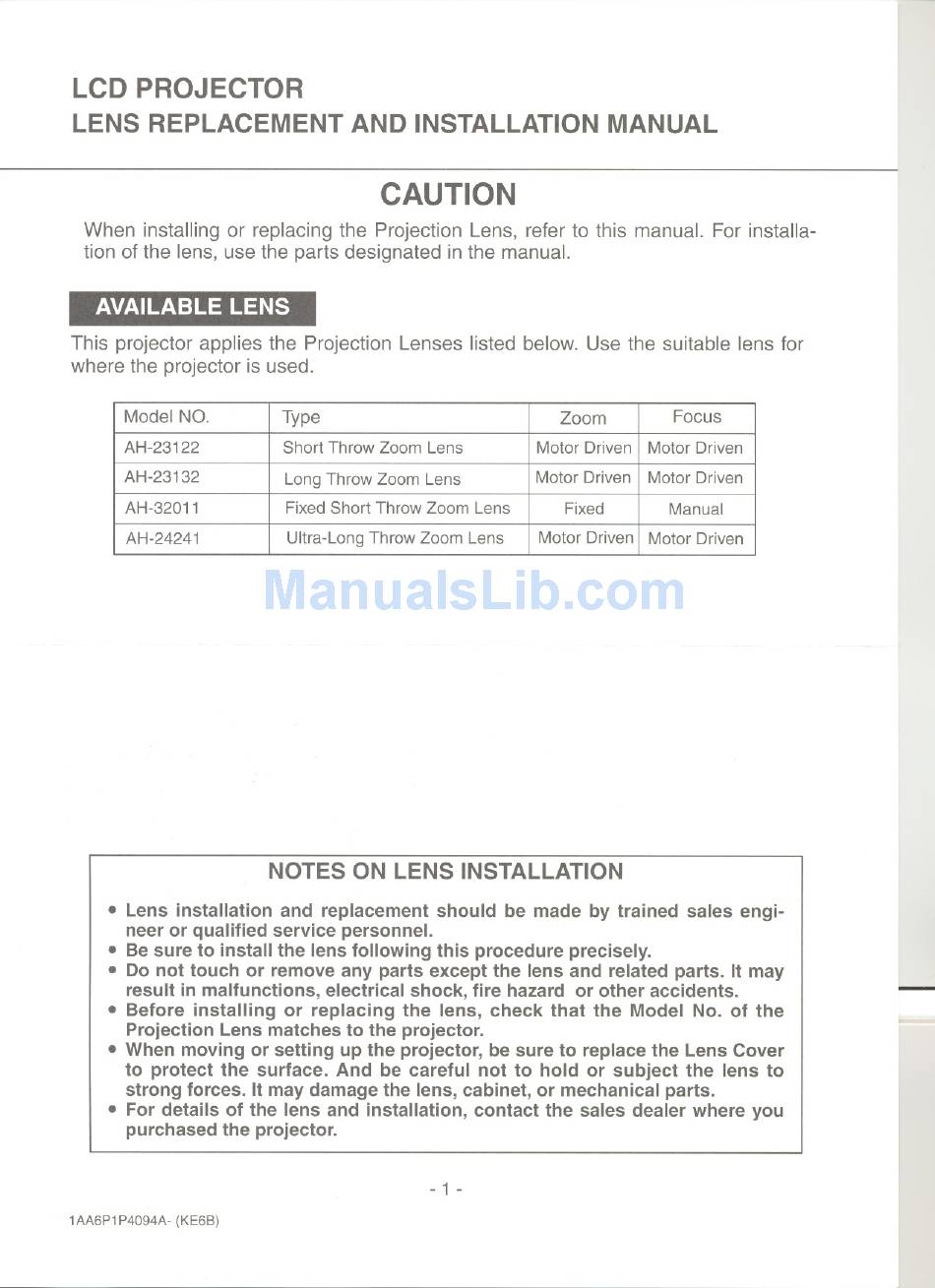

Eiki LC-X71 Installation Manual

LCD PROJECTOR
lENS REPLACEMENTAND INSTAllATION MANUAL
CAUTION
When installing or replacing the Projection Lens, refer to this manual. For installa-
tion of the lens, use the parts designated in the manual.
AVAilABLE lENS
This projector applies the Projection Lenses listed below. Use the suitable lens for
where the projector is used.
NOTES ON LENS INSTAllATION
·
Lens installation and replacement should be made by trained sales engi-
neer or qualified service personnel.
·
Be sure to install the lens following this procedure precisely.
·
Do not touch or remove any parts except the lens and related parts. It may
result in malfunctions, electrical shock, fire hazard or other accidents.
·
Before installing or replacing the lens, check that the Model No. of the
Projection Lens matches to the projector.
·
When moving or setting up the projector, be sure to replace the Lens Cover
to protect the surface. And be careful not to hold or subject the lens to
strong forces. It may damage the lens, cabinet, or mechanical parts.
·
For details of the lens and installation, contact the sales dealer where you
purchased the projector.
- 1 -
1AA6P1 P4094A- (KE6B)
Model NO.
Type
Zoom
Focus
AH-23122
Short Throw Zoom Lens Motor Driven Motor Driven
AH-23132
Long Throw Zoom Lens
Motor Driven Motor Driven
AH-32011 Fixed Short Throw Zoom Lens Fixed
Manual
AH-24241
Ultra-Long Throw Zoom Lens
Motor Driven Motor Driven
