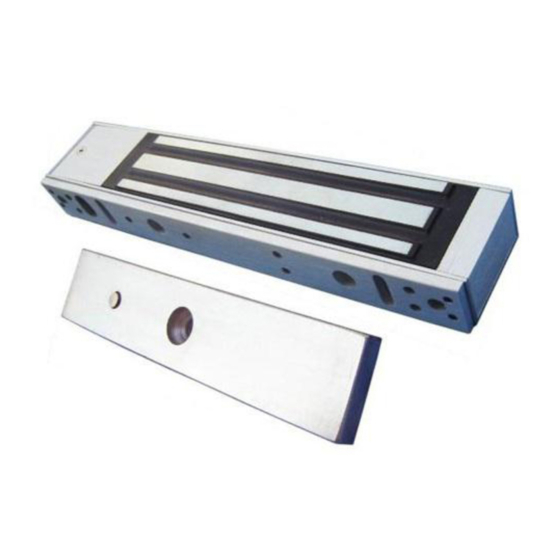

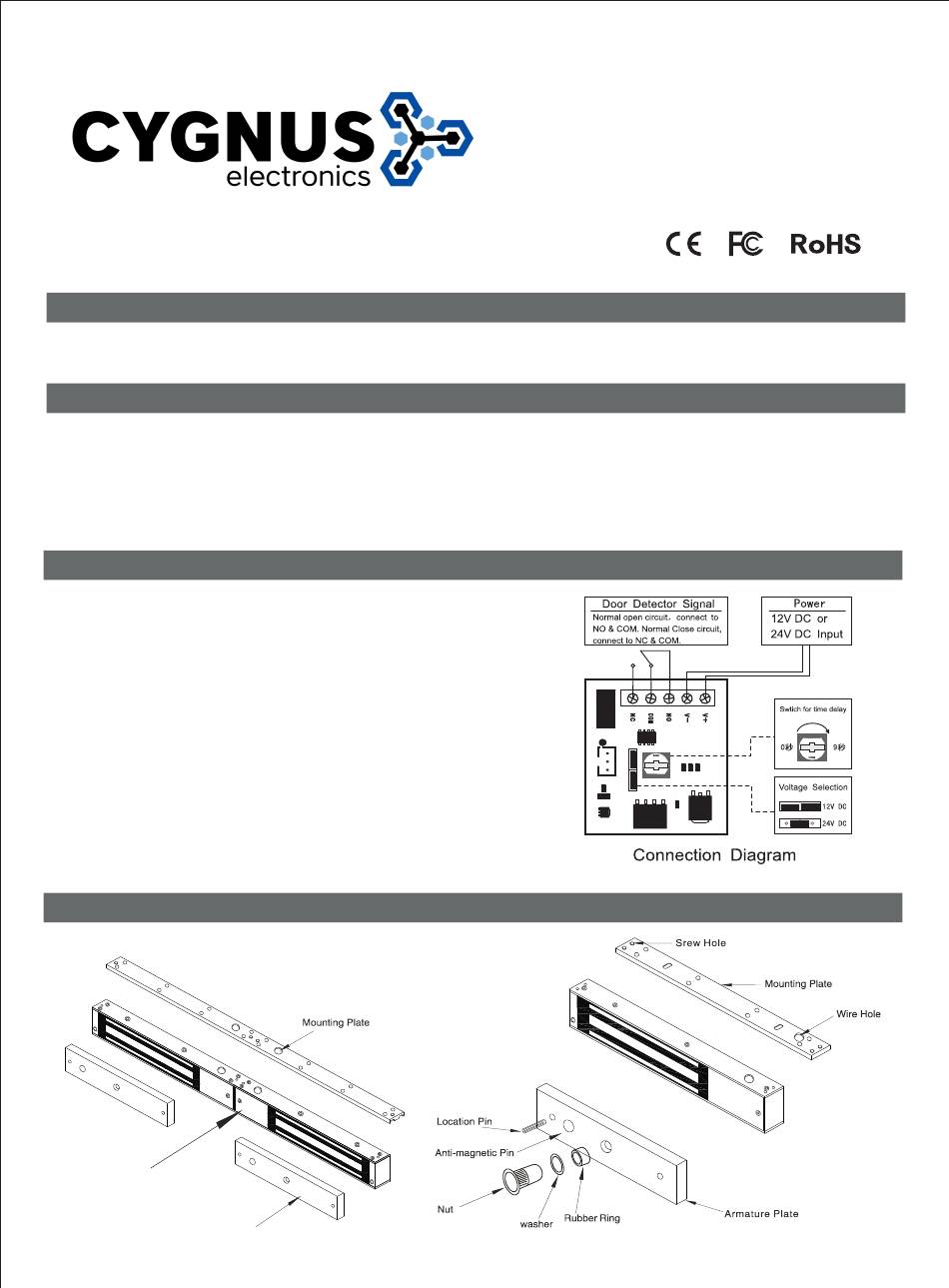

Cygnus electronics EL-280 User Manual

Electromagnetic lock
Hide thumbs
1
2

Advertisement

Table of Contents

Read the manual before usage and keep for future reference.

1. Application Range

1. Door Types: Wooden door, Glass door, Metal door, Fireproof door.
2. Control Mode: Building intercom system, Access control system.

2. Note

1. Using powerful power supply, output voltage should be DC12V±10%,cable ＞0.75mm.
2. Don' hurt the galvanization layer during the installation.
3. Ensure the mounting plate well attach to the lock body.
4. The rubber ring must be added between armature plate and door leaf, don't fasten the screw tightly, keep the rubber ring elastic.
5. Don't welded the mounting plate to the door, or will effect the lock.
6. Clean the slushing oil with cloth, don't use alkaline or pungent cleaner.

3. Wiring of Lock

1．12V-DC input:
Positive pole of 12V-DC connect to the terminal marked with "+"
Negative pole of 12V-DC connect to the terminal marked with "-"
Ensure the Voltage Selector is switched to 12V-DC.
2．24V-DC input:
Positive pole of 24V-DC connect to the terminal marked with "+"
Negative pole of 24V-DC connect to the terminal marked with "-"
Ensure the Voltage Selector is switched to 24V-DC.
3．Wiring of Door-State Detector
The overload current of relay contact is 1amp. when the input is 24V-
DC, overload is strictly prohibited. Connect the normal-open circuit to
the COM and NC for getting switch-over signal. But connect the normal-
close circuit to the COM and NO for getting switch-over signal.
Note: Please use the 12V-DC input if the lock has not special annotate.
The overload voltage will damage the lock.

4. Main Components Diagram

Lock body
Armature Plate
Electromagnetic Lock
User Manual
EL-280

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EL-280 and is the answer not in the manual?

Questions and answers

Summary of Contents for Cygnus electronics EL-280

  • Page 1 Electromagnetic Lock User Manual EL-280 Read the manual before usage and keep for future reference. 1. Application Range 1. Door Types: Wooden door, Glass door, Metal door, Fireproof door. 2. Control Mode: Building intercom system, Access control system. 2. Note 1.
  • Page 2 5. Disassemble Procedure 6. Standard Mounting Method 1．Use the supplied template to determine the correct location and size of mounting holes for both the door and frame header. Ensure that the door opens away from the Maglock. In the case of a single door, the Maglock is positioned as close as possible to the vertical section of the door jamb.Drill door and frame as indicated.
