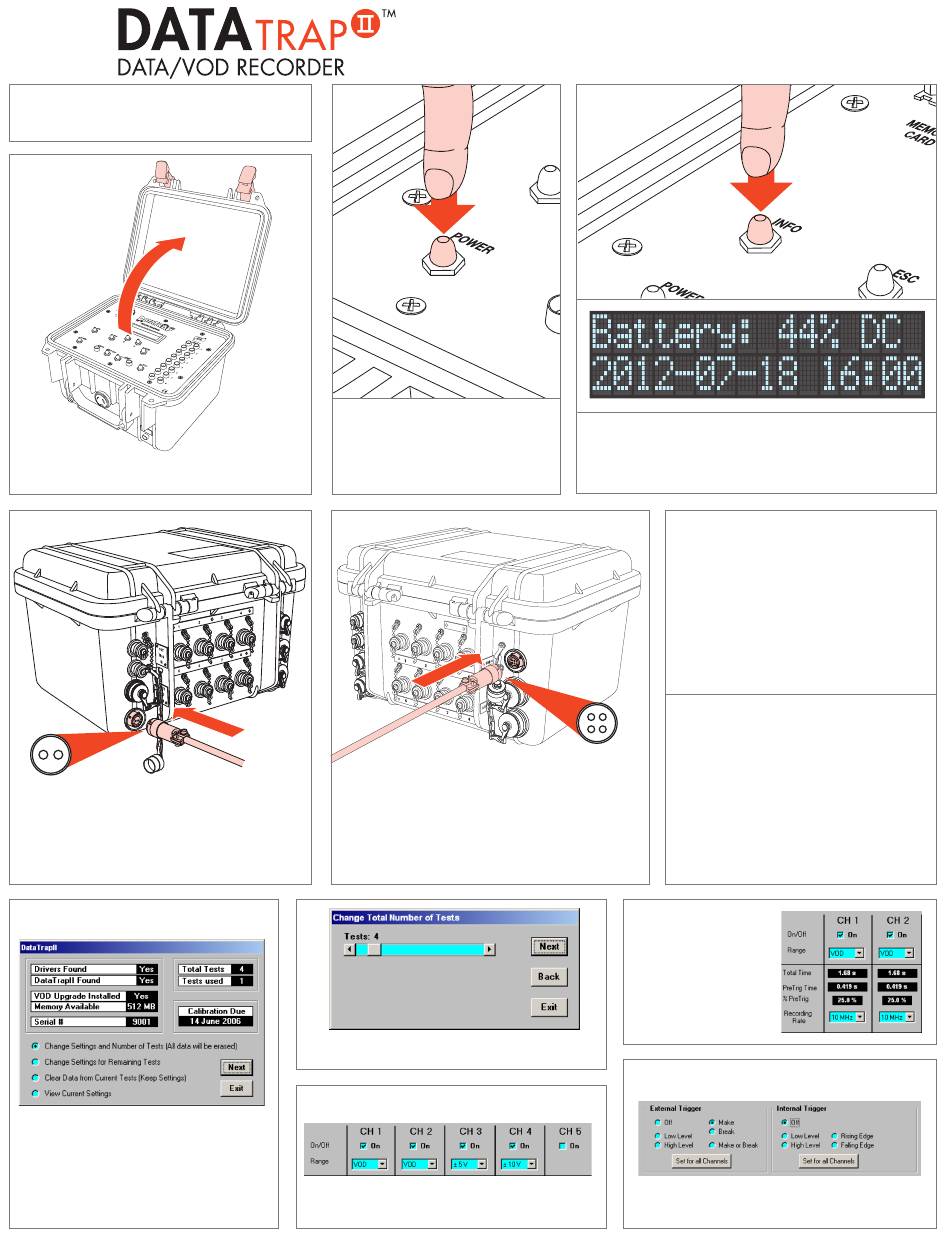

MREL DATATRAP II Quick Start Manual

1
INSTALL THE DATATRAP II™ SOFTWARE
ON THE COMPUTER.
A
2
B
A: UNLOCK THE LATCHES.
B: OPEN THE DATATRAP II™.
5
TURN OFF THE DATATRAP II™ BY PRESSING
THE POWER BUTTON AND THEN CONNECT
THE BATTERY CHARGER TO THE DC IN PORT.
THE DISPLAY ON THE DATATRAP II™ WILL
DISPLAY CHARGING.
9
PROGRAM THE DATATRAP II™ BY
SELECTING CHANGE SETTINGS AND
NUMBER OF TESTS OPTION AND
CLICKING NEXT.
3
A
TURN ON THE DATATRAP II™ BY
PRESSING THE POWER BUTTON
FOR 2 SECONDS. THE LED
SCREEN WILL TURN ON AND THE
STATUS LIGHT WILL FLASH.
6
WITH THE DATATRAP II™ POWERED ON,
CONNECT THE USB COMMUNICATIONS CABLE
TO THE DATATRAP II™. THEN CONNECT THE
OTHER END OF THE USB COMMUNICATIONS
CABLE TO THE PC WHERE THE SOFTWARE WAS
INSTALLED.
10
CHOOSE THE TOTAL NUMBER OF TESTS
MORE TESTS = LESS TIME PER TEST
11
CHOOSE THE NUMBER OF CHANNELS YOU
REQUIRE BY TURNING THEM OFF OR ON.
QUICK START GUIDE
PRESS THE INFO BUTTON AND THE DISPLAY WILL
SHOW THE BATTERY LEVEL REMAINING AS SHOWN
ABOVE. IF THE BATTERY NEEDS CHARGING, PLEASE
SEE STEP 5, ELSE GO TO STEP 6.
7
INSTALL USB DRIVERS FOR THE
DATATRAP II™ FROM
MyDocuments/MREL/DataTrapII/driver
FOR MORE HELP, GO TO
www.mrel.ca/usb/dt2
8
START THE SOFTWARE FROM
START / PROGRAMS / MREL / DATATRAPII
AND CLICK ON
PROGRAM DATATRAPII
12
SET THE
RECORDING RATE
FOR EACH CHANNEL.
13
SET THE TRIGGER TYPE FOR EACH CHANNEL.
WHEN ALL CHANNELS ARE SET, PRESS NEXT.
4
