Summary of Contents for EGig eG1000T32-B

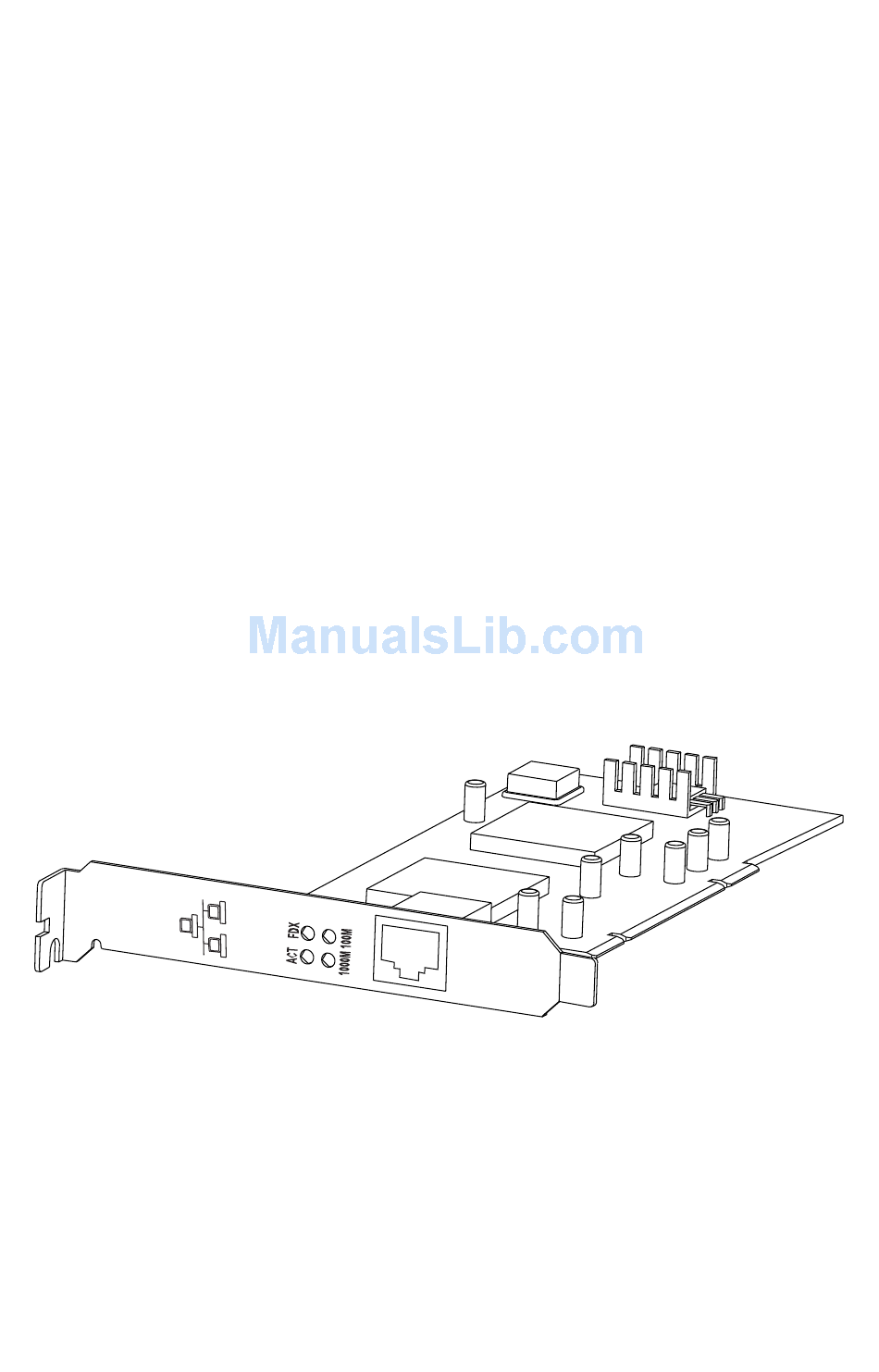

- Page 1 10/100/1000Mbps Gigabit Fast Ethernet Adapter User's Manual...
-
Page 2: Ce Mark Warning
FCC Warning This device has been tested and found to comply with limits for a Class B digital device, pursuant to Part 2 and Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 3: Table Of Contents
Table Of Contents Chapter 1...1 Introduction...1 Key Features...3 Chapter 2...4 Package Contents...4 Chapter 3...5 Installation...5 Hardware Installation...5 Driver Installation...5 Chapter 4...6 LED Definitions...6 FDX...6 100M...6 1000M...6 ACT...6 Chapter 5...7 Technical Specifications...7... -
Page 4: Chapter 1
Chapter 1 10/100/1000Mbps Gigabit Fast Ethernet Adapter Introduction The Gigabit network adapter complies to 32/64 bit PCI specification and supports half/full duplex feature which can double network speed. This adapter supports 1000Mbps (Gigabit), 100Mbps 10Mbps network speed, 1000BASE- T operates on all four pairs of category 5 UTP cable, 100BASE-TX operates on two pairs of category 5 UTP cable and 10BASE-T operates on Category 3,4,5 UTP cable. - Page 5 This adapter supplies many drivers including NDIS 4,5 driver for Microsoft Windows 98, Me, NT, 2000, Unix/Linux, and Netware Server 4/5. Whatever your requirements are ease of installation, superior performance or responsive support backed up by unlimited technical support, this adapter is the superior choice.
-
Page 6: Key Features
Key Features Supports 64/32-bit, 66/33MHz PCI Bus Master for high performance Full duplex design to double the performance to 20Mbps/200Mbps/2000Mbps One STP connector for 1000Mbps, 100Mbps or 10Mbps network speed Support Auto-negotiation function Auto-setups IRQ and I/O address Supports Virtual LAN (VLAN) and long frame (1536Bytes) Supports 802.1D and 802.1Q priority queuing Net System: NDIS 4,5 driver for Microsoft... -
Page 7: Chapter 2
Chapter 2 Package Contents Before you start to install the Gigabit Fast Ethernet Adapter, please verify your package that contains the following items: One 10/100/1000Mbps Gigabit Fast Ethernet Adapter One User's Manual One Floppy Disk Adapter Disk Note: If any of these items is found missing or damaged, please contact your local supplier for replacement 10/100/1000Mbps... -
Page 8: Chapter 3
Chapter 3 Installation If you experience any problems with the adapter, first please make sure the appropriate driver is loaded, the proper cable is connected to the adapter port and the Hub/Switch complies with the adapter specification, such as 10Mbps 10BASE-T, then 100Mbps 100BASE-TX and 1000Mbps 1000BASE-T, then check the LED. -
Page 9: Chapter 4
Chapter 4 The adapter provides three LEDs to indicate network status. LED Definitions :The port is operating at Full-duplex. :The port is operating at Half-duplex. 100M :100Mbps UTP port link ok. :100Mbps UTP port has not been connected 1000M :1000Mbps UTP port link ok. :1000Mbps UTP port has not been connected or link is not ok. -
Page 10: Chapter 5
Chapter 5 Technical Specifications Standard: -IEEE 802.3 10BASE-T; IEEE 802.3u 100BASE- TX; IEEE 802.3ab 1000BASE-T Connector - RJ-45 Architecture - PCI 2.1/2.2 (6/33MHz) 32bit & 64bit Transmission Rate -10/100/1000Mbps Topology - Star Protocol -CSMA/CD Network Transmission Media -10BASE-T Cat. 3, 4, 5 UTP/STP -100BASE-TX Cat. - Page 11 Humidity - 10% ~90% RH (Non-condensing) Dimension (L X D) - 163.2mm X 70.0mm Weight - 0.095Kg Safety & EMI Certificates - CE & FCC-B...
- Page 12 DOC-UMWN1003N01...
