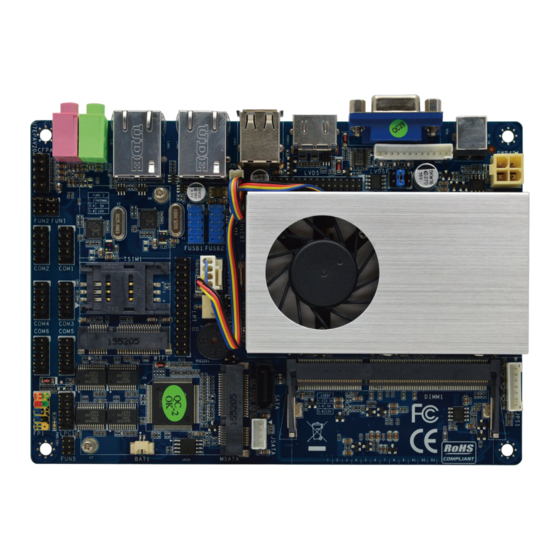

ZA-1037M2L Motherboard
User Manual
Support Intel 1037U/3317U/3217U Processor
®

Advertisement

loading
Need help?

Need help?

Do you have a question about the Zeal-All ZA-1037M2L and is the answer not in the manual?

Questions and answers

Related Manuals for Shenzhen Zeal-All ZA-1037M2L

Summary of Contents for Shenzhen Zeal-All ZA-1037M2L

  • Page 1 ZA-1037M2L Motherboard User Manual Support Intel 1037U/3317U/3217U Processor ®...
  • Page 2 ZA-1037M2L Motherboard Diagram...

  • Page 3: Motherboard Specification

    Motherboard Specification Size 165mm x 115mm Support Intel 1037U/3317U/3217U Processor Graphics Intel HD Graphics Chipset 1037u/3217u/3317u Memory 1*DDR3 1066/1333/1600 MHz, Up to 8 GB 2* GroupUSB 2.0 Pin,suport 4* USB ports 1* CPU Fan And SYS Fan 1*LVDS Pin (support dual Channel 10 Bit) 1* SATA Internal I/O 6* COM Ports Pin...
  • Page 4 Motherboard I/O Interface Diagram FUN5 DDR3 SATA JSATA MSATA JPS1 LPC1 WIFI COM1-6 TSIM1 CPUFAN FUSB1-2 FUN1-2 CFPA VGA2 LVDSP LVDS USB2.0 LAN1 LAN2 Mic-in/Line-out DC_IN HDM1...
  • Page 5 SYSFAN CPUFAN Note: these fan connectors are not jumpers, and the jumper cap is placed above the head. Installation memory: 1. Please turn off the power before installing or removing the memory, and dial down the AC power cord. 2. Carefully hold both ends of the memory stick, and do not touch the metal contact above.
  • Page 6 Define Define Define Define VGA_VSYNC VGA_HSYNC VGA_RED VGA_GRN VGA_BULE DDC_DATA DDC_CLK FUSB1 Define Define FUSB1-2 DATA 0- DATA1- DATA0+ DATA1+ NC(CUT) Define Define 12/19VDC DC_J DC_IN...
  • Page 7 PIN 1-2 Close: PIN 3-4 Close: PIN 5-6 Close: Define Define LCDVDD LCDVDD LCDVDD LVDSA_DATA0N LVDSA_DATA0P LVDSA_DATA1N LVDSA_DATA1P LVDS1 LVDSA_DATA2N LVDSA_DATA2P LVDSA_CLKN LVDSA_CLKP LVDSA_DATA3N LVDSA_DATA3P LVDSB_TX0N LVDSB_TX0P LVDSB_TX1N LVDSB_TX1P LVDSB_TX2N LVDSB_TX2P LVDSB_CLKN LVDSB_CLKP LVDSB_TX3N LVDSB_TX3P Define Define HDD LED+ PWR LED+ HDD LED- P_SWIN RESET_GND...
  • Page 8 TMDS data 0+ TMDS data shield TMDS data 0- TMDS clock+ TMDS clock shield TMDS clock- No connectde DDC clock DDC data Groud +5V power Hot plug detect *Other Matters Please consult the sales. ShenZhen Zeal-All Technology Co.,Ltd www.zeal-all.com +86-0755-86959086...
