Fire Table
CO9011
INSTRUCTION MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the CO9011 and is the answer not in the manual?

Questions and answers

Related Manuals for Crosley Furniture CO9011

Summary of Contents for Crosley Furniture CO9011

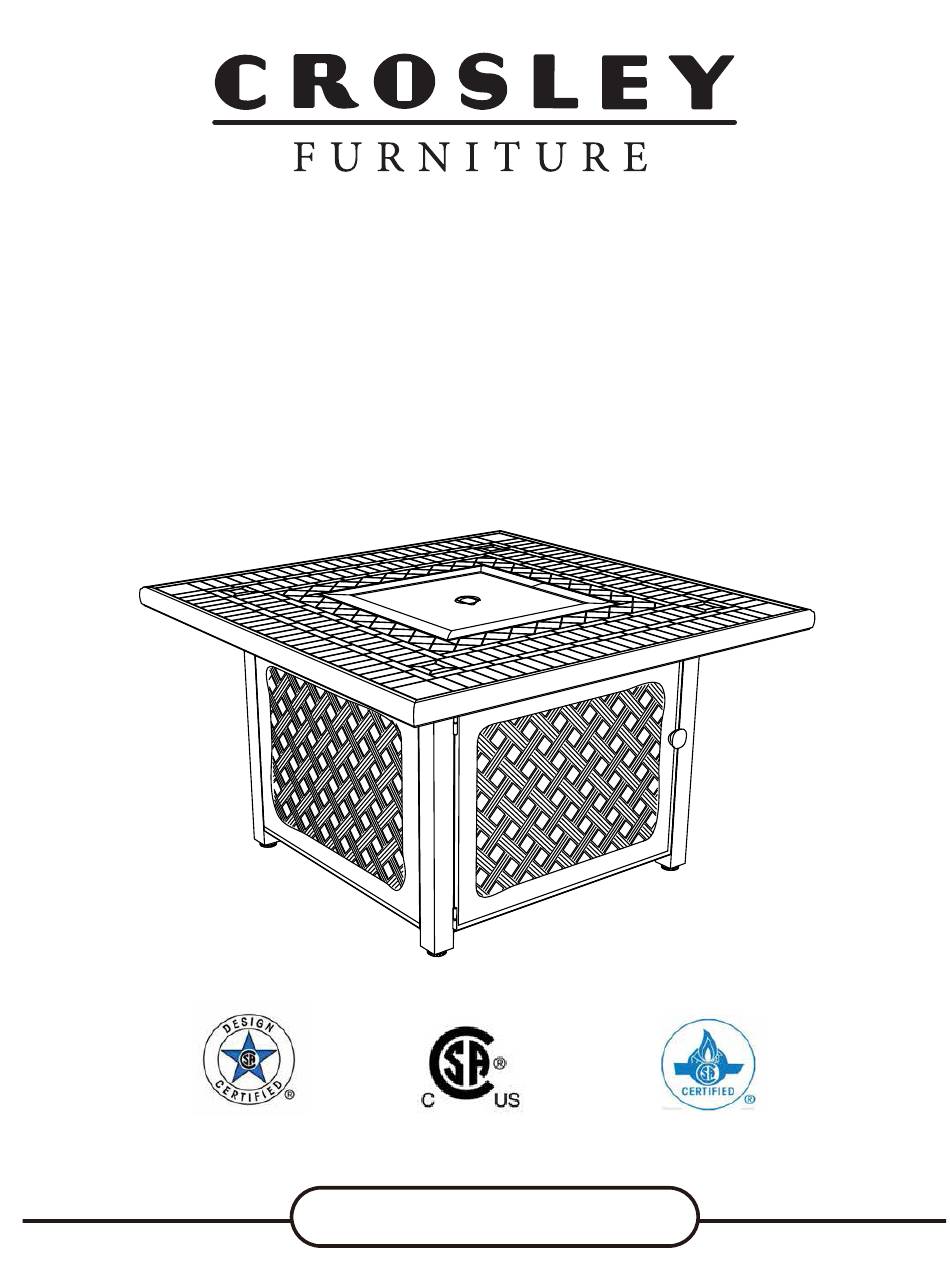

  • Page 1 Fire Table CO9011 INSTRUCTION MANUAL...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS • Warnings and Cautions ............3-5 • Parts List .................6-7 • Assembly ................8-11 • Operation ................12-14 • Maintenance and Storage ...........15-16 • Troubleshooting ...............17 REMINDER BEFORE ASSEMBLY Verify that all parts are included with your appliance BEFORE you begin assembly by checking the Parts and Hardware List.

  • Page 3: Warnings And Cautions

    Safety Information Read the instruction before use. This appliance must be installed in accordance with such regulations as are enforced. CAUTION WARNING: For Outdoor Use Only! Installation and service must be performed Installer: Leave this manual with the by a qualified installer, service agency, or the appliance.
  • Page 4 You must provide propane gas and propane cylinder. Use a standard 20 lb. propane cylinder only. Use this heater only with a propane vapor withdrawal supply system. See Chapter 5 of the Standard for Storage and Handling of Liquefied Petroleum Gas, ANS/NFPA 58. Your local library or fire department should have this book.
  • Page 5 WARNING S PLEASE READ THE FOLLOWING SAFETY RULES WARNING: Any guard or other protective device removed for servicing the appliance must The appliance is not for use with solid fuel. be replaced prior to operating the appliance. The installation must conform with local codes or, in the absence of local codes, with Installation and repair should be done by the National Fuel Gas Code, ANSI Z223.

  • Page 6: Parts List

    PARTS LIST...
  • Page 7 PART LIST (6kgs) (With Burner) Flame Glass Top Panel Side Panel Door Panel 1 PC 1 PC 1 PC 3 PCS 1 PC Knob Right Leg Left Leg Left Door Leg Right Door Leg 1 PC 1 PC 1 PC 1 PC 1 PC Propane Tank...

  • Page 8: Assembly

    ASSEMBLY Step 1. Lay top panel (part C) upside down on a soft flat surface, such as carpet, as shown below. Attach right leg (part G), left leg (part H), left door leg (part I), right door leg (part J) using bolts (part #1) and phillips head screwdriver. NOTE: Please do not fully tighten bolts until appliance is fully assembled.
  • Page 9 Step 3. Attach propane tank support (part K) to right leg (part G), left leg (part H), left door leg (part I), right door leg (part J) using bolts (part #1) and phillips head screwdriver. NOTE: Please fully tighten all bolts at this time. Step 4.
  • Page 10 Step 5. Carefully turn appliance upright. Line up the pins on the hinges from door panel (part E) with the holes in the hinges from left door leg (part I) and slide them together as shown below. Put the flame glass (part B) into the fire bowl. Ensure flame glass (part B) is not Step 6.
  • Page 11 Step 7. Put cylinder cover (part M) on the cylinder. Put the cylinder into the propane tank support (part K) and secure the cylinder by tightening the screw in the propane tank support (part K). Connect the hose of regulator to the cylinder. NOTE: The propane cylinder is sold separately.

  • Page 12: Operation

    OPERATION WARNING: Never use this appliance for other than the intended use. Do not use this appliance to prepare food. Initial Lighting: When lit for the first time, the appliance emits a slight odor. This is normal temporary condition caused by the “burn –in” of internal paints and lubricants used in the manufacturing process and does not occur again.
  • Page 13 LEAK TESTING OPERATION WARNING: A leak test must be performed annually or if a part of the gas system is replaced. WARNING: Never use an open flame to check for gas leaks. Be certain no sparks or open flames are in the area while you check for leaks. Sparks or open flames will result in a fire or explosion, damage to property, serious bodily injury, or death.
  • Page 14 Lighting Instructions 1. Press and hold electronic igniter button. WARNING 2. Turn the burner control to the low position, FOR YOUR SAFETY: press and hold. When the burner lights, release Keep face and body away from the electronic igniter button. burner area when lighting.

  • Page 15: Maintenance And Storage

    MAINTENANCE AND STORAGE MAINTENANCE To enjoy years of outstanding performance from your appliance, make sure you perform the following maintenance activities on a regular basis: • At least once a year, the unit should be inspected for the presence of spiders, spider webs or other insects.
  • Page 16 STORAGE: Between uses • Turn the control knob to “OFF” position. • Disconnect LP source. • Store appliance upright in an area sheltered from direct contact with inclement weather (such as rain, sleet, hail, snow, dust and debris). • Cover appliance to protect exterior surfaces and to help prevent build up in air passages.

  • Page 17: Troubleshooting

    TROUBLESHOOTING PROBLEM PROBABLE CAUSE SOLUTION Low heat / Low flame For propane- improper lighting Ensure lighting procedure is followed carefully. The when valve turned to procedure. valve must be in the off position when the tank valve is high. turned on. Turn tank on slowly to allow pressure to equalize.
