Summary of Contents for SpinCore Technologies RadioProcessor USB Power Supply

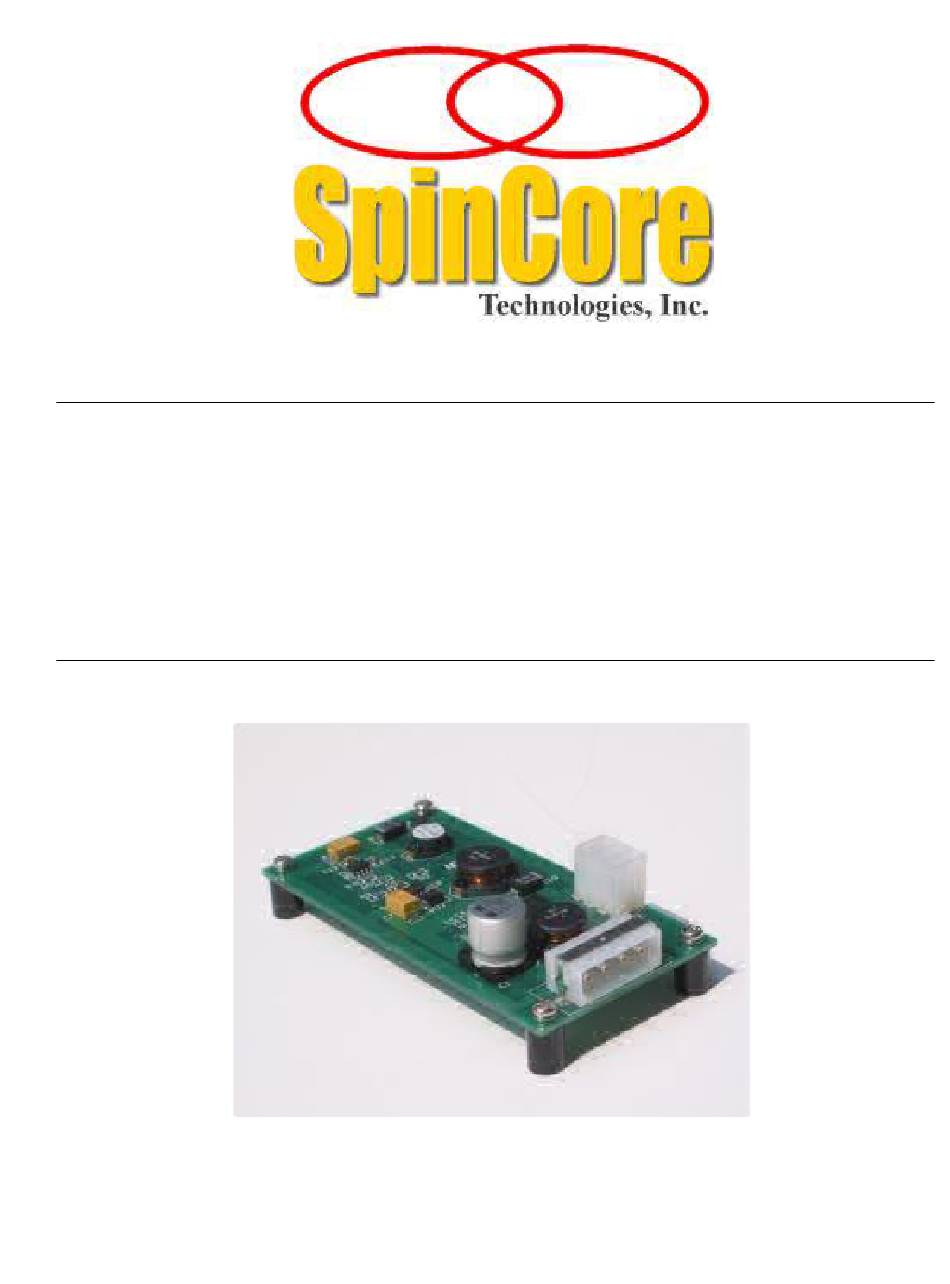

- Page 1 RadioProcessor™USB Power Supply Owner’s Manual...
- Page 2 All other trademarks are the property of their respective owners. SpinCore Technologies, Inc. makes every effort to verify the correct operation of the equipment. This equipment version is not intended for use in a system in which the failure of a SpinCore device will threaten the safety of equipment or person(s).
- Page 3 ™ RadioProcessor USB Power Supply Table of Contents I. Overview ....................4 II. Connector Information ................. 5 Input Connector ......................5 Output Connector ......................5 Cable Information ......................6 III. Contact Information ................7 www.spincore.com 2020-01-15...
- Page 4 ™ RadioProcessor USB Power Supply I. Overview The RadioProcessor USB Power Supply generates +5V/2A, +6V/1A and -6V/0.2A output voltages with a low ripple factor as required by the RadioProcessor USB board. The RadioProcessor USB Power Supply can operate under two different configurations depending on the input power sources: 1.Single input of 12V for triple DC/DC conversion: In this configuration, the RadioProcessor...
- Page 5 ™ RadioProcessor USB Power Supply II. Connector Information Input Connector The RadioProcessor-USB™ Power Supply has one 4-pin input connector. The pin and signal arrangements for this connector are shown below in Figure 1. Figure 1: 4-Pin Input Connector Part number: 53109-0410 (Mouser 538-531-09-0410) Output Connector The RadioProcessor-USB™...
- Page 6 ™ RadioProcessor USB Power Supply Cable Information If you will be making your own power supply cable to connect to the 6-pin output connector, you will need the following parts or their equivalents: One 6-pin female Mini-Fit Jr. connector (DigiKey part No.
- Page 7 ™ RadioProcessor USB Power Supply III. Contact Information SpinCore Technologies, Inc. 4631 NW 53rd Avenue, SUITE 103 Gainesville, FL 32653 Telephone (USA): 352-271-7383 Website: http://www.spincore.com Web Contact Form: http://spincore.com/contact.shtml www.spincore.com 2020-01-15...
