Summary of Contents for UGO BASILE 47350-005

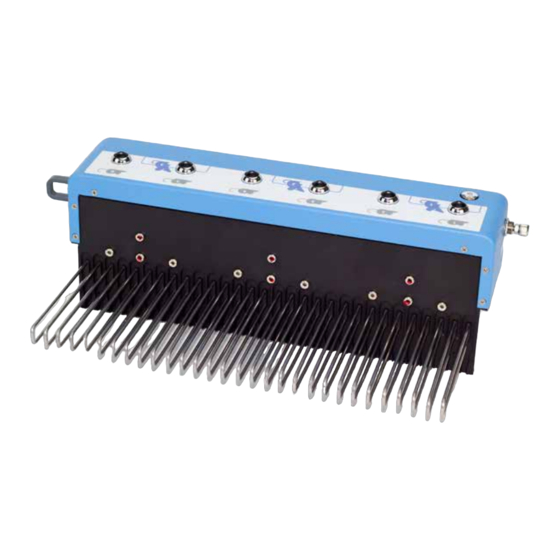

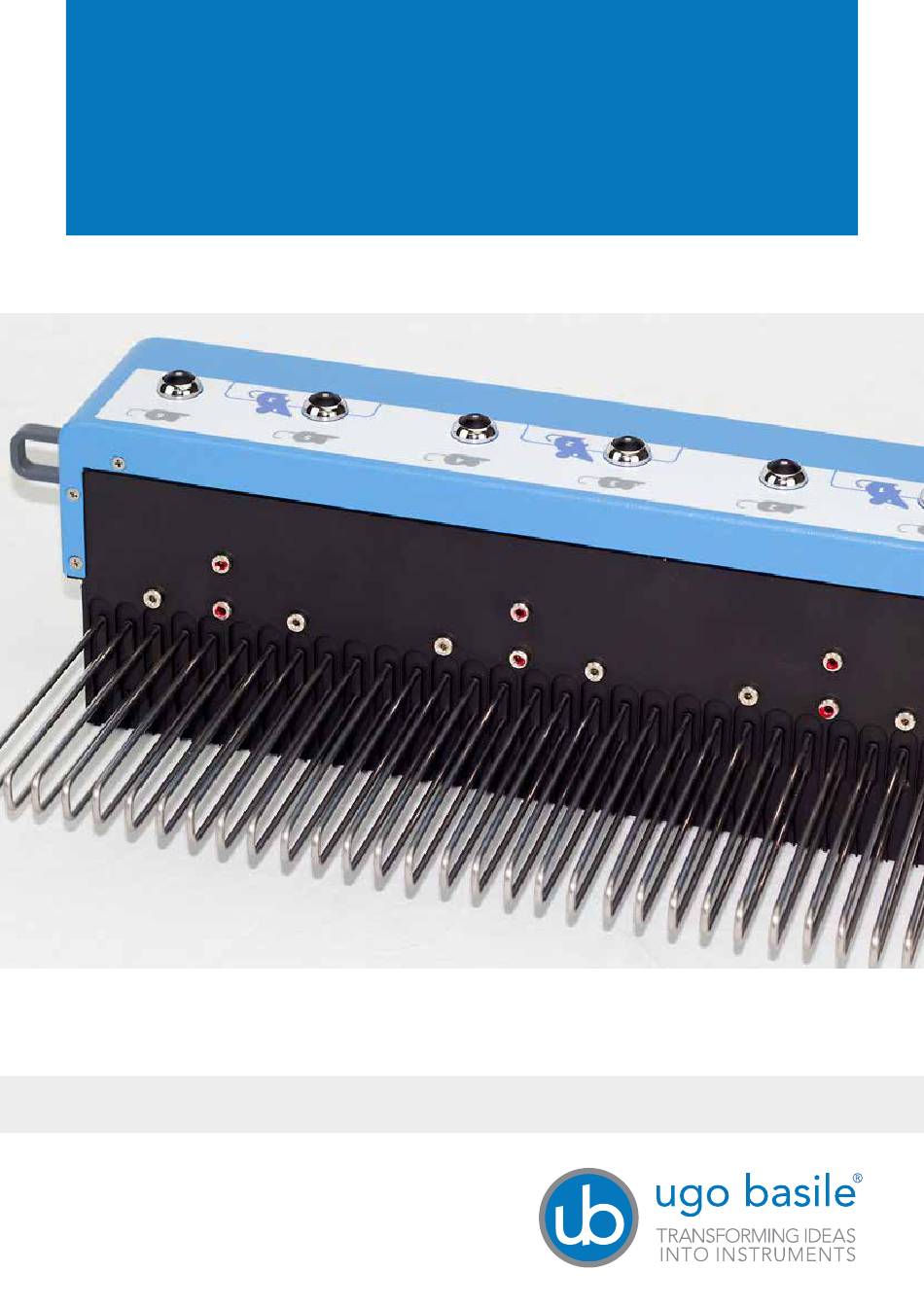

- Page 1 Instruction manual Shock and detection controller for treadmill AirPuff April 2021 Revision 1.1 SKU: 47350-005 ugobasile.com...
- Page 2 Service and adjustments should be carried out by qualified personnel, authorized by ugo basile organization. Any adjustment, maintenance and repair of the opened instrument under voltage should be avoided as much as...
- Page 3 Product features and general informations • This device is an add-on of the Ugo Basile • This device must be connected to an air Treadmill and can ONLY be used with the Ugo delivery system by a provided tube of 6 mm of Basile Treadmill devices with the following SKU external diameter and 4 mm internal diameter.
-
Page 4: Check List
Check-list ugobasile.com Check list Your “Shock and detection controller for treadmill AirPuff” package contains the following items: • The Shock and detection controller for treadmill AirPuff assembly itself • The 3 Mt long plastic tube of 6 mm of external diameter and 4 mm internal diameter. to connect the AirPuff assembly to your air delivery system. -
Page 5: Table Of Contents
Contents Summary Check list ..............Page4 Install the AirPuff assembly in state of the standard schock assembly: . -
Page 6: Install The Airpuff Assembly In State Of The Standard Schock Assembly
Connect power cord and switch on the treadmill, and after selecting the right animal on the display you should see the following icon beside the Ugo Basile logo at the right. This will ensure you the AirPuff assembly has been recognized by the system. -
Page 7: Adapt The Airpuff Assembly For Mice Or For Rats
Adapt the AirPuff assembly for mice or for rats While the Treadmill can be used for rats or for mice, you need to configure the system before running the test, you also need to prior decide if you want to use the AirPuff or the standard shock incentive. -
Page 8: Treadmill Functions For Airpuff
ugobasile.com Treadmill functions for AirPuff While installing the AirPuff assembly the Treadmill will automatically recognize the added device and change some setting on the screen. Please refer to the Treadmill instruction manual for general Treadmill functions. All the standard feature of the Treadmill with the electric shock assembly installed are available also with the AirPuff. -
Page 9: Performing The Test With The Airpuff
Performing the test with the AirPuff With the AirPuff assembly installed you can controll both of the running incentive; AirPuff and electrick schock. To controll electric schock please refer to the Treadmill instruction manual. AirPuff will blow in any case while AirPuff assembly installed and you can regulate the pressure of the puff using the left side pressure handle: Turning the handle you can adjust the pressur of the AirPuff reading the value on the manometer;...
