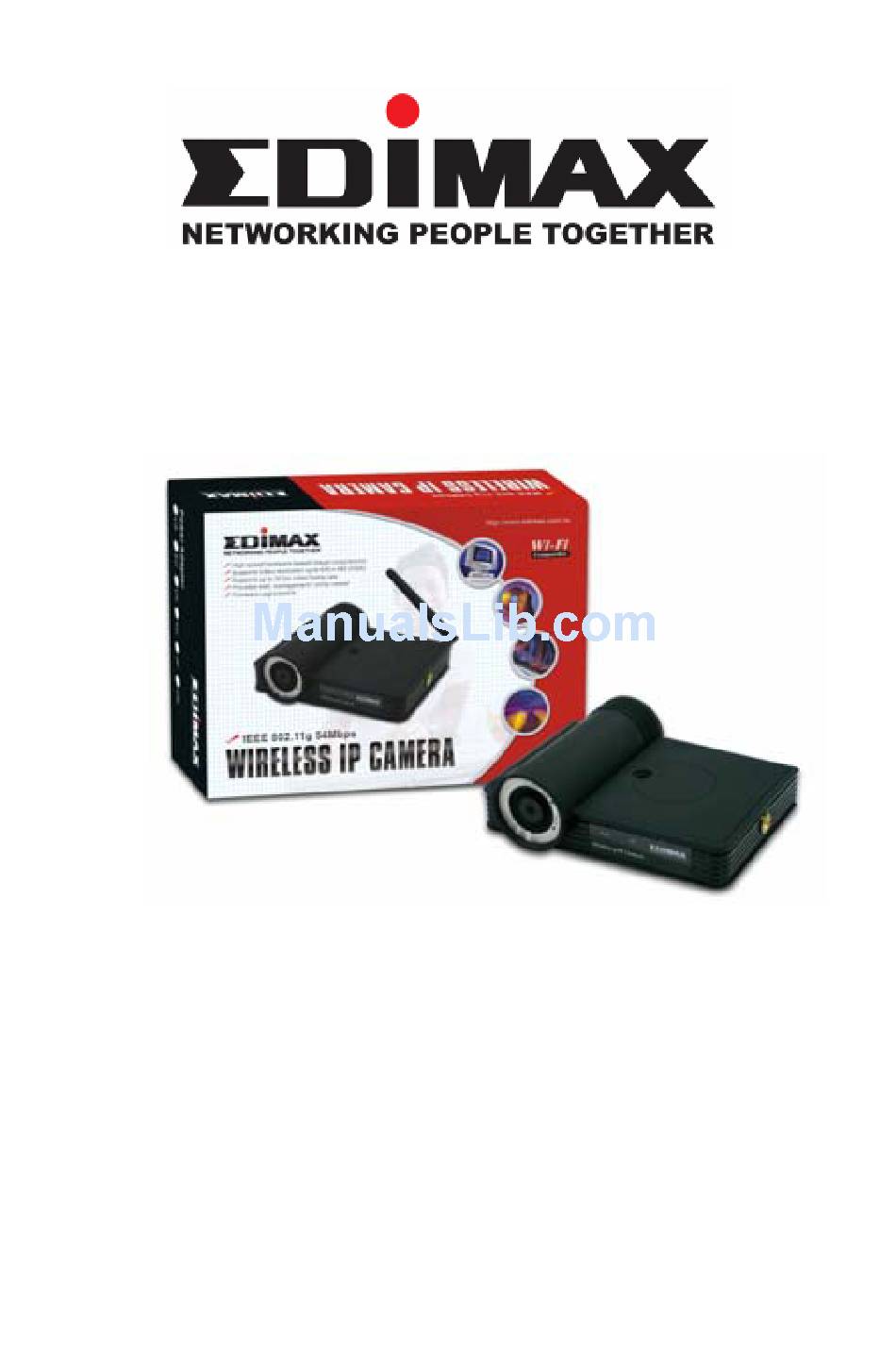

Edimax IC-1500 Quick Installation Manual
Wireless lan / fast ethernet motion jpeg internet camera
Hide thumbs
Also See for IC-1500:
- Specifications (2 pages) ,
- User manual (42 pages) ,
- Connection manual (2 pages)
Advertisement
Quick Links
Download this manual
See also:
User Manual
Wireless LAN / Fast Ethernet
Motion JPEG Internet Camera
(IC-1500Wg / IC-1500)
Q
u
i
c
k
I
n
s
t
a
l
l
a
t
i
o
n
G
u
i
d
e
Q
u
i
c
k
I
n
s
t
a
l
l
a
t
i
o
n
G
u
i
d
e
Version 1.0
Advertisement
Related Manuals for Edimax IC-1500
Summary of Contents for Edimax IC-1500
- Page 1 Wireless LAN / Fast Ethernet Motion JPEG Internet Camera (IC-1500Wg / IC-1500) Version 1.0...
- Page 2 Č ý : Č ý Anglického průvodce rychlou instalací naleznete na přiloženém CD s ovladači Finden Sie bitte das englische QIG beiliegend in der Treiber CD (German) ñ ñ Incluido en el CD el QIG en Ingles. ç ç Veuillez trouver l’anglais QIG ci-joint dans le CD driver Incluso nel CD il QIG in Inglese.
-
Page 3: System Requirements
1. Check your package contents One Internet Camera / with antenna (IC-1500Wg only) One external power adapter One camera stand and 100M Cat.5 Ethernet cable One Quick Installation Guide and User’s CD Please contact your dealer if any items above are missing. 2. - Page 4 3.2. Camera Ports The Camera features three ports and a Reset button. Antenna Connector : (IC-1500Wg only) Standard reverse SMA connector where any antennas with reverse SMA connector can connect to the Internet Camera. Power : Connect to the power adapter. LAN : Connect to the Ethernet network cable.
-
Page 5: Software Installation
If not, run “Autorun.exe” manually from “Autorun” folder in the CD. The Install Wizard will show four selections, select the “IC-1500 / Wg” on left side if you want to install now or click “Exit” to install the program later. - Page 6 The following installation steps are the demonstration of “IC-1500 and IC-1500Wg, now please Click the “Click To Setup Utilities” to continue. The system will start the installation procedures. Click “Next” to continue installation.
- Page 7 If you wish to install the software program in an alternate location, click “Change”; otherwise click “Next” to move on to the next step. Click “Install” to start installing the program.
- Page 8 The system will install the program automatically. Click “Finish” to complete the software installation.
- Page 9 Choose the one you want to configure and click “Setting Wizard” to proceed. N IC-1500 Please enter the default password “1234” and click “OK” to login to the IP setup page.
- Page 10 You can accept the suggested value or enter the value manually. If you enter the value manually, please be aware that the “Subnet Mask” must be the same for both the camera and the PC. Click “Finish” to apply the configuration. A window will pop up to ask you if you want to run the “Camera Viewer”...
- Page 11 The “Camera Viewer” will show the video automatically. Congratulations, you can use the camera through the network to view the video from now on.
