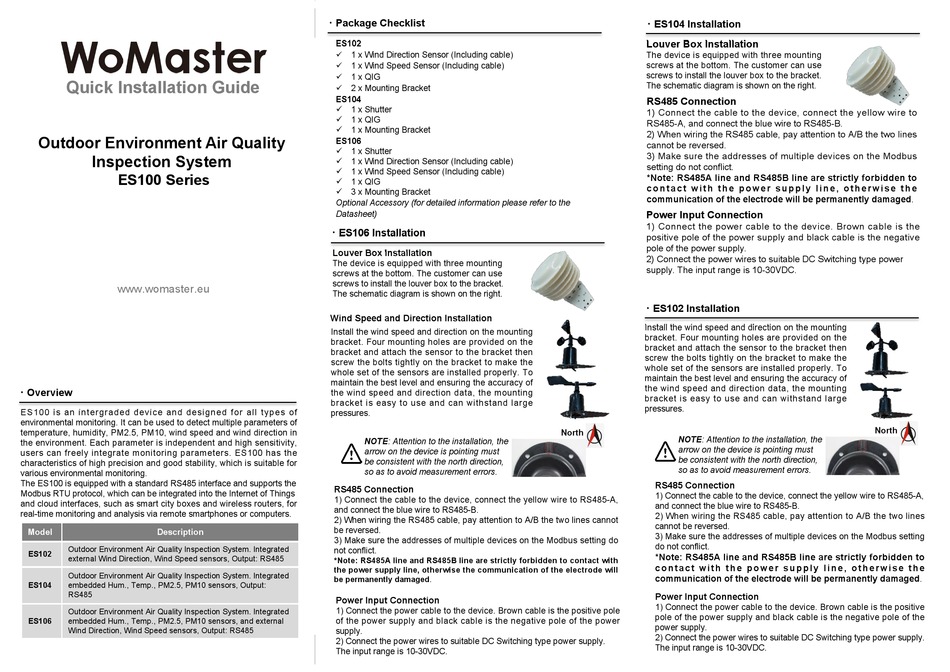

WoMaster ES100 Series Quick Installation Manual

Quick Installation Guide
Outdoor Environment Air Quality
Inspection System
ES100 Series
www.womaster.eu
・Overview
ES100 is an int ergraded device and desi gned f or al l t y pes of
environmental monitoring. It can be used to detect multiple parameters of
temperature, humidity, PM2.5, PM10, wind speed and wind direction in
the environment. Each parameter is independent and high sensitivity,
users can freely integrate monitoring parameters. ES100 has the
characteristics of high precision and good stability, which is suitable for
various environmental monitoring.
The ES100 is equipped with a standard RS485 interface and supports the
Modbus RTU protocol, which can be integrated into the Internet of Things
and cloud interfaces, such as smart city boxes and wireless routers, for
real-time monitoring and analysis via remote smartphones or computers.

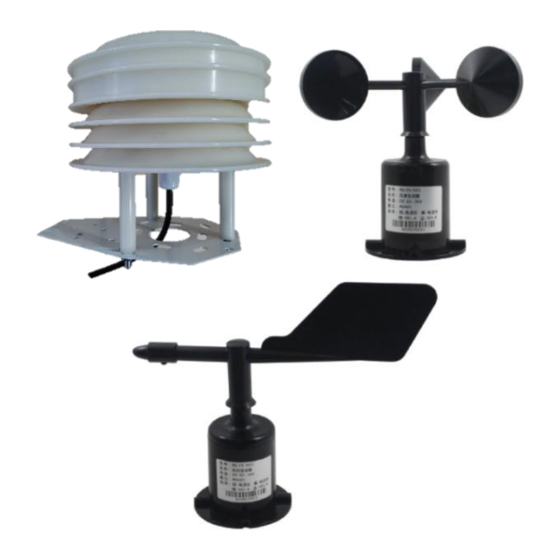

Model Description
Outdoor Environment Air Quality Inspection System. Integrated
ES102
external Wind Direction, Wind Speed sensors, Output: RS485
Outdoor Environment Air Quality Inspection System. Integrated
ES104 embedded Hum., Temp., PM2.5, PM10 sensors, Output:
RS485
Outdoor Environment Air Quality Inspection System. Integrated
ES106 embedded Hum., Temp., PM2.5, PM10 sensors, and external
Wind Direction, Wind Speed sensors, Output: RS485
・Package Checklist
ES102
1 x Wind Direction Sensor (Including cable)
ü
1 x Wind Speed Sensor (Including cable)
ü
1 x QIG
ü
2 x Mounting Bracket
ü
ES104
ü 1 x Shutter
ü 1 x QIG
ü 1 x Mounting Bracket
ES106
ü 1 x Shutter
ü 1 x Wind Direction Sensor (Including cable)
ü 1 x Wind Speed Sensor (Including cable)
ü 1 x QIG
ü 3 x Mounting Bracket
Optional Accessory (for detailed information please refer to the
Datasheet)
・ES106 Installation
Louver Box Installation
The device is equipped with three mounting
screws at the bottom. The customer can use
screws to install the louver box to the bracket.
The schematic diagram is shown on the right.
Wind Speed and Direction Installation
Install the wind speed and direction on the mounting
bracket. Four mounting holes are provided on the
bracket and attach the sensor to the bracket then
screw the bolts tightly on the bracket to make the
whole set of the sensors are installed properly. To
maintain the best level and ensuring the accuracy of
the wind speed and direction data, the mounting
bracket is easy to use and can withstand large
pressures.
NOTE: Attention to the installation, the
arrow on the device is pointing must
be consistent with the north direction,
so as to avoid measurement errors.
RS485 Connection
1) Connect the cable to the device, connect the yellow wire to RS485-A,
and connect the blue wire to RS485-B.
2) When wiring the RS485 cable, pay attention to A/B the two lines cannot
be reversed.
3) Make sure the addresses of multiple devices on the Modbus setting do
not conflict.
*Note: RS485A line and RS485B line are strictly forbidden to contact with
the power supply line, otherwise the communication of the electrode will
be permanently damaged.
Power Input Connection
1) Connect the power cable to the device. Brown cable is the positive pole
of the power supply and black cable is the negative pole of the power
supply.
2) Connect the power wires to suitable DC Switching type power supply.
The input range is 10-30VDC.
・ES104 Installation
Louver Box Installation
The device is equipped with three mounting
screws at the bottom. The customer can use
screws to install the louver box to the bracket.
The schematic diagram is shown on the right.
RS485 Connection
1) Connect the cable to the device, connect the yellow wire to
RS485-A, and connect the blue wire to RS485-B.
2) When wiring the RS485 cable, pay attention to A/B the two lines
cannot be reversed.
3) Make sure the addresses of multiple devices on the Modbus
setting do not conflict.
*Note: RS485A line and RS485B line are strictly forbidden to
c o n t a c t w i t h t h e p o w e r s u p p l y l i n e , o t h e r w i s e t h e
communication of the electrode will be permanently damaged.
Power Input Connection
1) Connect the power cable to the device. Brown cable is the
positive pole of the power supply and black cable is the negative
pole of the power supply.
2) Connect the power wires to suitable DC Switching type power
supply. The input range is 10-30VDC.
・ES102 Installation
Install the wind speed and direction on the mounting
bracket. Four mounting holes are provided on the
bracket and attach the sensor to the bracket then
screw the bolts tightly on the bracket to make the
whole set of the sensors are installed properly. To
maintain the best level and ensuring the accuracy of
the wind speed and direction data, the mounting
bracket is easy to use and can withstand large
pressures.
North
NOTE: Attention to the installation, the
arrow on the device is pointing must
be consistent with the north direction,
so as to avoid measurement errors.
RS485 Connection
1) Connect the cable to the device, connect the yellow wire to RS485-A,
and connect the blue wire to RS485-B.
2) When wiring the RS485 cable, pay attention to A/B the two lines
cannot be reversed.
3) Make sure the addresses of multiple devices on the Modbus setting
do not conflict.
*Note: RS485A line and RS485B line are strictly forbidden to
c o n t a c t w i t h t h e p o w e r s u p p l y l i n e , o t h e r w i s e t h e
communication of the electrode will be permanently damaged.
Power Input Connection
1) Connect the power cable to the device. Brown cable is the positive
pole of the power supply and black cable is the negative pole of the
power supply.
2) Connect the power wires to suitable DC Switching type power supply.
The input range is 10-30VDC.
North
