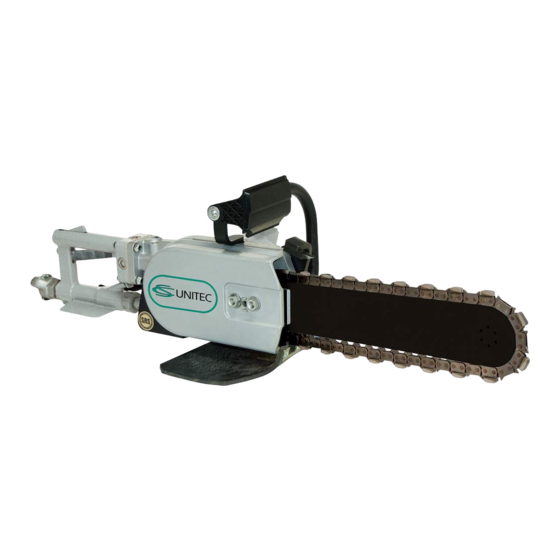

CS Unitec CS536664 Operator's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

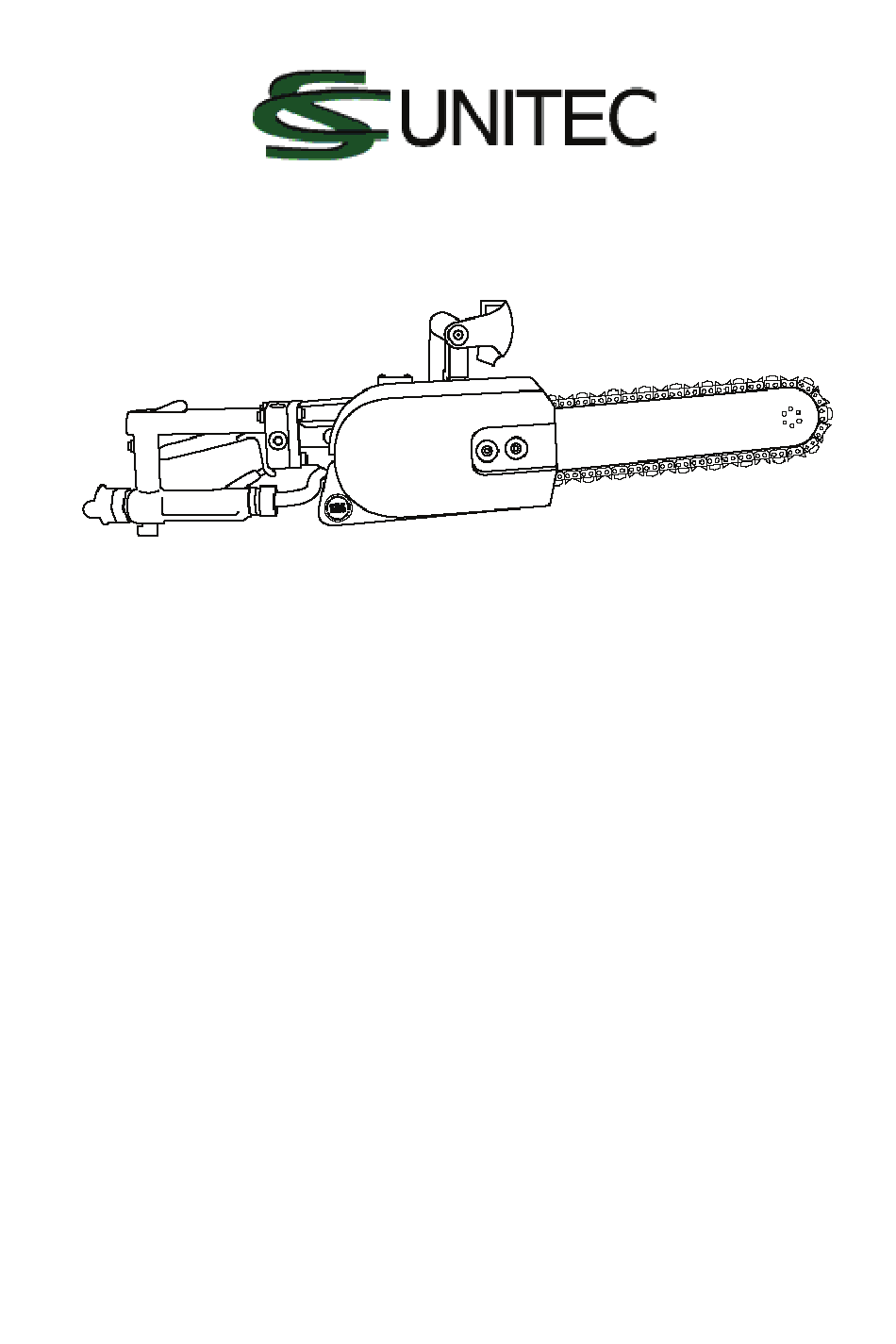

Model # CS536664
OPERATOR'S MANUAL
CS Unitec
22 Harbor Ave
Norwalk CT 06850 USA
(203) 853-9522
toll free: (800)-700-5919
fax: (203-)853-9921
e mail: info@csunitec.com
www.csunitec.com
p/n 71702 rev June 2016

Advertisement

loading
Need help?

Need help?

Do you have a question about the CS536664 and is the answer not in the manual?

Questions and answers

Related Manuals for CS Unitec CS536664

Summary of Contents for CS Unitec CS536664

  • Page 1 Model # CS536664 OPERATOR’S MANUAL CS Unitec 22 Harbor Ave Norwalk CT 06850 USA (203) 853-9522 toll free: (800)-700-5919 fax: (203-)853-9921 e mail: info@csunitec.com www.csunitec.com p/n 71702 rev June 2016...

  • Page 2: Table Of Contents

    This is a professional tool and is solely intended for use by trained and experienced operators. The CS536664 saw is designed to cut concrete, stone and masonry when used with the appropriate diamond chain. Other materials including ductile iron, cast iron or PVC Pipe require the use of Utility Chain.

  • Page 3: Symbols & Labels

    SYMBOLS & LABELS OPERATOR’S MANUAL SAFETY RULES To get the maximum benefi t from your saw, and ensure maximum safety, be sure to read this manual thoroughly and follow the safety instructions provided. EXPLANATION OF WARNING LEVELS DANGER Indicates a hazard with a high level of risk which, if not avoided, will result in death or serious injury.

  • Page 4: Safety

    SAFETY OPERATOR’S MANUAL THE FOLLOWING WARNING SYMBOL APPLIES TO ALL THE ITEMS LISTED ON THIS PAGE Indicates a hazard with a medium level of risk WARNING WARNING which, if not avoided, could result in death or serious injury. Note: Chain breakage can result in high-speed ejection of parts, which can result in death or serious personal injury to operators or bystanders.
  • Page 5 SAFETY OPERATOR’S MANUAL THE FOLLOWING WARNING SYMBOL APPLIES TO ALL THE ITEMS LISTED ON THIS PAGE Indicates a hazard with a medium level of risk WARNING WARNING which, if not avoided, could result in death or serious injury. This saw can generate hazardous dust and vapors. Determine the nature of the material you are going to cut before proceeding with the job.
  • Page 6 SAFETY OPERATOR’S MANUAL THE FOLLOWING WARNING SYMBOL APPLIES TO ALL THE ITEMS LISTED ON THIS PAGE Indicates a hazard with a low level of risk which, CAUTION CAUTION if not avoided, could result in minor or moderate injury. • Always disconnect the air supply and relieve pressure from supply lines before performing maintenance on the saw.

  • Page 7: Technical Specifications

    TECHNICAL SPECIFICATIONS OPERATOR’S MANUAL Weight without bar and chain 29 lbs (13 kg) Length 20 in (58.5 cm) Height 10.5 in (26.5 cm) Width 12 in (30.5cm) Air Motor Power 6.5 Hp (5 Kw) 90psi (6 bar) Air Supply Requirements (maximum) 124 cfm (3.5 m /min) Resin and acid-free...

  • Page 8: Set-Up

    SET-UP OPERATOR’S MANUAL STEP 1 Loosen the side cover nuts and remove the side cover and bar clamp plate. STEP 2 Place the bar onto the studs and the chain adjustment pin.
  • Page 9 SET-UP OPERATOR’S MANUAL STEP 3 Turn the chain-tensioning screw counterclockwise until the bar comes into contact with the drive sprocket. start here STEP 4 Mount the chain on the bar starting at the drive sprocket & continue over the bar nose.
  • Page 10 SET-UP OPERATOR’S MANUAL STEP 5 Make sure all of the drive links are inside the bar groove, then pre-tension the chain by turning the tensioning screw clockwise. STEP 6 Install the bar clamp plate over the bar studs in proper orientation. "Front" is marked on the plate.
  • Page 11 SET-UP OPERATOR’S MANUAL STEP 7 Install the side cover over the bar studs and install side cover nuts. Finger tighten only. STEP 8 Tension the chain properly. Do not over tension the diamond chain. Loss of power will result.
  • Page 12 SET-UP OPERATOR’S MANUAL CAUTION CAUTION CORRECT CHAIN TENSION All chains have a tendency to stretch when used. Diamond chains stretch more than wood cutting chains because of the abrasive materials they are cutting. If the chain is too tight, more power goes into turning the chain rather CORRECT CHAIN TENSION than into the cut.
  • Page 13 SET-UP OPERATOR’S MANUAL STEP 9 Lift up on the nose of the bar and firmly tighten the side cover nuts. Be sure the side cover nuts are tightened to approximately 20 ft-lbs (27 Nm).

  • Page 14: Operation

    OPERATION OPERATOR’S MANUAL PRE-CUT CHECKLIST CAUTION CAUTION To maximize the life of the cutting system, ensure that proper chain tension is maintained. If tension is too tight, it will lead to excessive chain stretch, and a lot of the saw’s power will be used to overcome friction. In severe cases the chain may not turn at all and can lead to chain breakage.
  • Page 15 OPERATION OPERATOR’S MANUAL PRE-CUT CHECKLIST, CONT. • Adequate Water Supply and Pressure: Minimum Flow: 1 gpm (4 lpm) Minimum Water Pressure: 20 psi (1.4 bar) Checking for water pressure without a pressure gauge: With the compressor off, attach water hose to the saw water connection. Pull the chain off to one side of the bar and turn on the water valve.
  • Page 16 OPERATION OPERATOR’S MANUAL WARNING WARNING If cutting pipe with PowerGrit® be sure the cut line stays open by providing proper pipe support. Also check for neighboring utilities or obstructions. Concrete is very heavy, 1 cubic foot (30 cubic cm) weighs 150 lbs (68 kg). Be sure to cut so that concrete cannot fall and injure operator or bystanders.
  • Page 17 OPERATION OPERATOR’S MANUAL CAUTION CAUTION Wear gloves when handling the bar and chain. Over time, these components can develop sharp edges and cause cuts. • When cutting reinforced concrete, be sure you are always cutting concrete as well as rebar. This will prevent the segments from glazing over and keep the diamonds exposed.
  • Page 18 OPERATION OPERATOR’S MANUAL OPERATING THE DIAMOND CHAINSAW IN CONCRETE • When cutting into concrete, plunge cut instead of starting at the top of the wall. This will reduce chatter, extend diamond life, create a straighter cut and more quickly enable the use of the Wallwalker®. •...
  • Page 19 OPERATION OPERATOR’S MANUAL SYSTEM CLEAN-UP 1. Run saw, with water on, for 15 seconds out of cut to fl ush slurry and debris from chain, bar and drive sprocket. 2. Wash concrete slurry from saw body. 3. Remove bar and chain. Flush out chain tensioner assembly location with high water pressure and lube with grease.

  • Page 20: Troubleshooting

    TROUBLESHOOTING OPERATOR’S MANUAL • SLOW CHAIN SPEED - Be sure the compressor is providing the correct air pressure at the saw (90 psi = 6 bar) and cubic feet per minute (124 cfm = 3.5 m /min). Chain is installed too tight. Refer to tension on page 11.

  • Page 21: Maintenance

    MAINTENANCE OPERATOR’S MANUAL DRIVE SPROCKET INSTALLATION STEP 1 • Remove snap ring • Remove sprocket • Install sprocket in reverse order ensuring counter bore is facing out. • Install snap ring STEP 2 • Ensure snap ring is fully seated in snap ring groove.
  • Page 22 MAINTENANCE OPERATOR’S MANUAL AIR MOTOR MAINTENANCE Service life and performance of the chain saw are determined by: 1. Degree of air purity 2. Lubrication 3. Maintenance Prior to operating the saw be sure to: 1. Blow the air hose clear prior to connecting it to the saw. Install dirt and water separators upstream of the saw 6 - 12 ft (2 - 4 m).

  • Page 23: Reference

    REFERENCE OPERATOR’S MANUAL APPROXIMATE CUTTING RATES Material Cutting Rate Concrete – 6 in (15 cm) 5 lineal in/min (12 cm/min) Red Brick – 6 in (15 cm) 10 lineal in/min (25 cm/min) Rebar – #4 (12 mm) 10–20 seconds through each piece *Rebar must be encased in concrete, never cut bare rebar.
  • Page 24 OPERATOR’S MANUAL CS Unitec 22 Harbor Ave Norwalk CT 06850 USA (203) 853-9522 toll free: (800)-700-5919 fax: (203-)853-9921 e mail: info@csunitec.com www.csunitec.com...
