Note: David30 GNSS receiver and Ntrip Modem TR600 are configured well before

shipping. Please set up the system according to Chapter 1, David and Ntrip Modem

TR600 are ready to work normally after power on.

1. GeoBee30 System Set up

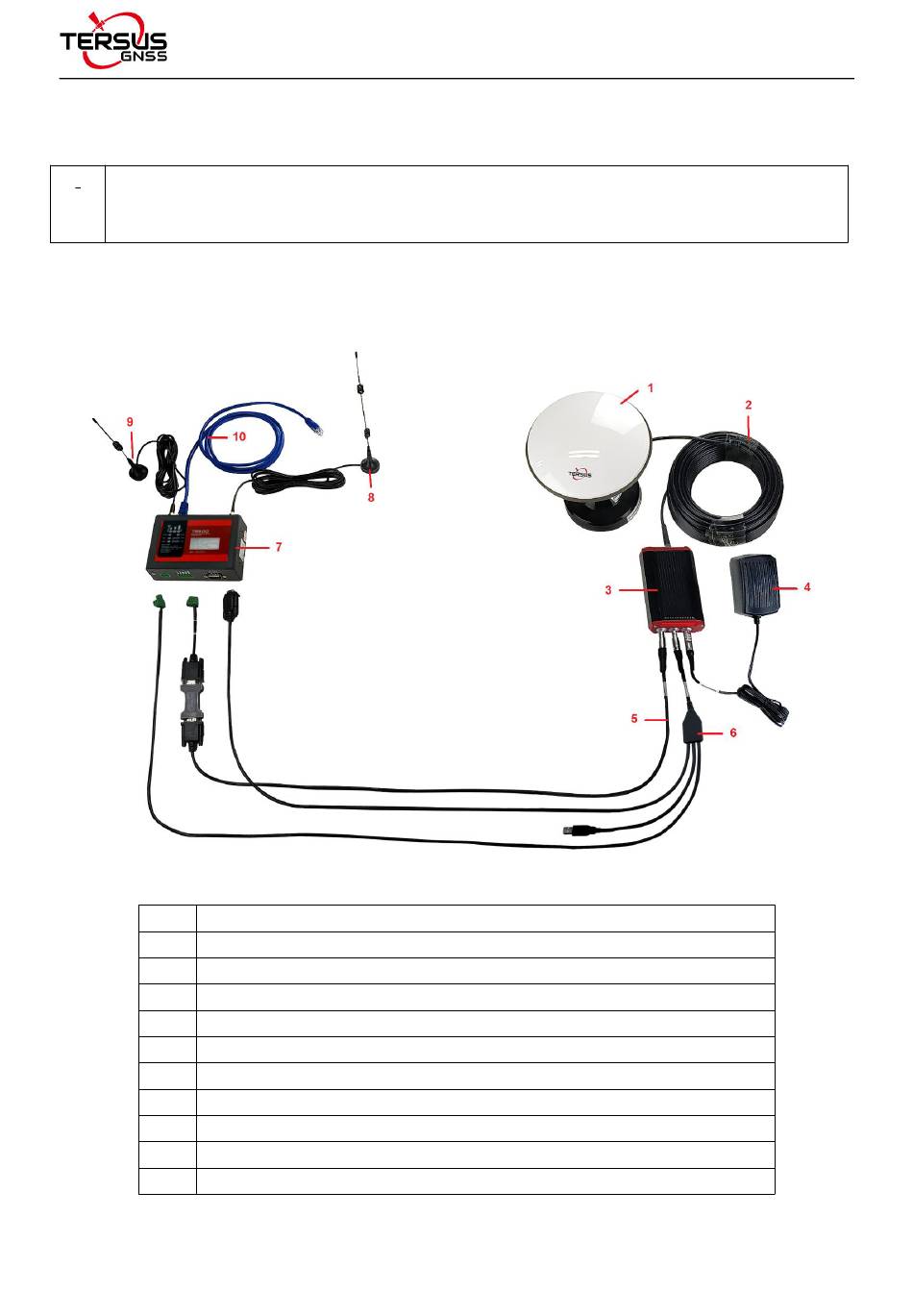

Set up the GeoBee30 system following the figure below, and power up the system.

No.

Name

Antenna (AX4E02 in the figure above, customizable)

TNC-J to TNC-J cable (GNSS antenna cable, 25m by default, customizable)

David30 GNSS Receiver

Power Adapter (short for 'DC-5pin AC Power Adapter with 1.2m cable')

COMM1 cable (short for 'COMM1-7pin to DB9 male cable')

COMM2 cable (short for 'COMM2-7pin to TR600-DC-2pin & DB9 female & USB cable')

Ntrip Modem TR600

4G antenna for TR600

Wi-Fi antenna for TR600

Ethernet cable 1.5m

Quick Start Guide for GeoBee30

Figure 1 GeoBee30 System Set up

Quick Start Guide for GeoBee30 v1.0

Table of Contents

Do you have a question about the GeoBee30 and is the answer not in the manual?

Page 1 Please set up the system according to Chapter 1, David and Ntrip Modem TR600 are ready to work normally after power on. 1. GeoBee30 System Set up Set up the GeoBee30 system following the figure below, and power up the system. Figure 1 GeoBee30 System Set up Name...
Page 2 Wi-Fi connection is available for communication. Install 4G antenna when 2G/3G/4G SIM card is used for communication. 4) GeoBee30 starts to work in auto start mode by default once it is powered up. According to the autonomous positioning (without RTK or DGPS), it smoothes out the average value to be the base coordinate.
Page 3 The number of signal lights on determines the signal strength of 2G/3G/4G mobile network. When using Ethernet to access to the Ntrip server, the signal lights are off. The PWR is steady red to indicate GeoBee30 is powered normally, ERR is off to indicate GeoBee30 is not at abnormal state. The NET is steady green to indicate that it is connected to Internet.
Page 4 Before using this product, please be sure to read the product manual carefully, which helps you to better use the product. Tersus is not liable for damages caused by failure to follow the instructions in the manual. Tersus is committed to continually improving product features and performance, and the contents of subsequent product manuals are subject to change without notice.
