Performax 72800AP Operator Instructions

Operator's Instructions
MOBILE GARAGE STORAGE CABINET
Model: 72800AP
SKU: 211-4352
SAFETY INSTRUCTIONS
•
WEAR SAFETY GLASSES AND GLOVES when assembling
this product.
•
BE CAREFUL of sharp edges.
•
DO NOT stand on the top or in drawers. You may fall which
may cause personal injury.
•
DO NOT alter this product in any manner.
•
Use brakes when not moving this product.
•
Lock drawers/doors before moving this product.
•
Swivel casters w/ brakes are designed to mount at front of
unit.
•
Keep the product on a level surface. The product may be-
come unstable and tip if stored or moved on an un-level sur-
face, and may cause personal injury or product damage.
•
The maximum weight for the shelf should be no more than
75 lbs.
•
ALWAYS wear ANSI approved safety goggles when working
with tools and equipment.
PARTS
Ref # Description
1 Molded bumpers
2 Hex screws, black
3 Brass cup washers
4 caster bolts,M8x20
5 Swivel casters without brake
6 Swivel casters with brake
Replacement keys may be ordered using the code which
appears on the faceplate of the lock.

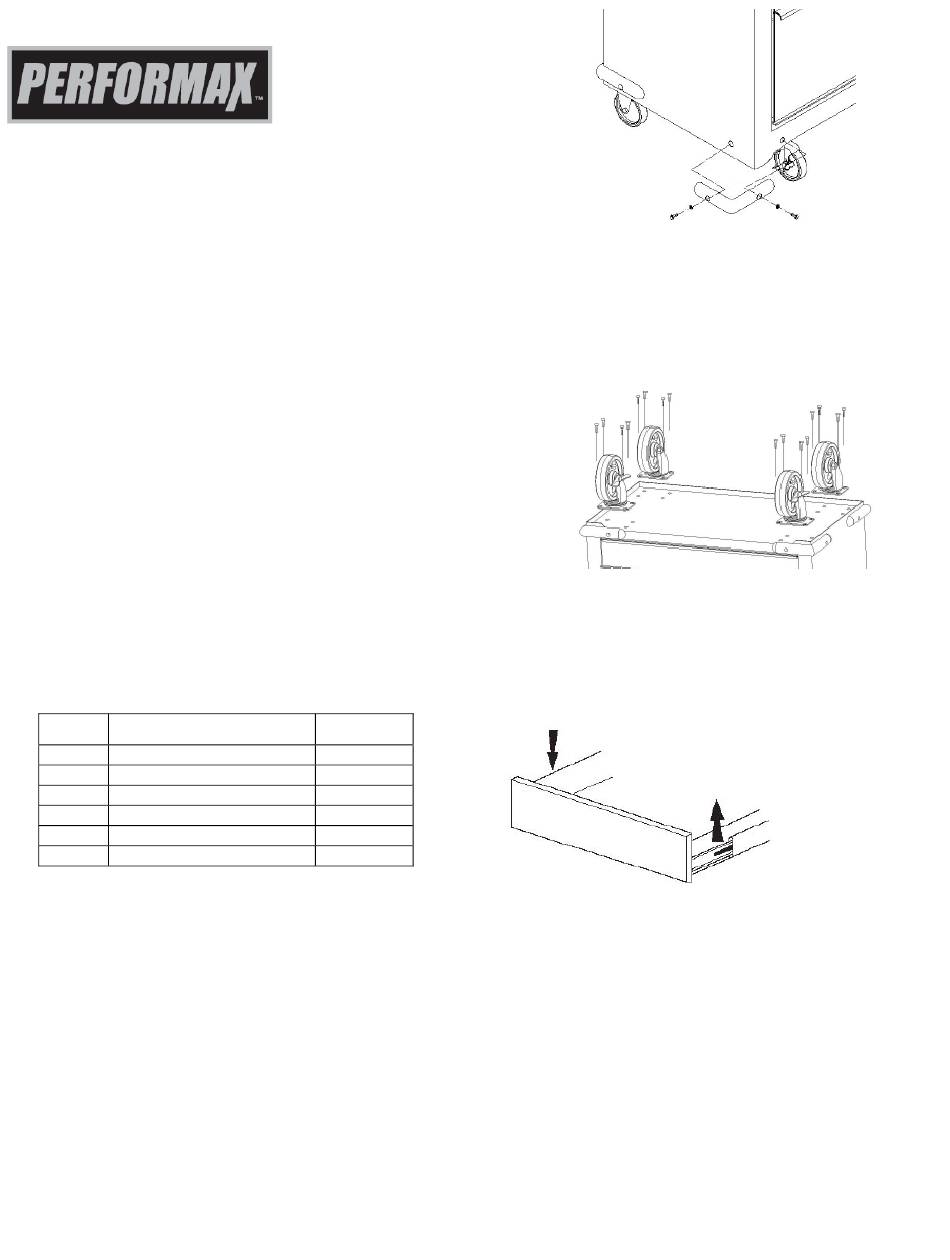

ASSEMBLY
You will need wrench for bolts used for installing casters.
To install corner bumpers
Position the bumpers over the corner holes. Insert the brass
cup washers then hex screws into bumper holes and tighten
with hex key provided. Do not over tighten.
To install casters
Carefully lay cabinet on its back using packing material to pro-
tect the paint finish. Position the two swivel casters without
brake on the back side of the cabinet bottom. Insert the bolts
through the caster plate and into the cabinet bottom. Tighten
securely. For the two swivel casters with brakes to be mounted
on front side of cabinet
maining bolts. Tighten securely. See figure below.
To remove shelf & adjust shelf location
Empty shelf. Pull out to almost full extension. Push up right
hand black release lever, while pulling down left hand black
release lever. While holding the levers in the positions as in-
structed below, pull the shelf outward until it is released from
the drawer slide. (See figure below)
Qty
4
8
8
16
2
2
Remove the set screw from the slides; push the mounting
channel up and out. Reinsert the mounting channel of the slide
to your desired level in the cabinet. Make sure both slides are
placed at the same level and insert the slide by pushing in and
down on the mounting slots. Insert the shelf in completely until
the slides lock into place.
1 of 2
, install the front bolts first, then re-
OPERATION
