Summary of Contents for CRH CRLTS1320

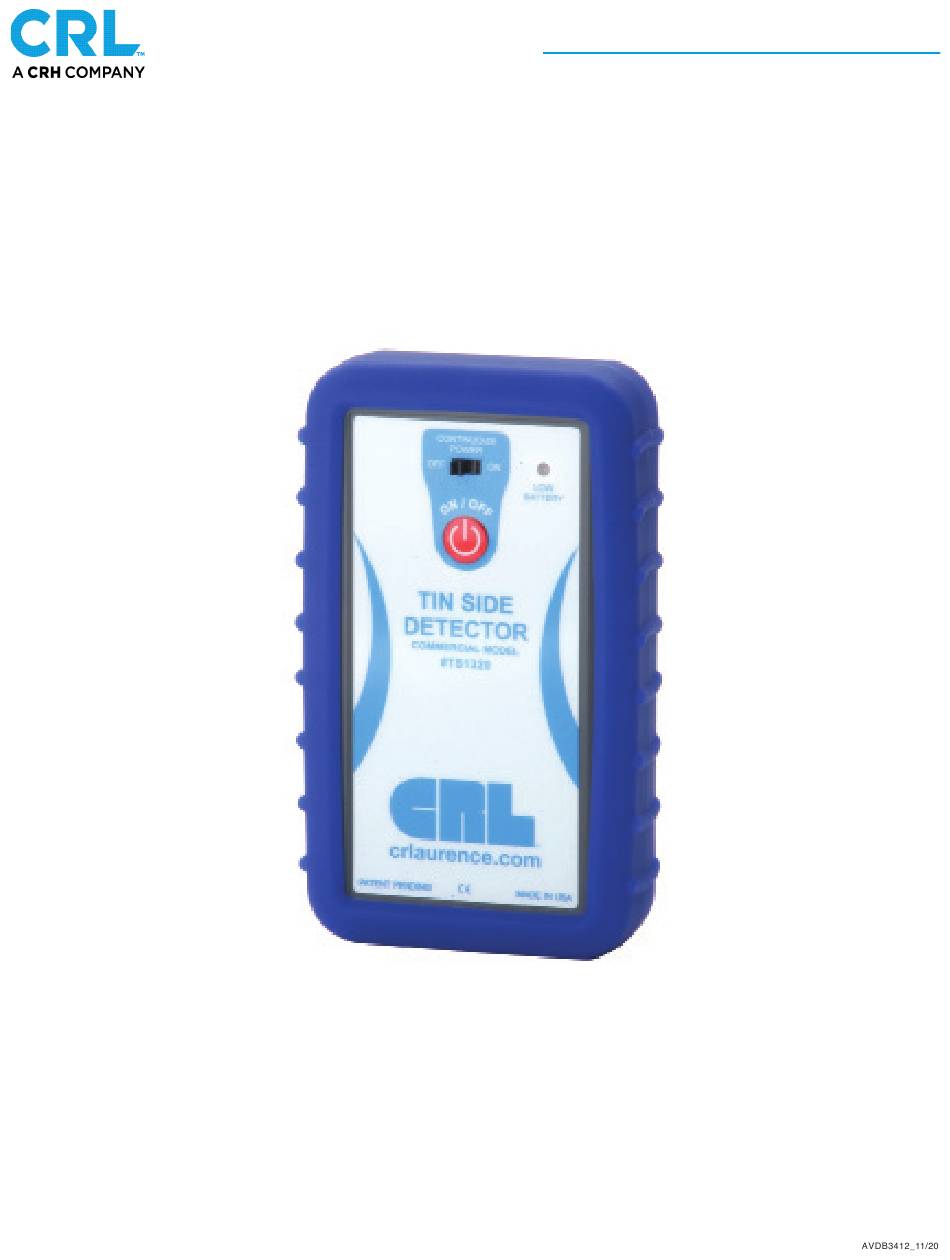

- Page 1 GLASS DRILL INSTRUCTION MANUAL INSTRUCTION MANUAL crlaurence.com NOVEMBER 2020 Tin Side Detector Cat. No. TS1320 C.R. Laurence Co., Inc. • 2503 E. Vernon Ave., Los Angeles, CA 90058 • 1.800.421.6144 • crlaurence.com...
- Page 2 GLASS DRILL INSTRUCTION MANUAL INSTRUCTION MANUAL crlaurence.com NOVEMBER 2020 GENERAL DESCRIPTION During the production of float glass, one side of the molten glass comes into contact with a bath of molten tin, Traces of tin or tin oxide metal are deposited on the surface of glass as is removed from the molten tin bath. This surface of the glass is identified as the ‘...
- Page 3 GLASS DRILL INSTRUCTION MANUAL INSTRUCTION MANUAL crlaurence.com NOVEMBER 2020 POWER SWITCH The momentary (membrane) power switch is the preferred switch to use for the TS1320 product. This switch minimizes the use of the lamp in between tests, and extends the life of the batteries. As described later in this operating manual, being able to cycle the power on and off also aids in the determination of the tin side glow.
- Page 4 GLASS DRILL INSTRUCTION MANUAL INSTRUCTION MANUAL crlaurence.com NOVEMBER 2020 TRADITIONAL TOP SIDE METHOD To test glass using the top side method, place the TS 1320 on the top surface of the glass, as shown in Figure 3. Using this method, it is important that you put on your UV blocking safety glasses. Turn on the power but DO NOT look directly at the lamp.
- Page 5 GLASS DRILL INSTRUCTION MANUAL INSTRUCTION MANUAL crlaurence.com NOVEMBER 2020 LAMP REPLACEMENT The TS1320 includes a custom short wave UV lamp inside the enclosure. If the lamp stops working, confirm that your batteries are still functional. If you have replaced the batteries and installed them correctly (double-check polarity) and the instrument is still not working, It may be necessary for you to replace the short wave UV lamp.
- Page 6 GLASS DRILL INSTRUCTION MANUAL INSTRUCTION MANUAL crlaurence.com NOVEMBER 2020 BATTERY REPLACEMENT If the low battery indicator illuminates, the instrument Is warning that the batteries should be replaced in the near future. It is possible that the TS1320 product will continue to work for some time after the indicator illuminates. It is totally safe to continue using the instrument while the low battery indicator is Illuminated.
- Page 7 GLASS DRILL INSTRUCTION MANUAL INSTRUCTION MANUAL crlaurence.com NOVEMBER 2020 RELATED PRODUCTS “Glass-Chek ELITE” “ETEKT+ Digital Tin Side Detectors Identify location and type of low e Dual Pane Low E Coating Detector (Model # TS2300) coatings as well as glass, lami & air space (Model# AE1601) thickness.
