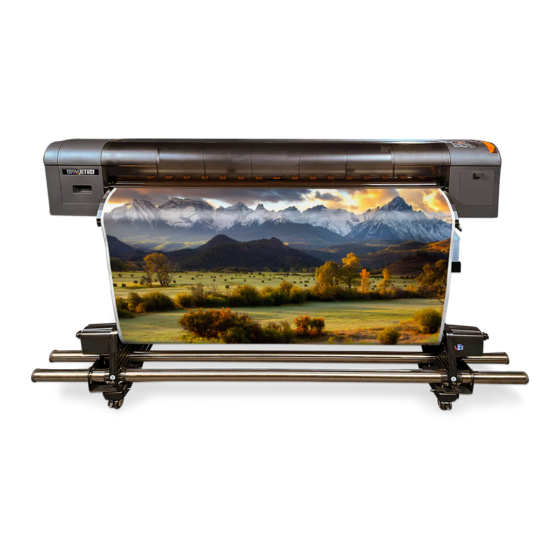

SignWarehouse PrismJET VJ-54 Manual Set Up

PrismJET VJ-54 Take Up System Guide Set Up

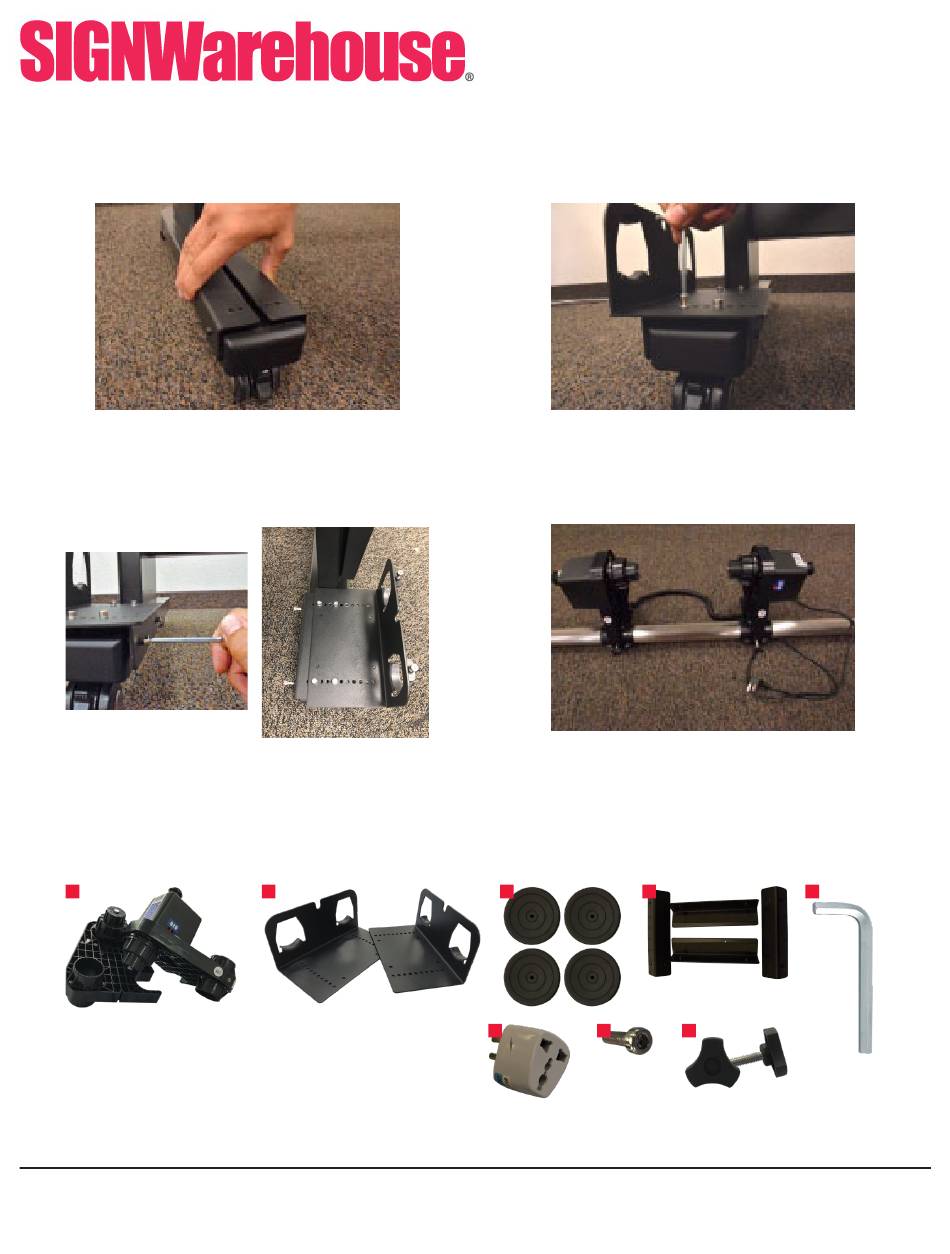

1) Align L-Brackets onto front legs of stand
3) Add larger screws on inside and outside of legs. Tighten
using hex wrench. If you want more space for the motors to
move. Take notice of the placement of the screws.
1
NO. Name
1 Left and Right Motor
2 Leg Brackets (x2)
3 Rod End Caps (x4)
4 Plug Adapter
www.signwarehouse.com •SignWarehouse, Inc. • 2614 Texoma Drive, Denison, TX 75020
•Toll Free Phone: 1-800-899-5565 •Local Phone: 903-462-7700 •Fax: 1-800-966-6834
2
NO. Name
5 L-Brackets (x4)
6 Hex Screws (x20)
7 Motor Fix Knobs (x2)
8 Hex Wrench
800-899-5655
2) Add mounts to alinged brackets and secure with
4 small screws with washers. The long screws will be
used in other steps.
4) Instert one steel bar through left and right reels.
They are labeled with white stickers.
3 5
4 6
12 Long Screws
8 Short Screws
*Not pictured* Rods (x2)
Comes in two boxes, all the parts and accessories in one and the rods in another.
8
7
REV 01/17/2019
