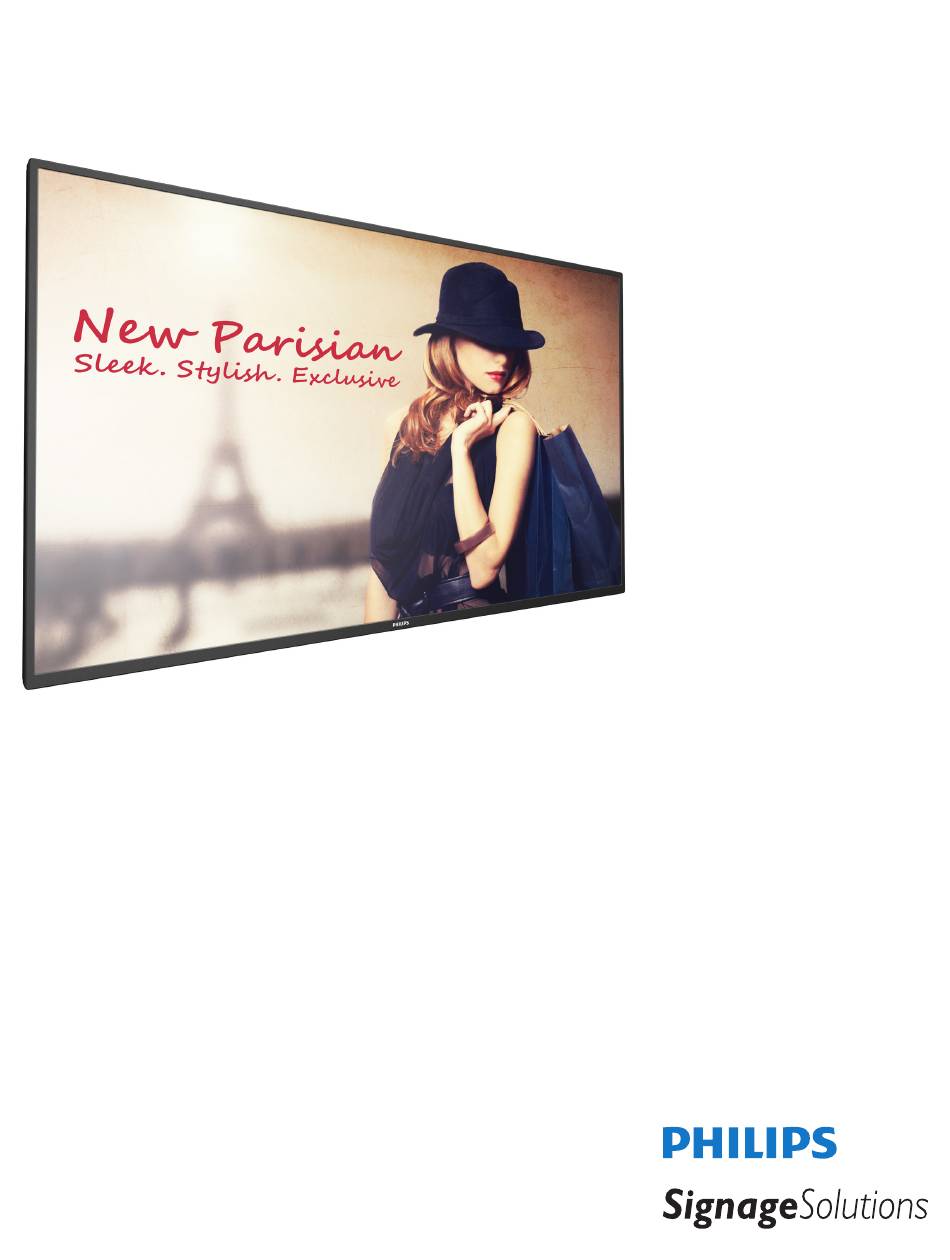

49BDL4050D
V1.00
www.philips.com/welcome
User Manual (English)

Advertisement

Table of Contents
loading

Related Manuals for Philips Signage Solutions 49BDL4050D

Summary of Contents for Philips Signage Solutions 49BDL4050D

  • Page 1 49BDL4050D V1.00 www.philips.com/welcome User Manual (English)
  • Page 2 Read and follow these instructions when connecting and using your display: Operation: • Keep the display out of direct sunlight and away from stoves or any other heat sources. • Remove any object that could fall into ventilation holes or prevent proper cooling of the display’s electronics. • Do not block the ventilation holes on the cabinet. • When positioning the display, make sure the power plug and outlet are easily accessible. • When turning off the display by detaching the power cord, wait 6 seconds before re-attaching the power cord for normal operation. • Ensure the use of an approved power cord provided by Philips at all times. If your power cord is missing, please contact your local service center. • Do not subject the display to severe vibration or high impact conditions during operation. • Do not knock or drop the display during operation or transportation. Maintenance: • To protect your display from possible damage, do not put excessive pressure on the LCD panel. When moving your display, grasp the frame to lift; do not lift the display by placing your hand or fingers on the LCD panel. • Unplug the display if you are not going to use it for an extensive period of time.
  • Page 3 49BDL4050D Read and follow these instructions when connecting and using your display: • Unplug the display if you are not going to use it for an extensive period of time. • Unplug the display if you need to clean it with a slightly damp cloth. The screen many be wiped with a dry cloth when the power is off. However, never use alcohol, solvents or ammonia-based liquids. • Consult a service technician if the display does not operate normally when you have followed the instructions in this manual. • The casing cover should be opened only by qualified service personnel. • Keep the display out of direct sunlight and away from stoves or any other heat sources. • Remove any object that could fall into the vents or prevent proper cooling of the display’s electronics. • Do not block the ventilation holes on the cabinet. • Keep the display dry. To avoid electric shock, do not expose it to rain or excessive moisture. • When turning off the display by detaching the power cable or DC power cord, wait for 6 seconds before re-attaching the power cable or DC power cord for normal operation..
  • Page 4 49BDL4050D Europe – EU Declaration of Conformity This device complies with the essential requirements of the Radio Equipment Directive (2014/53/EU). The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the Radio Equipment Directive (2014/53/EU): - EN60950-1 Safety of Information Technology Equipment - EN 62311 Assessment of electronic and electrical equipment related to human exposure restrictions for electromagnetic fields (0 Hz-300 GHz) - EN 300 328 ( For 802.11b/g/n ) Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band and using spread spectrum modulation techniques; Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive - EN 301 489-17 Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 17: Specific conditions for 2,4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment - EN 301 489-1 Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements Taiwan: 低功率電波輻射性電機管理辦法...
  • Page 5 49BDL4050D This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Canada: Industry Canada statement: This device complies with RSS-247 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Ce dispositif est conforme à la norme CNR-247 d'Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement in Brazil: ANATEL RF STATEMENT Per Article 6 of Resolution 506, equipment of restricted radiation must carry the following statement in a visible location “Este equipamento opera em caráter secundário, isto é, não tem direito a proteção contra interferência prejudicial, mesmo de estações do mesmo tipo, e não pode causar interferência a sistemas operando em caráter primário. ” ANATEL BODY SAR STATEMENT “Este produto atende aos requisitos técnicos aplicados, incluindo os limites de exposição da Taxa de Absorção Específica referente a campos elétricos, magnéticos e eletromagnéticos de radiofrequência, de acordo com as resoluções n°303/2002 e 533/2009.
  • Page 6 49BDL4050D Electric, Magnetic and Electromagnetic Fields (“EMF”) 1. We manufacture and sell many products targeted at consumers, which, like any electronic apparatus, in general have the ability to emit and receive electromagnetic signals. 2. One of our leading Business Principles is to take all necessary health and safety measures for our products, to comply with all applicable legal requirements and to stay well within the EMF standards applicable at the time of producing the products. 3. We are committed to develop, produce and market products that cause no adverse health effects. 4. We confirm that if its products are handled properly for their intended use, they are safe to use according to scientific evidence available today. 5. We play an active role in the development of international EMF and safety standards, enabling us to anticipate further developments in standardization for early integration in its products. Information for U.K. only WARNING - THIS APPLIANCE MUST BE EARTHED.
  • Page 7 49BDL4050D How to connect a plug The wires in the mains lead are coloured in accordance with the following code: BLUE - “NEUTRAL” (“N”) BROWN - “LIVE” (“L”) GREEN & YELLOW - “EARTH” (“E”) 1. The GREEN & YELLOW wire must be connected to the terminal in the plug which is marked with the letter “E” or by the Earth symbol or coloured GREEN or GREEN & YELLOW. 2. The BLUE wire must be connected to the terminal which is marked with the letter “N” or coloured BLACK. 3. The BROWN wire must be connected to the terminal which marked with the letter “L” or coloured RED. Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of the lead - not simply over the three wires. North Europe (Nordic Countries) Information Placering/Ventilation VARNING: FÖRSÄKRA DIG OM ATT HUVUDBRYTARE OCH UTTAG ÄR LÄTÅTKOMLIGA, NÄR DU STÄLLER DIN UTRUSTNING PÅPLATS. Placering/Ventilation ADVARSEL: SØRG VED PLACERINGEN FOR, AT NETLEDNINGENS STIK OG STIKKONTAKT ER NEMT TILGÆNGELIGE. Paikka/Ilmankierto VAROITUS: SIJOITA LAITE SITEN, ETTÄ VERKKOJOHTO VOIDAAN TARVITTAESSA HELPOSTI IRROTTAA PISTORASIASTA.
  • Page 8 49BDL4050D 中国大陆RoHS 根据中国大陆 《电子电气产品有害物质限制使用标识要求》 ， 以下部分列出了产品中可能包含的有害物质的名 。 称和含量 产品中有害物质的名称及含量 有害物质 零部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr (VI)) (PBB) (PBDE) 塑料外框 后壳 CCFL panel 电路板组件* 底座 电源线 其他线材 遥控器 *：电路板组件包括印刷电路板及其构成的零部件，如电阻、电容、集成电路、连接器等。 本表格依据SJ/T 11364的规定编制。 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下. 表示该有害物质至少在该部件的某一均质材料中的含量超出...
  • Page 9 49BDL4050D 中国能源效率标识 根据中国大陆《能源效率标识管理办法》，本显示器符合以下要求 >1.05 能源效率（cd/W) 1 级 能效等级 GB 21520-2008 能效标准 详细有关信息请查阅中国能效标识网： http://www.energylabel.gov.cn/ 《废弃电器电子产品回收处理管理条例》提示性说明 为了更好地关爱及保护地球，当用户不再需要此产品或产品寿命终止时，请遵守国家废弃电器电子产品 回收处理相关法律法规，将其交给当地具有国家认可的回收处理资质的厂商进行回收处理。 設備名稱： 液晶彩色顯示器,型號(型式）：49BDL4050D 限用物質及其化學符號 單元 鉛 汞 鎘 六價鉻 多溴聯苯 多溴二苯醚 (Pb) (Hg) (Cd) (PBB) (PBDE) 塑料外框 ○ ○ ○ ○ ○ ○ 後殼 ○ ○...
  • Page 10 49BDL4050D End-of-Life Disposal Your new Public Information Display contains materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and to minimize the amount to be disposed of. Please find out about the local regulations on how to dispose of your old display from your local Philips dealer. (For customers in Canada and U.S.A.) This product may contain lead and/or mercury. Dispose of in accordance to local-state and federal regulations. For additional information on recycling contact www.eia.org (Consumer Education Initiative) Waste Electrical and Electronic Equipment-WEEE Attention users in European Union private households This marking on the product or on its packaging illustrates that, under European Directive 2012/19/EU governing used electrical and electronic appliances, this product may not be disposed of with normal household waste. You are responsible for disposal of this equipment through a designated waste electrical and electronic equipment collection.
  • Page 11 49BDL4050D According to EU directive 2006/66/EC, the battery can’t be disposed improperly. The battery shall be separated to collect by local service. Após o uso, as pilhas e/ou baterias deverão ser entregues ao estabelecimento comercial ou rede de assistência técnica autorizada.

  • Page 12: Table Of Contents

    49BDL4050D Table Of Contents 4.2. Change Picture Format ............19 4.3. Android Launcher ..............19 4.4. Media Player introduction: ........... 20 Unpacking and Installation ............1 4.5. Browser manual .................22 1.1. Unpacking ..................1 4.6. PDF reader play .................24 1.2. Package Contents ................1 4.7. SmartCMS ..................26 1.3. Installation Notes .................1 4.8.
  • Page 13 49BDL4050D USB device compatibility ............50 Input Mode ................52 Pixel Defect Policy ..............53 9.1. Pixels and Sub-Pixels ...............53 9.2. Types of Pixel Defects + Dot Definition ....53 9.3. Bright Dot Defects ..............53 9.4. Dark Dot Defects..............54 9.5. Proximity of Pixel Defects ........... 54 9.6. Pixel Defect Tolerances ............54 9.7. MURA .....................54 10. Cleaning and Troubleshooting ..........55 10.1.

  • Page 14: Unpacking And Installation

    49BDL4050D Unpacking and Installation 1.1. Unpacking • This product is packed in a carton, together with the standard accessories. • Any other optional accessories will be packed separately. • Due to the size and weight of this display it is recommended for two people to move it. • After opening the carton, ensure that the contents are complete and in good condition. 1.2. Package Contents Please verify that you received the following items with your package content: • LCD display • Remote control with AAA batteries • Power cord (1.8 m) • RS232 cable (1.8 m) • RS232 daisy-chain cable (1.8 m) • Quick start guide Quick start guide • Logo guider & logo • Edge Alignment Kit-1: 2PCS Remote Control and AAA Batteries • Edge Alignment Kit-2: 1PCS...

  • Page 15: Installing And Removing Table Stands (Optional)

    49BDL4050D 1.4. Installing and Removing Table Stands (optional) Step 1- Put on the table Lay a protective sheet on the table, whick was wrapped arround the display when it was packaged, beneach the screen surface so as not to scratch the screen face. Step 2- Fix the tube to the display (by using M6xL41 screws) Please refer to the following drawing to know the position of screws. Step 3- Set up the stand (by using thumb) M6xL41 Screws Thumb screws Table stand...

  • Page 16: Mounting On A Wall

    49BDL4050D 1.5. Mounting on a Wall To mount this display to a wall, you will have to obtain a standard wall-mounting kit (commercially available). We recommend using a mounting interface that complies with TUV-GS and/or UL1678 standard. Protective Sheet VESA Grid Table 1. Lay a protective sheet on a table, which was wrapped around the display when it was packaged, beneath the screen surface so as not to scratch the screen face. 2. Ensure you have all accessories for mounting this display (wall mount, ceiling mount, table stand, etc). 3. Follow the instructions that come with the base mounting kit. Failure to follow correct mounting procedures could result in damage to the equipment or injury to the user or installer. Product warranty does not cover damage caused by improper installation. 4.

  • Page 17: Mounting In Portrait Position

    49BDL4050D 1.6. Mounting in Portrait Position This display can be installed in portrait position. 1. Remove the table stand, if attached. 2. Rotate 90 degrees counter-clockwise . The “ ” logo should be on the RIGHT side when facing the display. 1.6.1. How to use the logo guider for portrait position 1. Put the guider on the lower-left corner of the front bezel of the display. Fold down both of its edges. 2. Peel off the protective film at the back of the “ ” logo sticker. Hold and press the guider with your left hand. Put the “ ” logo sticker with its adhesive side down into the logo hole with your right hand, and press to make it stick tightly onto the front bezel.

  • Page 18: Operating Instructions Of Edge Alignment Kit

    49BDL4050D 1.7. Operating Instructions of Edge Alignment Kit 1.7.1. Installing Edge Alignment Kit • Before install edge alignment kit, displays must be mounted to video wall frame correctly. • Using “Thumb Screw” for easy installing. • Using “Edge Alignment Kit-1” on adjacent two displays. • Install the “Edge Alignment Kit-1” with 2 PCS of M4 screw. • Using “Edge Alignment Kit-2” on adjacent four displays. NOTE: W hen installing the edge alignment kit, please consult a professional technician for proper installation. We accept no liability for installations not performed by a professional technician.

  • Page 19: Parts And Functions

    49BDL4050D Parts and Functions 2.1. Control Panel [ ] button Remote control sensor and power status indicator Use this button to turn the display on or put the display to standby. • Receives command signals from the remote control. • Indicates the operating status of the display without OPS: [MUTE] button - Lights green when the display is turned on Switch the audio mute ON/OFF. - Lights red when the display is in standby mode [INPUT] button - Lights amber when the display enters APM mode Choose the input source. - When {SCHEDULE} is enabled, the light blinks green and red • Used as [ ] button in the On-Screen-Display menu.

  • Page 20: Input/Output Terminals

    49BDL4050D 2.2. Input/Output Terminals AC SWITCH DVI IN DVI-I video input. DVI OUT AC IN DVI or VGA video output. AC power input from the wall outlet. DisplayPort IN / DisplayPort OUT HDMI1 IN / HDMI2 IN DisplayPort video input / output. HDMI video/audio input. MICRO USB IR IN / IR OUT Connector your USB storage device.. IR signal input / output for the loop-through function. MICRO SD CARD RJ-45 Connector MICRO SD CARD.

  • Page 21: Remote Control

    49BDL4050D 2.3. Remote Control [ ] POWER button Power on/off. 2.3.1. General functions [PLAY] buttons Control playback of media files.(for Media Input only) Freeze feature Pasue: Freeze hot key for all inputs content. Play: Unfreeze hot key for all input content. ] SOURCE button Root Menu: Go to Video source OSD. ] HOME button Root Menu: Go to Main Menu OSD. Others: Exit OSD. ] LIST button No function.
  • Page 22 49BDL4050D ] BACK button Return to the previous menu page or exit from the previous function. ] INFO button Show Information OSD. [ ] OPTIONS button No function. [ ] [ ] VOLUME button Adjust volume.

  • Page 23: Id Remote Control

    49BDL4050D 2.3.2. ID Remote Control Press [ID] button. The red LED blinks twice. 1. Press [ID SET] button for more than 1 second to enter the ID You can set the remote control ID when you want to use this remote Mode. The red LED lights up. control on one of several different displays. Press the [ID SET] button again will exit the ID Mode. The red LED lights off. Press the digit numbers [0] ~ [9] to select the display you want to control. For example: press [0] and [1] for display No.1, press [1] and [1] for display No.11. The numbers available are from [01] ~ [255]. 2. Not pressing any button within 10 seconds will exit the ID Mode. 3. If an error pressing of buttons other than the digits occured, wait 1 second after the red LED lights off and then lights up again, then press the correct digits again.

  • Page 24: Remote Control Buttons On Android

    Then if pressing again, playing will be started from the beginning of the file. 4. When playing PDF, video or music, press button to pause playing. 5.All meida or pdf files should be put at the folder, which is named “philips” with sub-folder, under the root directory of the specified storage (internal/USB/SD Card). All sub-folders (video/photo/music/ pdf) are named by media types and shouldn’t be changed. videos: {root dir of storage}/philips/video/ photos: {root dir of storage}/philips/photo/ music : {root dir of storage}/philips/music/ pdfs : {root dir of storage}/philips/pdf/ Note that the root directories of three storages are Internal storage: /sdcard...
  • Page 25 49BDL4050D 2. Move the focus up to the next control or widget such as buttons. After zoom-in or zoom-out, press button to revert the pdf file to the original size. 1. Navigate through menus and choose items. 2. In the content of the web page, these buttons are to control the 1. No functions for ID SET and ENTER on Android scroll bar of the screen. Press or is for moving vertical scroll source. These buttons are only controlled by Scalar. bar up or down. Press or is for moving horizontal scroll 2. For PDF file, enter the page number by pressing number buttons bar left or right.

  • Page 26: Inserting The Batteries In The Remote Control

    49BDL4050D 2.3.4. Inserting the batteries in the remote control The remote control is powered by two 1.5V AAA batteries. To install or replace batteries: 1. Press and then slide the cover to open it. 2. Align the batteries according to the (+) and (–) indications inside the battery compartment. 3. Replace the cover. Caution: The incorrect use of batteries can result in leaks or bursting. Be sure to follow these instructions: • Place “AAA” batteries matching the (+) and (–) signs on each battery to the (+) and (–) signs of the battery compartment. • Do not mix battery types. • Do not combine new batteries with used ones. It causes shorter life or leakage of batteries. • Remove the dead batteries immediately to prevent them from liquid leaking in the battery compartment. Don’t touch exposed battery acid, as it can damage your skin. NOTE: I f you do not intend to use the remote control for a long period, remove the batteries.

  • Page 27: Connecting External Equipment

    49BDL4050D Connecting External Equipment 3.1. Connecting External Equipment (DVD/VCR/VCD) 3.1.1. Using HDMI video input DVD / VCR / VCD HDMI Out [HDMI IN] 3.2. Connecting a PC 3.2.1. Using DVI-I input VGA Out D-Sub 15 pin [DVI-I IN] Audio Out [VGA AUDIO IN]...

  • Page 28: Using Dvi Input

    49BDL4050D 3.2.2. Using DVI input Audio Out DVI Out [DVI IN] [VGA AUDIO IN] 3.2.3. Using HDMI input HDMI Out [HDMI IN] 3.2.4. Using DisplayPort input DisplayPort Out...

  • Page 29: Connecting Audio Equipment

    49BDL4050D 3.3. Connecting Audio Equipment 3.3.1. Connecting an external audio device Audio In Stereo Amplifier [AUDIO OUT] 3.4. Connecting Multiple Displays in a Daisy-chain Configuration You can interconnect multiple displays to create a daisy-chain configuration for applications such as a video wall. NOTE: Maximum 25 displays (5x5) can be used in a DVI daisy-chain configuration. For VGA daisy-chain, Maximum 9 displays can be used. 3.4.1. Display control connection Connect the [RS232 OUT] connector of DISPLAY 1 to the [RS232 IN] connector of DISPLAY 2. DISPLAY 1 DISPLAY 2 [RS-232C]...

  • Page 30: Analog Video Connection

    49BDL4050D Connect the [DP OUT] connector of DISPLAY 1 to the [DP IN] connector of DISPLAY 2. DISPLAY 1 DISPLAY 2 [DP] [DP IN] [DP OUT] [DP IN] Connect the [DVI OUT ] connector of DISPLAY 1 to the [DVI IN] connector of DISPLAY 2. DVD / VCR / VCD DISPLAY 1 DISPLAY 2 [HDMI] [DVI IN] [DVI OUT] [DVI IN] 3.4.3. Analog video connection Connect the [DVI OUT /DVI-I OUT] connector of DISPLAY 1 to the [DVI-I IN] connector of DISPLAY 2. DISPLAY 1 DISPLAY 2 [DVI-I] [DVI-I IN] [DVI/DVI-I OUT] [DVI-I IN]...

  • Page 31: Ir Connection

    49BDL4050D 3.5. IR connection External IR Receiver DISPLAY 1 DISPLAY 2 [IR IN] [IR OUT] [IR IN] NOTE: 1. This display’s remote control sensor will stop working if the [IR IN] is connected. 2. IR loop through connection can support up to 9 displays. 3.6. IR Pass-through Connection DVD / VCR / VCD [IR OUT] [IR IN] (DVD / VCR / VCD) Remote Control...

  • Page 32: Operation

    Settings : go to settings app. 1. Press [ ] SOURCE button. Applications : show all apps. 2. Press [ ] or [ ] button to choose a device, then press [ ] button. Network : set wifi or ethernet. Help : go to http://www.philips.com/c-cs/Signage-Solutions.html 4.2. Change Picture Format You can change the picture format to suit the video source. Each video source has its available picture formats. The available picture formats depend on the video source: 1. Press [ ] FORMAT button.

  • Page 33: Media Player Introduction

    3. Select “Compose” on home page, first you should choose one playlist to edit between FILE 1 and FILE 7. The pencil icon means the playlist is non-empty. 6) Help page: Display QRcode page. 4. If an empty playlist is chosen, the app will guide you to select the media source. All media files should be placed in /philips/ of root directory. For example, - videos in /root/philips/video/ - photos in /root/philips/photo/ - music in /root/philips/music/ 4.4. Media Player introduction: 1.
  • Page 34 49BDL4050D 9. Press play key after you choose desired file, you will plays the media 6. Once you start to edit a playlist, you will see below screen. file directy. Source - files in storage. Playlist – files in playlist. There are 4 icons which map to the keys of remote controller. Option key – launch slidebar Play key – play media file. Info key – show media info. Ok key – select/unselect file. 6-1 In the slidebar, it helps you to do the following: - select all : select all storage files. - delete all : delete all playlist files. - add/remove : update playlist from source. - sort : sort playlist. - save/abort : save or abort playlist. 10. If you make a playlist with all images files, before saving, the app will ask - back : return.

  • Page 35: Browser Manual

    49BDL4050D Pause: Pause file. Fast forward: forward 10 second. Rewind: back 10 second. Stop: Stop file and return to start.If the gif file, it like the pause. 4.5. Browser manual 1. Home page of Browser app, this page has one item: “Settings”. Press Settings then enter next page. 4. Press “Option” then left side will pop up a list Import : Import url list file Export : Export url list file Delete all : Delete all url record on right side Back : left side list will be close. 2.
  • Page 36 49BDL4050D • Import file and url will show on list. • Dialog shows path file will be saved and file’s name. Press “save” button then urls on list will be saved. • File format for import. Format should be like below with file extension “txt”. 5. Press OK then url records will be saved. 4.2 Export: • Click export. 6. On url list page, if you select non-empty item, it will show a dialog to ask edit or play url. If press “Edit”, it will show edit url dialog, if press “Play”, it will show web page of item’s url. • Choose storage.

  • Page 37: Pdf Reader Play

    1. Home page of tpvPdf app, this page has three items: “Play”, “Compose” and “Settings”. 4. If an empty playlist is chosen, the app will guide you to select the Play : select playlist to play. media source. Compose: edit playlist. All media files should be placed in /philips/ of root directory. For Settings: setting play properties. example, - pdfs in /root/philips/pdf/...
  • Page 38 49BDL4050D 8. Select “Settings” on home page, this page has two parts, “Repeat 5. You could edit or delete a non-empty playlist, just choose the Mode” and “Effect Duration”. desired playlist which is with pencil icon. Repeat Mode : play mode. Effect Duration : photo effect duration. 6. Once you start to edit a playlist, you will see below screen. Source - files in storage. Media Hotkey: Playlist – files in playlist. Play : Playback file. There are 4 icons which map to the keys of remote controller. Pause: Pause page. Option key – launch slidebar Fast forward: go to next page, if the page is end of the file, it will go Play key – play media file.

  • Page 39: Smartcms

    Ver. 2: You need to install cms data from local storage for the first time. And server information would be accessed from the local cms content. The options in the settings, including IP, account, and PIN Code, would be disabled. 5) Content: cms content can be stored in the internal storage, SD card, and USB storage. By default, the target is internal. www.philips.com/welcome a. If server is connected, cms data would be downloaded from User Manual (English) SmartCMS server. b.

  • Page 40: Custom App

    49BDL4050D 4.8. Custom app User can set up the application for Customer Source Note: (1) Only display User Installed app. (2) Will not show up system pre-install app. 4.8.1. OSD Menu operation: RCU: Source -> Custom If set up customer APK, PD will open customer app when switch source to Customer mode. If no set up customer APK, PD will show Black screen when switch source to Customer mode. 7) You can delete cms data via System Tools. 2. Set source to SmartCMS, cms data will be downloaded automatically. 4.8.2. Function Introduction 1) If there is no cms data in the server or the network is disconnect. “No Content” will be shown. 2) If you select “SD card” or “USB storage”, “No Content” will be shown when you remove the SD card/USB storage. Save Select the App, click the Save will perform the function of storage.

  • Page 41: Signage Display

    49BDL4050D Signage Display If no customer installed apk, the list will be blank. The list will be blank and “Save””Forget” will be gray and useless. 5.1. Setting Setting main items: (1) Wi-Fi (2) Ethernet (3) Signage Display (4) System Tools (5) Storage (6) Apps (7) Date & time (8) Developer options (9) About If customer installed apk,user can select customer installed apk in list • Case 1: Not set up Custom App case. Customer app will show up and focus on first item automatically. 5.2. Wi-Fi Via Enable/Disable to control Wi-Fi On/OFF. After Enable, the screen After set up, the setting screen display the app name. will list all available WiFi AP. Note : Ethernet will be disable automatically if Wifi turn on and connect to network . • Case 2: Set up Custom App case(there is entity circle to the right of icon) 5.3.

  • Page 42: Dhcp

    49BDL4050D 5.4. Signage Display F. Gateway Address (2) Mac Address Divide into 3 groups: General Settings / Server Settings / Source Settings Note: (1) General Settings WiFi will be disable automatically if Ethernet turn on and connect to A. Signage Display Name network. B. Boot Logo C. Screenshot (2) Server Settings A. Email Notification B. FTP C. Remote Control (3) Source Settings A. Media Player B. Browser C.
  • Page 43 49BDL4050D (2) Will pop-up a window for user to select USB and SD card. No priority issue. Case 2 The users do not settle customized boot log, PD find bootanimation. zip file under SD or USB. The screen will show bootanimation.zip and 2) When boot logo selection, PD will check if there is bootanimation.zip select the first file automatically. under USB and SD card. Case 3 Function introduction: The user settle customized boot logo, The screen will show /data/local/ a. Option description bootanimation.zip /data/local Use customized boot animation file which is copied from SD card or /mnt/external_sd Use boot animation file under SD card /mnt/usb_storage Use boot animation file under USB b. Save Press Save key to save SD card or USB bootanimation.zip to /data/local and set it as boot logo. c. Forget Press Forget key to delete /data/local bootanimation.zip and not show boot logo. 3) If OSD menu Logo item is On or Off, the users cannot choose boot d.
  • Page 44 Note: (2) Just press Back key to exit dialog for set up Time slot of deletion and screenshot: (3) (Start time cannot be newer than End time. It will show error toast. (1) Will delete picture at initial time 0 sec. (2) Will screeshot at first 40 sec. 4)Repeat Set screenshot repeat cycle. User can choose screenshot time frame. 1) Interval (Multiple selection) Set up interval timeframe. 30 mins or 60 mins. 5)Save to 2) Start Time Set up screenshot save path. Internal storage, SD card or USB storage. Set up screenshot start time. Note: Note: Picture storage path: (1) No Cancel, Confirm button in dialog. (1) In root of internal storage/usb storage/sd card, PD will create folder (2) Just press Back key to exit dialog for Set up automatically. (3) Start time cannot be newer than End time. It will show Error toast. (2) The picture will save to philips/Screenshot/.

  • Page 45: Server Settings

    49BDL4050D 6)Purge Screenshots Set up purge timeframe. One day or one week. 5.4.2. Server Settings 1. Email Notification Via Enable/Disable to control Email on/off. After Enable, user can set up Email notification configuration. Gmail safety setting If it can not send manager after setting Gmail, please login your Gmail test account,then access to website: https://www.google.com/settings/security/lesssecureapps. Confirm the “Access for less secure apps”, please set to Turn on 1) SMTP Email Set SMTP configuration.User can set Gmail account or other mail account.User can select other mail account and set up SMTP server, Security type and port itme Note: Password input limitation (1) Length: At least 8 characters 2) Manager Email (2) Format: no limit Email (3) Do not use the port: 5000 Set up Receiver mail account...
  • Page 46 49BDL4050D II. Number 0-9 FTP password display (1) Will show “*” symbol to instead password if set up passwork via remote control. (2) After set up, the password text will show as “*” symbol. Before password input: 3)Test Send Test Mail To test Gmail account receive/send function. 2. FTP Via Enable/Disable to control FTP on/off. After set up, PD can share FTP files. After password input: 1) Account Set up FTP account Set up completed screen: Note: Input limitation (1) Length: 4-20 characters (2) Format: I. English a-z and A-Z II. Number 0-9 3)Storage Path Set up FTP share path.:/storage/emulated/legacy Note:...
  • Page 47 49BDL4050D 4) Port Set up FTP port number. Default: 2121 Note: Input limitation (1) Length: Max 5 characters (2) Range: 1-65535 (3) Format: I. Number 0-9 (4) Do not use the port: 5000 Bind status: (3) Will show Server is unbinded if Remote control server feedback unbinded status. 2. Remote Control Via Enable/Disable to Control Remote Control on/off User can input Server address. If server does not registered, it will ask user for PIN code. Bind status: Bind status: (1) Will show network is disconnected if not yet connects to network. (4) Will show server is binded if Sever binded successfully. Bind status: Bind status: (2) Will show Server is disconnected if network connected but remote control server disconnected.

  • Page 48: Source Settings

    49BDL4050D (1) Open Browser setting page. 5.4.3. Source Settings 1. Media Player Can Edit Media Player play list and effect settings. 3. SmartCMS (1) Open Media Player Player List edit page. 1) Server Set up SmartCMS Server address. 2) Account (2) Open Media Player slideshow effect edit page. Set up SmartCMS account. Note: Input format limitation:ASCII only (refer to 11.2 ASCII Table) 3) PIN Code Set up SmartCMS PIN Code 4) Version Can select Ver. 2 and Ver. 3 • Ver. 2: Using 2.0/2.2 update advertising agreement. • Ver. 3: Using 3.0/3.1 update advertising agreement. In Ver.

  • Page 49: System Tools

    49BDL4050D Please refer to Page 28 Custom app. 5.5. System Tools System tools 3 main functions: (1) Clear Storage (2) Factory Reset (3) Import & Export 5) Content Can select Internal storage/SD card/USB storage. 4. PDF Player Can edit PDF Player Play List and Effect Settings. 5.5.1. Clear Storage The purpose is to clear all data in Philips folders. Divided into 4 mode: (1) Clear all Philips folde (2) Only clear Philips folder under Internal storage. (3) Only clear Philips folder under USB storage. (4) Only clear Philips folder under SD card. (1) Open PDF Player Player List edit page. Pop-up the window to display all folders which can be clear. (2) Open PDF Player effect edit page. 5.5.2. Factory Reset Factory Reset can recover to Factory default settings. 5. Custom app...

  • Page 50: Import & Export

    Press OK to execute Reset function automatically . 5.6. Storage Display current PD Android storage information. 5.5.3. Import & Export SD CARD and USB STORAGE : The function of Import & Export PD settins. Need to insert SD card or USB, the information will show up total space Note: and available of SD card or USB storage. (1) Saved file name: settings.db (2) Will save to Philips folder in storage. 1. Export Will export settings.db to Philips folder under USB or SD card. Note: If no Philips folder exists in USB or SD card, it will be created automatically. 5.7. Apps Display applications information. 2. Import Import settings.db from Philips folder under USB or SD card.

  • Page 51: Date & Time

    49BDL4050D 5.8. Date & time Will be shown in list for user selection if found Note: Via Scalar OSD menu to control Auto Time on/off. (1) Only support Android Full image. When Salar OSD menu turn off Auto time, user can set up Time Zone (2) File name should be update.zip. manually. (3) The file should be located in root of storage. Note: Add new NTP server to display current serverIP . After select update.zip file, PD will restart and start to update. 5.11. Supplementary 5.9. Developer options 5.11.1. Rotation Android developer options. Via Scalar OSD menu to operate Rotation: Home -> Configuration2 -> Rotation -> OSD rotation 1. Landscape After set up Landscape mode, the setting screen will divide into 2 part. Select Left item, right side will display the sub menu. 5.10.

  • Page 52: Ascii Table

    49BDL4050D 5.11.2. ASCII Table...

  • Page 53: Osd Menu

    49BDL4050D OSD Menu 6.2. OSD Menu Overview An overall view of the On-Screen Display (OSD) structure is shown 6.2.1. Picture menu below. You can use it as a reference for further adjusting your display. 6.1. Navigating the OSD Menu Brightness Picture Contrast Sharpness 6.1.1. Navigating the OSD menu using the Screen Black level remote control Tint Audio FORMAT SOURCE Color Noise reduction Medium Gamma selection...

  • Page 54: Screen Menu

    49BDL4050D Color control Press + button to move screen to right. The color levels of red, green, and blue are adjusted by the color bars. Press - button to move screen to left. R: Red gain, G: Green gain, B: Blue gain. V position Smart picture Control Vertical Image position within the display area of the LCD. PQ setting Press + button to move screen to up. PC mode: {Standard} / {Highbright} / {sRGB}. Press - button to move screen to down. Video mode: {Standard} / {Highbright} / {Cinema}. Clock Smart Contrast Press + button to expand the width of the image on the screen the Auto detect black data and white data on content and set suitable right.

  • Page 55: Audio Menu

    49BDL4050D Treble H zoom Expands the horizontal size of the image only. Adjust to increase or decrease higher-pitched sounds. Bass Adjust to increase or decrease lower-pitched sounds. V zoom Volume Expands the vertical size of the image only. Adjust to increase or decrease the audio output level. Audio out (line out) H position Adjust to increase or decrease line out output level. Moves the horizontal position of the image left Maximum volume or right. Adjust your own limitation for the maximum volume setting. This stops the volume from being playing at too loud a level. V position Moves the vertical position of the image up or Minimum volume down. Adjust your own limitation for the minimum volume setting. Mute Auto adjust Turn the mute function on/off. Press “Set” to detect and adjust H position, V position, Clock, Phase Audio source automatically.

  • Page 56: Configuration1 Menu

    49BDL4050D • The PIP function is available only for certain signal source Switch main on top or combinations as shown in the table below. sub on top. Medoa PDF HDMI1 HDMI2 DVI DisplayPort VGA Browser SmartCMS Custom Player Reader HDMI1 HDMI2 PIP size DisplayPort Select the size of the sub picture in the PIP (Picture-in-Picture) mode. Choose from: {Small} / {Medium} / {Large}. Medoa Player PIP position Browser Select the position of the sub picture in the PIP (Picture-in-Picture) SmartCMS PDF mode. Reader Choose from: {Bottom-Right} / {Bottom -Left} / {Top-Right} / {Top- Custom Left}.

  • Page 57: Configuration2 Menu

    Action Choose from : {Off} / { On} Heat status Action DDC/CI Monitor information Action Choose to turn on or off the DDC/CI communication function. DP version DP 1.1 Select {On} for normal use. Light sensor(require Philips accessory CRD41 External Sensor Box) Choose to turn on or off backlight adjustment according to environment Windows selection Main brightness. Con guration 2 Rotation Action Choose from : {Off} / { On} Language English...
  • Page 58 49BDL4050D User logo does NOT support rotation function. Monitor information Monitor ID Set the ID number for controlling the display via the RS232C connection. Each display must have a unique ID number when multiple sets of this Model name 49BDL4050D Serial no CNCA123456789 display are connected. Monitor ID number range is between 1 to 255. Operation hours 46H45M SW Version V0.300 The option are: {Monitor group} / {Tiling matrix} / {Auto ID} Monitor Id DP Version DisplayPort support mode. Monitor Id The options are: Monitor group {DP 1.1} (Default) : DP 1.1 single stream(clone mode) Tiling matrix {DP 1.2 SST}: DP 1.2 Single stream(clone mode) Auto ID...

  • Page 59: Advanced Option Menu

    49BDL4050D 6.2.7. Advanced option menu Tiling H monitors Input resolution Auto Con guration 2 IR control Action V monitors Keyboard control Action Position Advanced option Tiling Action Frame comp. O timer Enable Date and time Action Switch on delay Schedule Action HDMI with One Wire Example: 2 x 2 screen matrix (4 displays)
  • Page 60 49BDL4050D 2. Press [ ] or [ ] button to toggle between {Year}, {Month}, {Day}, {Hour}, {Minute}, and {Daylight saving time}. 3. Press [ ] or [ ] button to adjust all settings except {Daylight saving time}. 4. Press [OK] button to enter the {Daylight saving time} submenu. 5. Press [ ] or [ ] button to select item, press [ ] or [ ] button to adjust.
  • Page 61 49BDL4050D 2. Press [ ] or [ ] button to select a schedule item (item number 1 ~ 7), The options are: {All} / {Failover} and then press [OK] button to mark it the item number. • {All}: DP -> HDMI1 -> HDMI2 -> DVI -> VGA ->Media Player -> Browser -> SmartCMS -> PDF Reader -> Custom. Schedule • {Failover} - Failover 1: User-defined setting. Default:HDMI 1. Today 2015 . 01 . 04 04 : 14 : 01 - Failover 2: User-defined setting. Default:HDMI 1. Input - Failover 3: User-defined setting.
  • Page 62 49BDL4050D Following table is the action for Android board with different power mode. DC off/on : press power button by RC Power mode Mode 1/2 Mode 3/4 in OSD DC off shutdown 1. The current source APK(such as MediaPlayer, Browser, PDF, SmartCMS or Custom) will be closed. 2. Android system will go to the default black launcher. DC on Boot up Android system reboots Scalar FW Update Update scalar FW by USB. Auto FW Update Setup Android FW auto background update time. * Note: When Auto FW update is not OFF, display will work under Mode3 for FW update, but OSD item will not change.

  • Page 63: Usb Device Compatibility

    49BDL4050D USB device compatibility USB Multimedia Codec formats Video Decode Type Video Codec Container Decode Encode Channel Remark Supported Image Size:48x48pixels to 1920x1088pixels Maximum Frame Rate:30fps MPEG1/2 MPEG1/2 File Format: DAT, MPG, VOB, TS Maximum Bit Rate:80Mbps Audio Codec: MP2, MP3 Supported Image Size:48x48pixels to 1920x1088pixels Maximum Frame Rate:30fps Maximum Bit Rate:38.4Mbps File Format: AVI, MKV, MP4, MOV, MPEG-4 MPEG4 Audio Codec: MP2, MP3, AAC,PCM,...
  • Page 64 49BDL4050D Image Decode Type Image Codec Photo Decode Encode Channel Remark JPEG JFIF file format 1.02 File Format: JPG, JPEG Decode: Resolution 48X48 to 8176X8176 (1) Not Support Non-interleaved Scan (2) Software support SRGB JPEG (3) Software support Adobe RGB JPEG File Format: BMP MaximumSupported Image Size:4096x4096 pixels File Format: GIF Resolution No Restriction File Format: PNG Resolution No Restriction NOTES: • Sound or video may not work if the contents have a standard bit rate/frame rate above the compatible Frame/sec listed in the table above. • Video content with a Bit rate or Frame rate larger than the rate specified in the table above can cause choppy video during playback.

  • Page 65: Input Mode

    49BDL4050D Input Mode VGA Resolution: Active Resolution Standard Refresh Rate Pixel Rate Aspect Ratio Stand for Mode Resolution H Pixels V Lines 60 Hz 25.175 MHz 480 72 Hz 31.5 MHz Video Graphic Array 75 Hz 31.5 MHz WVGA 400 70 Hz 33.75 MHz 16:9 Wide Video Graphic Array 60 Hz 40 MHz SVGA 600 Super VGA 75 Hz 49.5 MHz 60 Hz 65 MHz 1024 768 Extended Graphic Array 75 Hz 78.75 MHz WXGA...

  • Page 66: Pixel Defect Policy

    We strive to deliver the highest quality products and use some of the industry’s most advanced manufacturing processes whilst practicing stringent quality control. However, pixel or sub-pixel defects on the PDP / TFT panels used in Plasma- & LCD- displays are sometimes unavoidable. No manufacturer can guarantee that all panels will be free from pixel defects, but Philips guarantees that any Plasma- & LCD- displays with an unacceptable number of defects will be repaired during the warranty period in line with your local guarantee conditions. This notice explains the different types of pixel defects and defines the acceptable defect level for the LCD screen. In order to qualify for repair under warranty, the number of pixel defects must exceed a certain level as shown in the reference table. If the LCD screen is within specification a warranty exchange / claim back will be refused. Additionally, because some types or combinations of pixel defects are more noticeable than others, Philips sets even higher quality standards for those. 9.1. Pixels and Sub-Pixels A pixel, or picture element, is composed of three sub-pixels in the primary colors of red, green and subpixel blue.

  • Page 67: Dark Dot Defects

    Dark Dot Defects Black dot defects appear as pixels or sub-pixels that are always dark or “off ”. These are the examples of black dot defects: One dark dot Two adjacent dark dots = 1 pair of dark dots Two dark dots, specifications defines the minimum distance between dark dots 9.5. Proximity of Pixel Defects Because pixel and sub-pixels defects of the same type that are nearby one another may be more noticeable, Philips also specifies tolerances for the proximity of pixel defects. In the table below you can find specifications about: • Allowed amount of adjacent dark dots = (adjacent dark dots =1 pair of dark dots) • Minimum distance between dark dots • Total no. of all defective dots 9.6. Pixel Defect Tolerances In order to qualify for repair due to pixel defects during the warranty period, a PDP / TFT panel in a Philips Plasma / LCD- display must have pixel or sub- pixel defects exceeding the tolerances listed in the following table.

  • Page 68: Cleaning And Troubleshooting

    49BDL4050D Cleaning and Troubleshooting 10.1. Cleaning Caution When Using the Display • Do not bring your hands, face or objects close to the ventilation holes of the display. The top of the display is usually very hot due to the high temperature of exhaust air being released through the ventilation holes. Burns or personal injuries may occur if any body parts are brought too close. Placing any object near the top of the display could also result in heat related damage to the object as well as the display itself. • Be sure to disconnect all cables before moving the display. Moving the display with its cables attached may damage the cables and thus cause fire or electric shock. • Disconnect the power plug from the wall outlet as a safety precaution before carrying out any type of cleaning or maintenance procedure. Front Panel Cleaning Instructions • The front of the display has been specially treated. Wipe the surface gently using only a cleaning cloth or a soft, lint-free cloth. • If the surface becomes dirty, soak a soft, lint-free cloth in a mild detergent solution.

  • Page 69: Troubleshooting

    49BDL4050D 10.2. Troubleshooting Symptom Possible Cause Remedy No picture is displayed 1. The power cord is disconnected. 1. Plug in the power cord. 2. The main power switch on the back of the 2. Make sure the power switch is switched on. display is not switched on. 3. Connect a signal connection to the display. 3. The selected input has no connection. 4. The display is in standby mode. Interference displayed on the display or audible Caused by surrounding electrical appliances or Move the display to another location to see is the noise is heard...

  • Page 70: Technical Specifications

    49BDL4050D Technical Specifications Display: Item Specifications Screen Size (Active Area) 48.5” (123.2 cm) diagonal LCD Aspect Ratio 16:9 Number of pixels 1920 (H) x 1080 (V) Pixel pitch 0.55926 (H) x 0.55926 (V) [mm] Displayable colors 8bits(D),16.7 Million colors Brightness (typical) 450 cd/m (typ) Contrast ratio (typical) 1100:1 Viewing angle 178 degrees In/Out Terminals: Item Specifications Speaker Output Internal Speakers 10W (L) + 10W (R) [RMS]/8Ω 1 Way 1 Speaker System 82 dB / W / M / 160 Hz ~ 13 KHz Audio Output Phone Jack x 1 0.5V [rms] (Normal) / 2 Channel (L+R) Audio Input 3.5 mm Stereo x 1 0.5V [rms] (Normal) / 2 Channel (L+R) RS232 2.5mm Phone jack x 2 RS232 in / RS232 out RJ-45...
  • Page 71 49BDL4050D General: Item Specifications Internal memory 16GB eMMC (12GB usable) Power Supply AC 100 - 240V, 50 - 60Hz Power Consumption (Max) 121 W Power Consumption (typ.) 67 W Power Consumption (Standby & Off) <0.5W (RS232 in active) Dimensions (Without Stand) [W x H x D] 1097.6 x 633.9 x 45.5 mm Weight (Without Stand) 14.70 Kg Gross Weight (Without Stand) 19.90 Kg Environmental Condition: Item Specifications Temperature Operational 0 ~ 40°C Storage -20 ~ 60°C Humidity Operational 20 ~ 80% RH (No condensation) Storage 5 ~ 95% RH (No condensation) Altitude Operational 0 ~ 3,000 m Storage / Shipment 0 ~ 9,000 m Internal Speaker: Item...
  • Page 72 2016 © Koninklijke Philips N.V. All rights reserved. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license from Koninklijke Philips N.V. Specifications are subject to change without notice.
