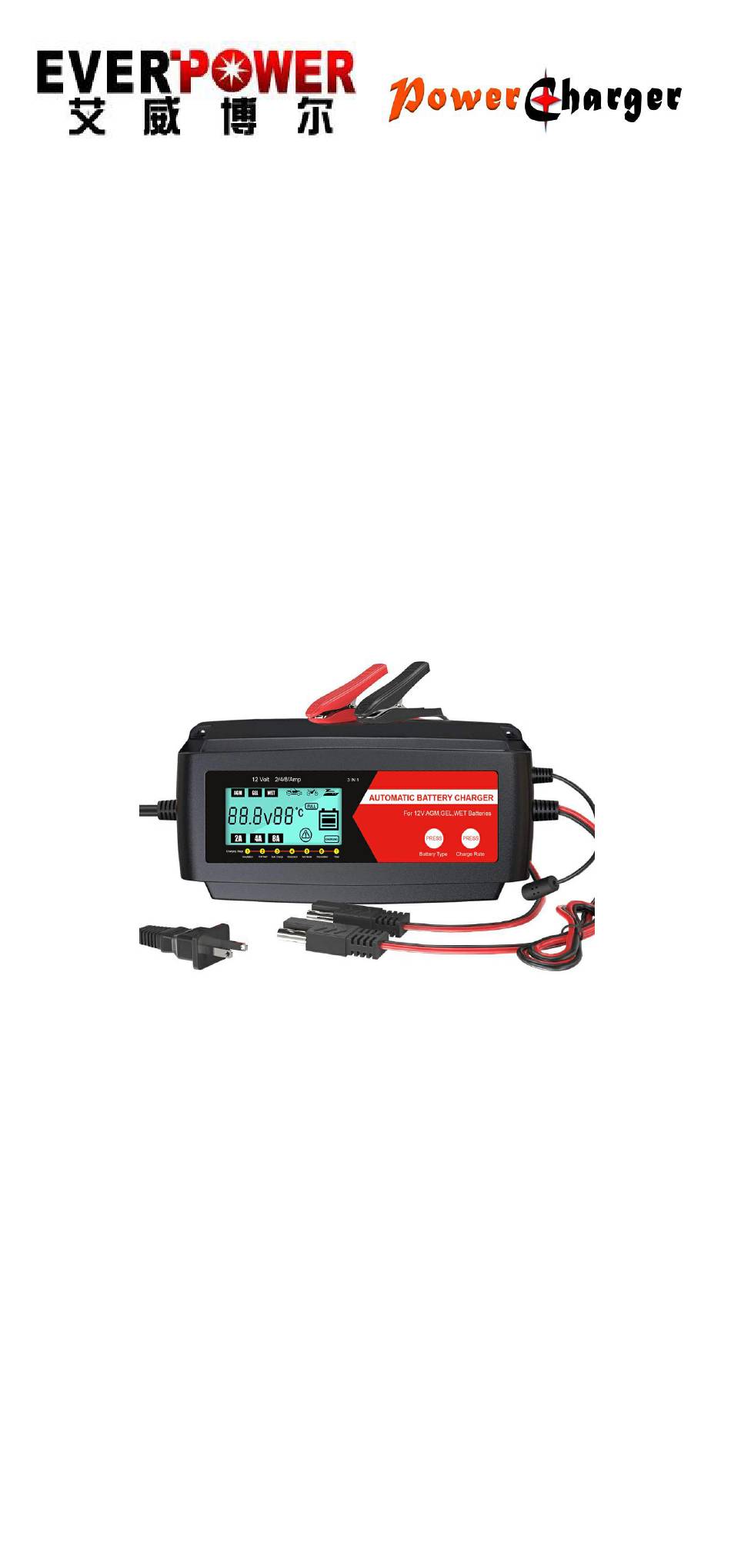

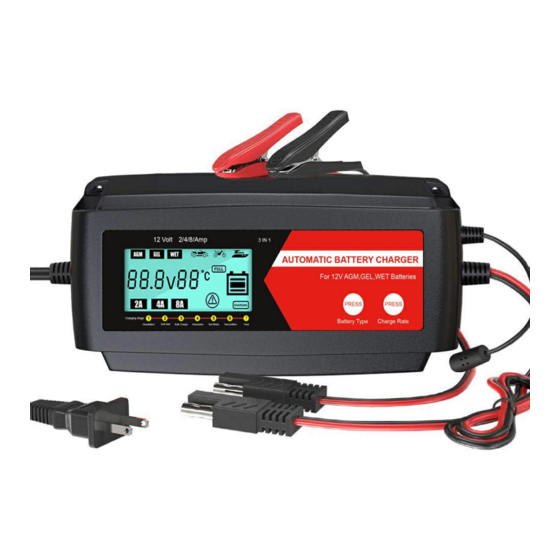

- Page 1 EP12M248L 7 Stage Automatic Smart Battery Charger, esulphuration& Maintainer 12V, 2 / 4 / 8A FOR AGM, GEL AND WET BATTERIES USER MANUAL THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS...
-
Page 2: Important Safety Instructions
Please read this manual and follow the instructions carefully before using the charger. WARNING： The EP12M248L charger is designed to charge 12V lead-acid batteries from 6Ah to 80Ah. Check batter y manufacturer s p ecifications before usin g this char g er. - Page 3 。 Multi Charge Stages: Battery desulphation charging Soft start charging Bulk charging Absorption charging Battery analysis Recondition charging Float & maintenance charging Temperature sensor Temperature & Safety Protection: 。 INTERNAL OVERHEAT PROTECTION: The charger is equipped with built-in overheat and overload electronic circuit protection 。...
-
Page 4: Technical Specifications
1 4.4 V 13.5V WET Batteries For Charging AGM , Sealed , 1 4.7V 13.6V VRLA , Calcium batteries TECHNICAL SPECIFICATIONS: Model EP12M248L Type Smart & Automatic In p ut ( ULVersion) In p ut ( CE 220--240VAC 50/60Hz Output Voltage... -
Page 5: Electrical Parts
ELECTRICAL PARTS: 。 AC power cord: 6 feet SPT-2 with UL plug 。 Output lead: 6 feet SPT-1 2X18AWG with insulated battery clamps. ENVIRONMENTAL CHARACTERISTICS: 。 Operating temperature range: 32 to 104° F 。 Storage temperature range: 10 to 170°F 。... -
Page 6: The Charging Process
STEP 4 – Disconnect Charger from Battery 。 If the battery is out of the vehicle: 。Switch OFF and remove the AC power socket from the outlet. 。Remove the black lead and then the red lead. 。Check electrolyte levels if possible. (As they may need topping up with distilled water after charging) 。If the battery is in the vehicle: 。Switch OFF and remove the AC power socket from the outlet. - Page 7 。FULL LED: Flashing. 。 Recondition charging 。Charger will go into this stage if battery fails Test Mode due to its condition, age or being under charged. 。This stage can recover batteries from deeply discharged state increasing performance and battery life. 。FULL LED: Flashing.
- Page 8 LARGE LCD DISPLAY Convenient to read data in the process of your use-real--time feedback of battery status.
- Page 9 Status Description Green GELBatteryCharging Green Flooded, WET battery Charging Green Sealed, AGM, VRLA & Calcium Battery Charging. Green 20% capacity charging. Green 80% capacity charging. 100% Flash Test Modeor recondition charging. 100% Fully charged, maintaining the battery. Fault Output short –circuit or reverse polarity. Fault Flash Battery is Defective or capacity is too large...
