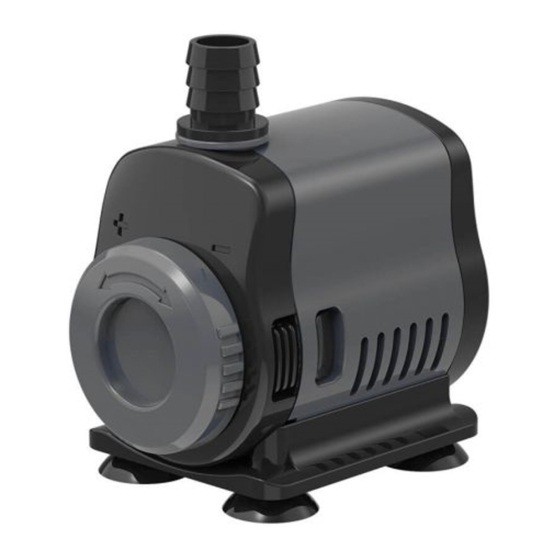

Summary of Contents for All Pond Solutions ACP-500
- Page 1 SUBMERSIBLE PUMP INSTRUCTION MANUAL ACP-500 / ACP-1000 / ACP-1500 / ACP-2500 / ACP-3500 FULLY SUBMERSIBLE ADJUSTABLE FLOW RATE FOR FRESH & SALTWATER TANKS...
- Page 2 To ensure your new submersible pump is set up and running correctly, and to prevent any accidental damage or injury, please read and follow the below instructions carefully before using your product. SAFETY Important! Disconnect the mains electricity supply before attempting any installation / maintenance of any kind.
- Page 3 If the unit shows any signs of water leakage, disconnect the power supply · cord from the wall socket and consult All Pond Solutions or the retailer you purchased this unit from for further advice. If the plug or unit does get wet, DON'T unplug the cord. First, disconnect ·...
- Page 4 ELECTRIC This unit comes complete with a generous supply of 3 core cable, however should any additional cable be required, the use of an approved waterproof cable connector with a proper rating is essential. A cord rated for less amperes or watts than the appliance rating may overheat.
-
Page 5: Maintenance
MAINTENANCE To ensure optimal performance and that your unit functions correctly, regular maintenance is essential. Failure to do so may result in damage to your unit and may invalidate your warranty. We recommend that a regular cleaning and maintenance schedule is followed to ensure responsible fishkeeping. - Page 6 Maintenance & Disassembling Should you need to disassemble your unit for maintenance or repair purposes, please follow the steps below: Unplug the power cord from the mains. Move your unit to a flat stable surface near a sink or other drain. (Be sure to hold upright to avoid spillages.) 1.
-
Page 7: Troubleshooting
Please note: A clogged impeller is often the primary cause of all pump faults, so it is extremely important to clean and inspect your impeller every month to ensure it is functioning correctly and remove any debris. Keeping the impeller clean will improve the performance of your filter and lengthen the life of the motor. - Page 8 USEFUL INFORMATION & TIPS Flow Rate Our ACP pumps have adjustable flow rate. Before setting up and stocking your aquarium you should do some research to determine the preferences of the fish you intend to keep. Fish have certain preferences when it comes to water flow. Lake fish tend to prefer slow-moving waters while species native to mountain streams, rivers and other quickly-flowing bodies of water tend to prefer a stronger current.
- Page 9 COMMON AQUARIUM QUESTIONS Why Is My Aquarium Water Cloudy? Causes: Bacterial blossom - As the new aquarium goes through the initial Ÿ break-in cycle, the water can become cloudy or at least a little hazy. It might take several weeks to establish beneficial bacterial colonies that are able to clear waste from the water.
- Page 10 Phosphates - phosphates result from decaying matter (e.g. fish food) Ÿ and from the water source. If your water naturally has a high level of phosphate, you will need to use a phosphate remover to treat it after water changes. You may also consider reducing the amount of food you give your fish.
-
Page 11: Parts Diagram
PARTS DIAGRAM ACP-500 / ACP-1000 / ACP-1500 & ACP-2500 MODELS SUCTION PADS X 4 FLOW RATE ADJUSTER MOTOR CASING FRONT COVER BOTTOM PLATE HOSETAIL IMPELLER COVER MOTOR CAP IMPELLER ACP-3500 MODEL SUCTION PADS X 4 FLOW RATE ADJUSTER MOTOR CASING... -
Page 12: Specifications
143x98x126 (LxWxH) mm WARRANTY The All Pond Solutions submersible pump range is guaranteed against defects in material or workmanship under normal aquarium usage and comes with 12 months warranty for all electrical parts. The warranty period commences from the date of purchase. - Page 13 No liability is assumed with respect to loss or damage to livestock or personal property irrespective of the cause thereof. Please ensure that only genuine All Pond Solutions components are used when completing a replacement or repair. Spare parts are available at our official website or from your local supplier.
- Page 15 All Pet Solutions Limited Trading as All Pond Solutions Unit 203 Riverside Way, Uxbridge, Middlesex, England, UB8 2YF...
