Ankom X59 Replacing

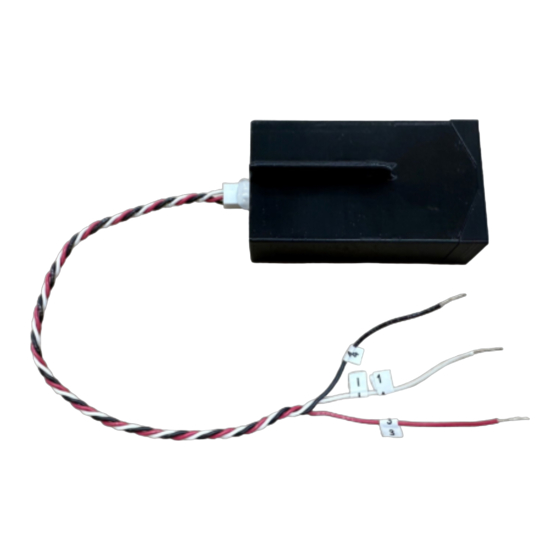

Analog level sensor and fiber optic cable with glass tip

Note: Follow steps 1-8 for level sensor module replacement and 8-12 for Fiber optic cable replacement. (1-12 for

both)

1. Unplug the Instrument.

2. Unscrew the four screws located on each side of the cabinet back. Lift the cabinet back while removing it from

the instrument.

3. Open the electrical box by removing the two screws located on top of the instrument.

4. Loosen the two retainer screws using a flat head screwdriver (figure 1)

5. Gently pull fiber optic cable from level sensor.

ANKOM Technology • 2052 O'Neil Road • Email: service@ankom.com• Phone: 315-986-8090 • Fax: 315-986-8091

and Fiber optic cable with glass tip

XT15/XT15I

Service Procedure

JAD 4/2/2019

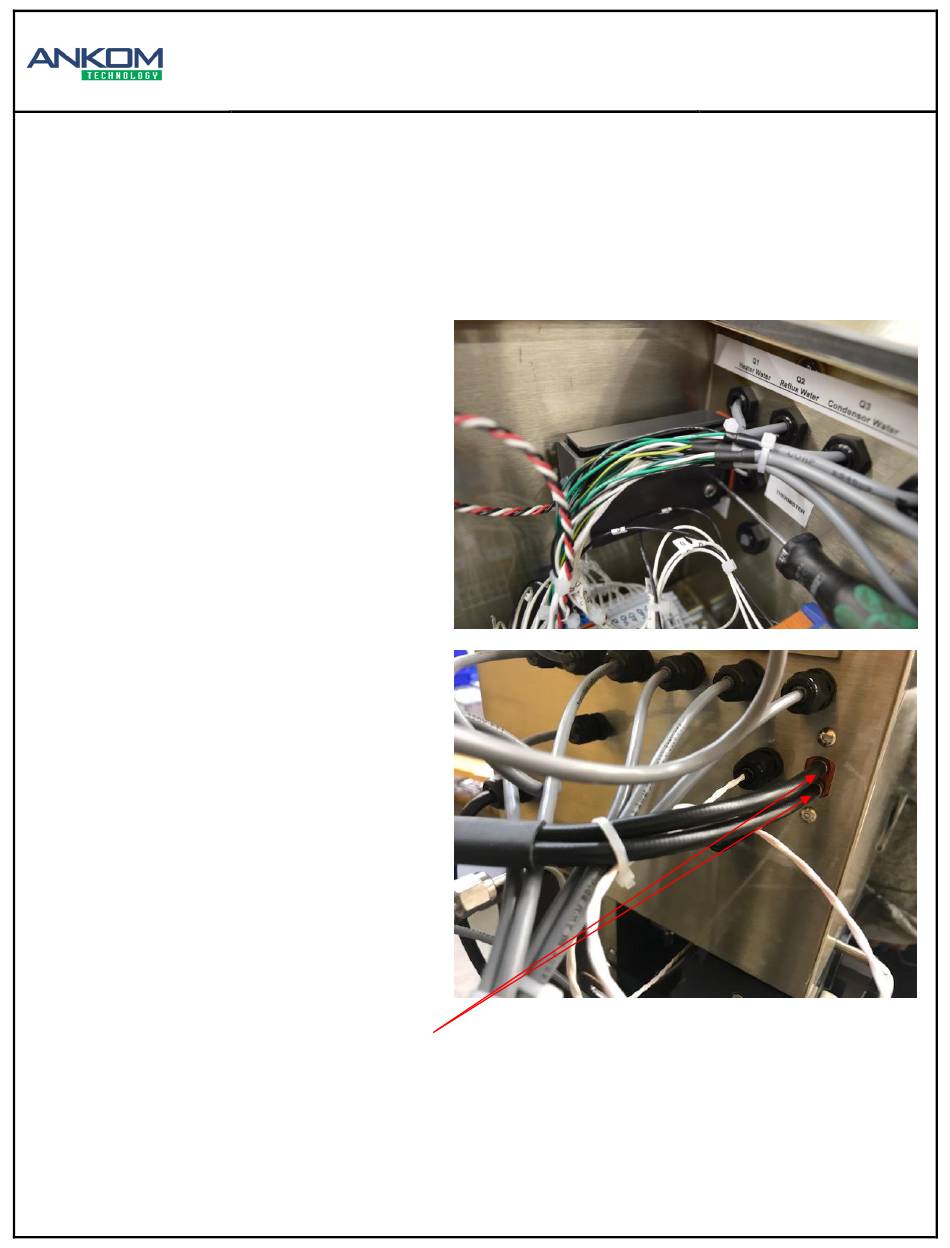

Figure 1

Figure 2

X5S012

pg. 1 of 4
