Summary of Contents for Ross AFR-7812C
- Page 1 Ross Video Limited AFR-7812C Audio DA Mounting Frame User Manual...
- Page 2 The material in this manual is furnished for informational use only. It is subject to change without notice and should not be construed as commitment by Ross Video Limited. Ross Video Limited assumes no responsibility or liability for errors or inaccuracies that may appear in this manual.
-
Page 3: Symbol Meanings
Important Regulatory and Safety Notices Before using this product and any associated equipment, refer to the “Important Safety Instructions” listed below to avoid personnel injury and to prevent product damage. Products may require specific equipment, and/or installation procedures to be carried out to satisfy certain regulatory compliance requirements. - Page 4 Notice — Changes or modifications to this equipment not expressly approved by Ross Video Limited could void the user’s authority to operate this equipment.
-
Page 5: Environmental Information
The crossed-out wheeled bin symbol invites you to use these systems. If you need more information on the collection, reuse, and recycling systems, please contact your local or regional waste administration. You can also contact Ross Video for more information on the environmental performances of our products. -
Page 7: Installation

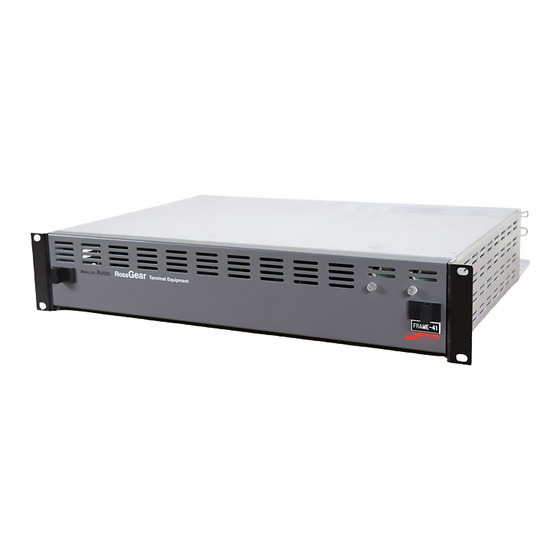

Congratulations on choosing a RossGear AFR-7812C Audio DA Mounting Frame. Your AFR-7812C is part of a full line of products within the RossGear Terminal Equipment family of products, backed by Ross Video’s experience in engineering and design expertise since 1974. - Page 8 It is important to refer to the table on the rear of the frame to determine the proper connections for the Mono or Stereo amplifiers. The following features are included for the AFR-7812C: •...
- Page 9 If any items are missing or damaged, contact your sales representative or Ross Video. Mechanical Installation The AFR-7812C mounts in the rack cabinet by means of four screws through the front mounting flanges. This should normally be sufficient to carry the load, including weight of cables. In some cases, (mobile trucks, etc.) it may be desirable to also support the rear of the frame.
- Page 10 Figure 1.2 Frame Stacking Power Supply PS-7813 The AFR-7812C frames support two independent 20 volt PS-7813 power supplies for redundancy. Turning the power supply off before inserting or removing it from the frame will ensure longer connector life.
- Page 11 B OUT 1 B IN OUT 8 OUT 7 OUT 6 OUT 5 OUT 4 MONO Figure 1.4 Frame Mating Terminals This completes the procedure for wiring your audio input and output cables. AFR-7812C User Manual (Iss. 02) Installation • 1–5...
-
Page 12: Technical Specifications
+/- 20V Output Current 1.0A Line Regulation 350mV change over full input range Output Ripple <60mVpp For safety reasons, Ross power supplies do not fit into the rack frames of other manufacturers. Height 3.5” (88mm) Width 19” (483mm) Rack Frame Depth 15.75”... -
Page 13: Service Information
This chapter contains the following sections: • Warranty and Repair Policy Note — All Ross Video Limited terminal equipment frames include one power supply. A redundant power supply may be installed in all two rack unit frames, if required. AFR-7812C User Manual (Iss. 02) -
Page 14: Warranty And Repair Policy
FIVE (5) years from the date of shipment from our factory. In the event that your AFR-7812C proves to be defective in any way during this warranty period, Ross Video Limited reserves the right to repair or replace this piece of equipment with a unit of equal or superior performance characteristics. - Page 15 Notes:...
- Page 16 P.O. Box 880, Ross Video Incorporated Ogdensburg, New York, USA 13669-0880 Visit Us Please visit us at our website for: • Company information • Related products and full product lines • On-line catalog • News • Testimonials Ross Video Product Number: 7812CDR-004-02...
