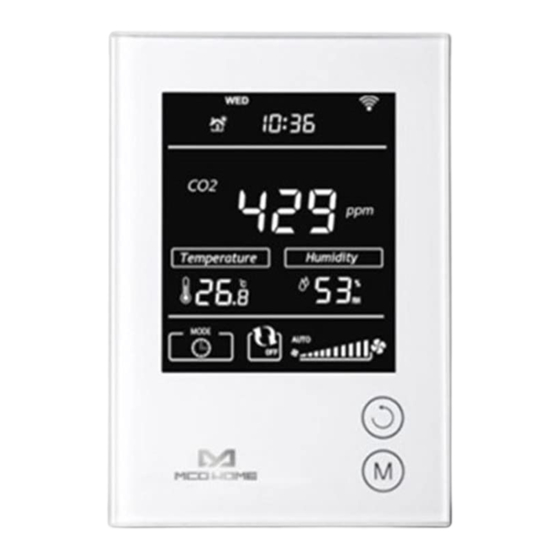

MCOHome CO2 Monitor is an air quality detector which compatible with Z-Wave technology, it
is mainly used to monitor CO2 concentration in industrial, agricultural, and residence environment,
while monitoring the indoor temperature, humidity and VOC (optional) air quality. Device can be
included into any Z-Wave network, and is compatible with any other Z-Wave certified devices.
Power Supply：DC12V
CO2 display range: 0-2000ppm
Default threshold:1000ppm (adjustable)
Temperature range：-9.0～50 ℃
Humidity range: 0%～99%RH
Installation: Wall-mounted (Vertical)
To protect yourself and others from danger and to protect the device from damage, please read the
safety information before using it.
Important!
A qualified electrician with the understanding of wiring diagrams and knowledge of electrical
safety should complete installation following the instructions.
Before installation, please confirm the real voltage complying with the device's specification.
Cut off any power supply to secure the safety of people and device.
During installation, protect the device from any physical damage by dropping or bumping. If
happens, please contact the supplier for maintenance.
Keep the device away from acid-base and other corrosive solids, liquids, gases, to avoid damage.
Avoid overexertion during operation, to protect device from mechanical damage.
Read all instructions and documentation and save for future reference.
Location:
Device is suggested to be installed indoor, a place with around 1.5m height above the floor where
represents the average CO2 concentration. It should be away from direct sunlight, any cover, or any
heat source, to avoid false signal for temperature control.
MCOHome Technology Co., Ltd
www.mcohome.com
C
O
2
M
o
n
i
t
o
r
C
O
2
M
o
n
i
t
o
r
MH9-CO2-WD
Introduction
Specification
Work environment:-10~+8℃ 0-90%RH
(Non-condensation)
Dimension：90* 130*28mm
Hole Pitch：60mm or 82mm
Housing: Tempered glass+ PC Alloy
Safety Information
Installation &Wiring
1
User Manual
Advertisement
Table of Contents
Related Manuals for MCO Home MH9-CO2-WD
Summary of Contents for MCO Home MH9-CO2-WD
- Page 1 User Manual MH9-CO2-WD Introduction MCOHome CO2 Monitor is an air quality detector which compatible with Z-Wave technology, it is mainly used to monitor CO2 concentration in industrial, agricultural, and residence environment, while monitoring the indoor temperature, humidity and VOC (optional) air quality. Device can be included into any Z-Wave network, and is compatible with any other Z-Wave certified devices.
- Page 2 www.mcohome.com User Manual Notice! 1. Device must be wall-mounted vertically. Do not lay it flat or upside down while working. 2. Do not mounted it in a wind gap, or cover its bottom, which may affect the detected data. Step 1: Separate Panel and Bottom case by removing the screw at the bottom of device. Insert all wires into the right terminals and tighten screws.
- Page 3 www.mcohome.com User Manual Operation Local time setting In normal display interface, long press K1 will enter the local time modification interface. “Week” starts flashing, press K2 can switch among “MON-TUE-WED-THU-FRI-SAT-SUN”. Choose one then press K1 will save the setting. ...
- Page 4 www.mcohome.com User Manual Association Group Device supports 2 association groups: Group 1 is for “Notification” purpose, which can add up to 5 Node ID. Device works in “Push” mode in “Notification Command Class”. Use “Configuration “can set the threshold of CO2 Notification report.
