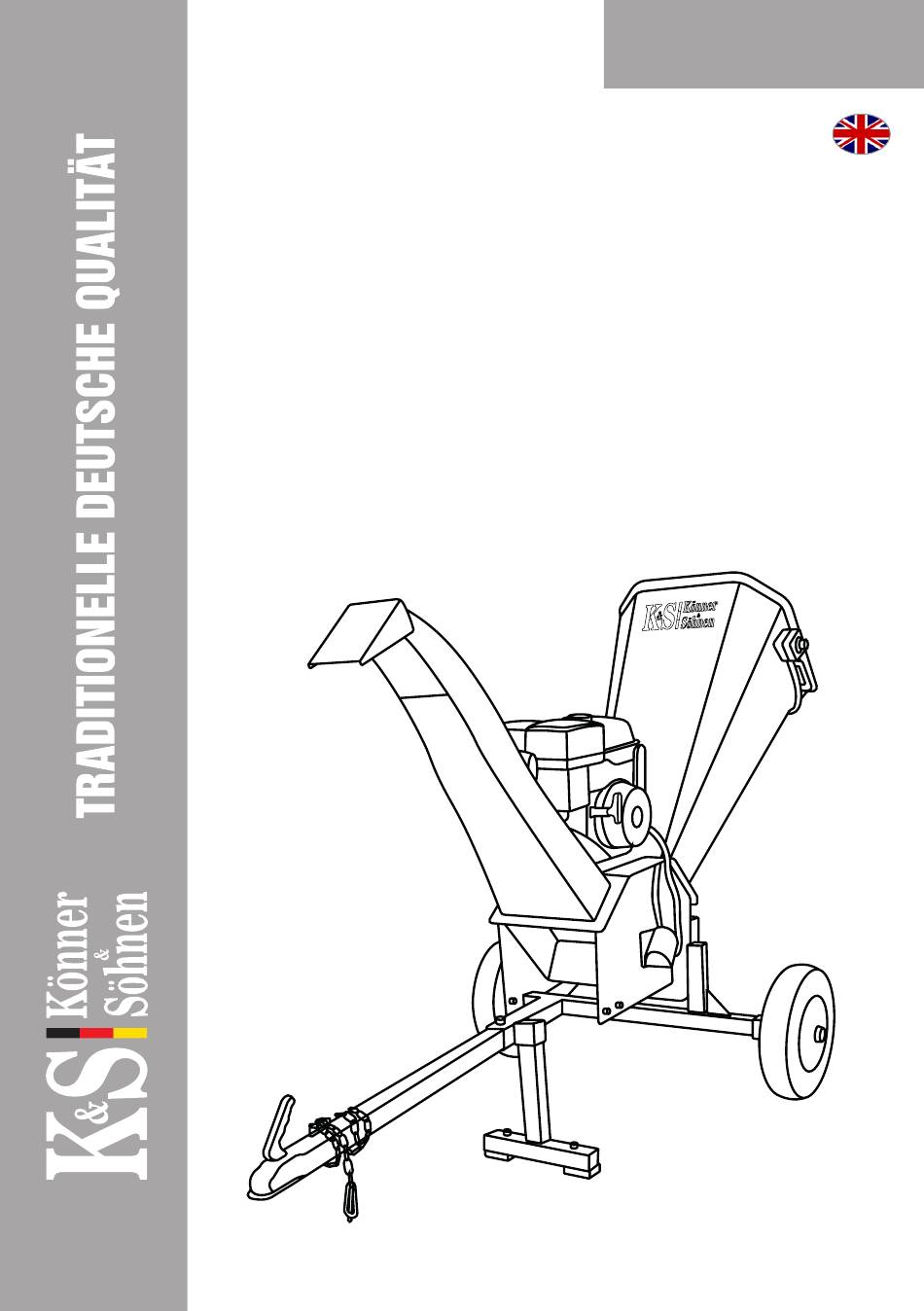

- Page 1 Owner’s Manual Please, read this manual carefully before use! Wood chipper shredder KS 400WS KS 500WS KS 700WS...
-
Page 2: Important Safety Information
INTRODUCTION Thank you for your purchase of Könner & Söhnen products. This manual contains a brief description of safety, use and debugging. More information can be found on the official manufacturer’s website in the support section: ks-power.de/betriebsanleitungen. You can also go to the support section and download the full version of the manual by scanning the QR code, or on the website of the official importer of Könner &... - Page 3 • Dress appropriately when operating the chipper shred- carcinogen and can cause cancer and severe respiratory der. Always wear sturdy footwear and safety goggles. illnesses. Never wear sandals, sneakers or open shoes, and never • Always use hearing protection when operating ma- operate the chipper shredder with bare feet.
-
Page 4: Main Overview
MAIN OVERVIEW Model KS 400WS Model KS 400WS 1. Hopper 7. ON/OFF Switch 2. Motor 8. Throttle 3. Chip Outlet 9. Fuel Tank Cap 4. Chipper Funnel 10. Air Cleaner 5. Choke 11. Exhaust 6. Fuel Cock 12. Pull Start Handle... - Page 5 MODEL KS 400WS ASSEMBLY DO NOT attempt to start this machine until all assembly has been completed. Serious personal injury and damage ATTENTION – DANGER! to the machine could occur. STEP 1. STEP 1. Tip the chipper/shredder over and remove the four bolts shown in Pic.1. DO NOT turn the chipper/ shredder over once it is full of oil and gas.
- Page 6 MODELS KS 500WS, KS 700WS ASSEMBLY STEP 1 STEP 1 Knob Hex bolts M8x20 Flat Washer Ø8 R pin Non Metallic Insert Hex Nut M8 STEP 2 STEP 2 Hex bolts M10x70 Non Metallic Insert Flat Washer Ø24 Hex Nut M10 М24 Nut Flat Washer Ø10 Dust Cover...
-
Page 7: Working Process
STEP 3 STEP 3 Non Metallic Insert Hex Nut M8 Flat Washer Ø8 Hex bolts M10x80 Flat Washer Ø10 Hex bolts Non Metallic Insert Hex Nut M10 M8x25 STEP 3 STEP 3 Hex bolts M8x20 Hex bolts M10x30 Flat Washer Ø8 Non Metallic Insert Hex Nut M8 Flat Washer Ø10 Non Metallic Insert Hex... - Page 8 It is easy to cause injury due to blades are sharp enough. Sharpen or adjust blades should go to indicate maintenance point. The recommendation of blade intervals is 1-2min. CHIPPER OPERATION KS 400WS CHIPPER OPERATION KS 400WS The chipper is designed to handle tree limbs and branches up to approximately 3”...
-
Page 9: Operation
2. Insert the dipstick without screwing it in. FILL TO HERE FILL TO HERE 3. Check the oil level by a mark on the oil dipstick. 4. Add oil if its level is below the mark on the oil dipstick. 5. -
Page 10: Troubleshooting
Don’t overload the shredder by dumping large volumes of IMPORTANT! material into the hopper opening. STORAGE STORAGE The machine must be stored in a dry, well-ventilated and dust-free indoor area. Do not store a fueled unit in an enclosed structure. NOTICE •... - Page 11 Each 3 months Before each use First start or 20 PROCEDURE Every month or after 50 operating hours working hrs Check Motor oil Replace Check (replacement Blades if necessary) All parts, Check incl. bearing, belt 1-2 times a month PROCEDURE Check Air filter Clean out...
- Page 12 REPLACING BLADES FOR MODEL KS 400WS REPLACING BLADES FOR MODEL KS 400WS Sharpen or replace the blades as soon as the chipping performance begins to deteriorate, or if you notice dings, chips, or cracks. To perform this procedure: 1. Turn off the machine, allow all moving parts to come to a complete stop, and disconnect the spark plug wire! 2.
- Page 14 CONTACTS Deutschland: DIMAX International GmbH Deutschland, Hauptstr. 134, 51143 Köln, www.ks-power.de Ihre Bestellungen Ihre Bestellungen orders@dimaxgroup.de Kundendienst, technische Fragen Kundendienst, technische Fragen und Unterstützung und Unterstützung support@dimaxgroup.de Garantie, Reparatur und Service Garantie, Reparatur und Service service@dimaxgroup.de Sonstiges Sonstiges info@dimaxgroup.de Polska: DIMAX International Poland Sp.z o.o.
