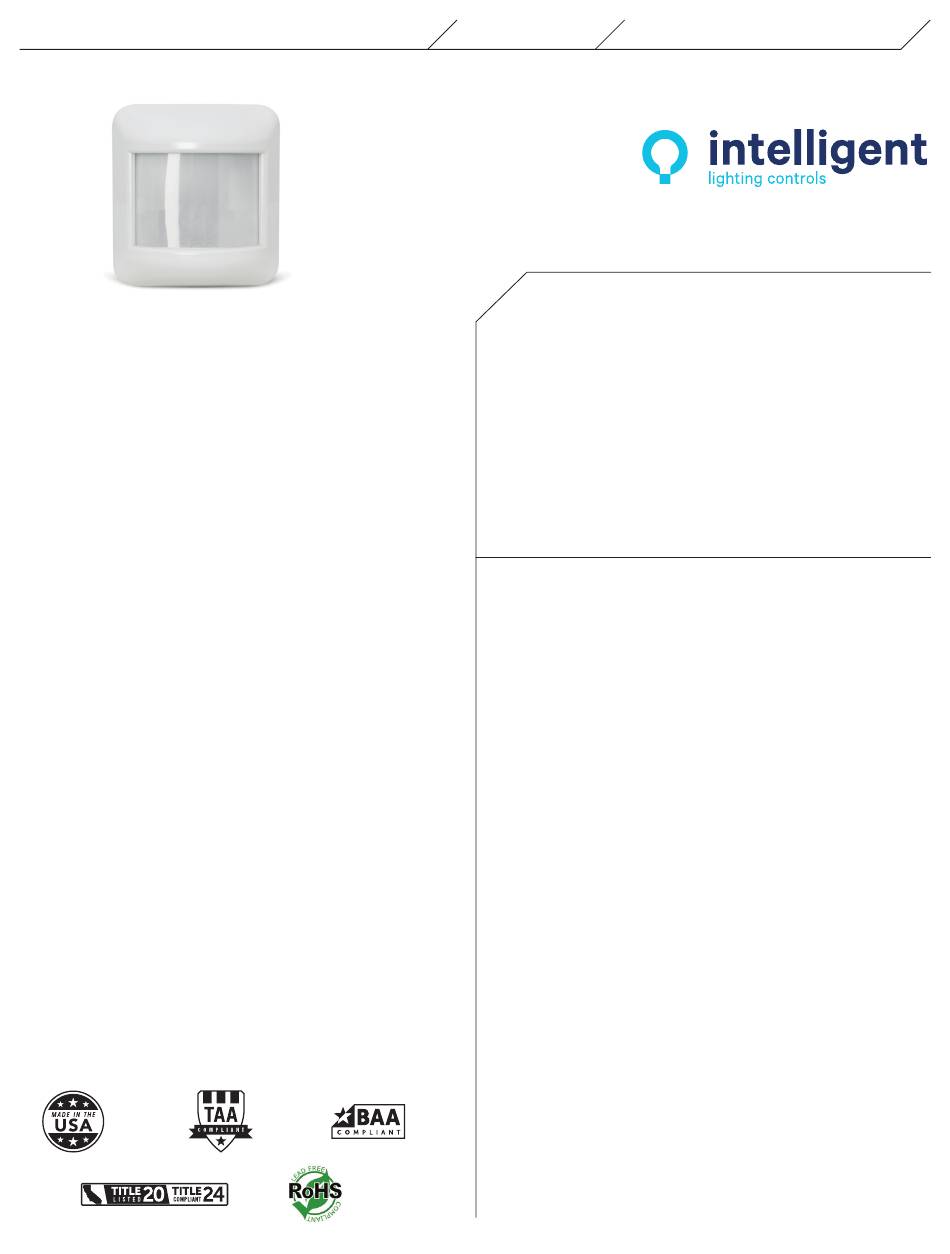

Intelligent Lighting Controls WIDEVIEW Manual

Catalog Number:
WIRELESS
WIDEVIEW & HALLWAY
OCCUPANCY SENSOR
BATTERY POWERED
OVERVIEW
The Intelligent Lighting Controls wireless wide view and hallway occupancy
sensors are a simple, yet reliable battery powered control solution. Preferred by
contractors for their flexible mounting methods, ILC wireless sensors greatly
reduce total installation time and wireless pairing fuss. Requiring just a few
seconds per device, ILC wireless sensors can be linked to one or more wireless
load controllers (such as the ILC-SWX-851 wireless wall switch, or a ILC-
SWX-950 series wireless power pack). Additionally, these sensors can be
configured to work in applications with other wireless or wired ceiling, corner, or
hallway sensors
to provide extended coverage in large or irregularly shaped spaces. As with all ILC
products, the latest passive infrared technology and digital signal processing
techniques are used to provide unmatched occupant detection performance and
energy savings.

BASIC OPERATION

Sensors detect movement in the infrared energy that radiates from occupants as
they move within the device's field-of-view. Once occupancy is detected, the
sensor immediately signals a wirelessly linked load controller (e.g. power pack) to
switch on or dim up the connected lighting. At regular intervals, the sensor will
retransmit its latest occupancy status such that the load controller can keep lights
on for occupants during brief periods of inactivity, while returning the space to an
energy saving lights off (or dim) state once no longer occupied.
Date: Project:

FEATURES

Pairs in Seconds with Wireless Controllers
Ã
Passive Infrared (PIR) Detection
Ã
Wide View or Hallway (Long Range) Coverage Pattern Options
Ã
10 Year Battery Life Design
Ã
Compact Size and Matte Finish
Ã
Five Contractor Friendly Mounting Methods
Ã
Mounting Nipple Attachment with Integrated Hole Saw
Ã
Convenient Test Mode
Ã

SPECIFICATIONS

ELECTRICAL & WIRELESS
BATTERY TYPE
Requires one CR123(A) Lithium Battery
BATTERY LIFE
Designed for 10 Year Life
(under default settings)
Non-Volatile Memory (saves all
settings regardless of battery state)
Blink Warning @10% Life
RANGE
80' line of site w/o obstruction (walls)
40' with obstruction (walls/floors)
FREQUENCY
915 MHz ISM Band
WIRELESS LINKING
Simple 3 sec. Push Button Process
SECURITY
All Wireless Data is Encrypted
ENVIRONMENTAL
OPERATING TEMP
32°F to 122°F (0°C to 50°C)
RELATIVE HUMIDITY
0-95% Non-Condensing,
Indoor Use Only
CODE COMPLIANCE
These sensors can be used to meet
ASHRAE 90.1, IECC, & Title 24 energy
code requirements.
PHYSICAL
SIZE
2.875" H x 2.75" W x 3.25"D
(7.30 x 6.98 x 8.25 cm)
WEIGHT
4.75 oz.
COLOR
White
LED INDICATION
Motion Detection (when in Test Mode)
Wireless Linking (Pairing)
OPERATION
OPERATING MODES
Occupancy & Vacancy Modes -
Configured on Linked Controller
COMPATIBLE LOAD CONTROLLERS
ILC-SWX-851 Wall Switch
ILC-SWX-950 Series Power Packs
WIRELESS TEST MODE
Button Toggles On/Off
Wirelessly Linked Loads
COVERAGE TEST MODE
White LED Illuminates Upon Detected
Occupancy
TIME DELAY OPTIONS
Configured at Load Controller(s)
1, 5, 10, 15, 20, 30 min.
