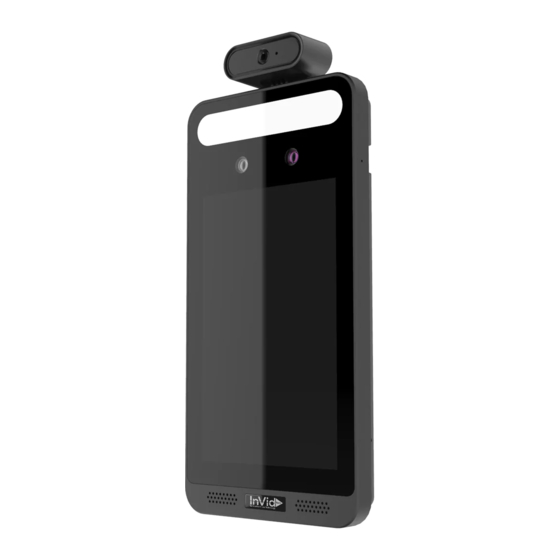

- Page 1 PAR-P2TEMPTABLET 2Megapixel Temperature Measurement& Face Recognition Terminalx User Manual...
- Page 2 Temperature Measurement & Face Recognition Terminal User Manual Please read this instruction carefully before operating the unit and keep it for further reference Notes on Safety This product is intended to be supplied by a Listed Power Unit, marked with 'Limited Power Source', 'LPS' on unit, output rated minimum 12V/1 A, no more than 2000m altitude of operation and Tma=60 Deg.C.
- Page 3 Temperature Measurement & Face Recognition Terminal User Manual Disclaimer With regard to the product with internet access, the use of product shall be wholly at your own risks. Our company shall be irresponsible for abnormal operation, privacy leakage or other damages resulting from cyber attack, hacker attack, virus inspection, or other internet security risks;...
- Page 4 Temperature Measurement & Face Recognition Terminal User Manual Regulatory Information FCC Information 1.FCC compliance The products have been tested and found in compliance with the council FCC rules and regulations part 15 subpart B. These limits are designed to provide reasonable protection against harmful interference.
-
Page 5: Table Of Contents
Temperature Measurement & Face Recognition Terminal User Manual rules and regulations of REACH. For more information of REACH, please refer to DG GROWTH or ECHA websites. Table of Contents Introduction ........................1 Login &Network Connection ..................2 Login .......................... 2 Network Configuration.................... - Page 6 Temperature Measurement & Face Recognition Terminal User Manual 6.3 Alarm Configuration ....................38 6.3.1 Exception Detection ....................38 6.3.2 SD Card Full ......................39 6.3.3 SD Card Error ......................39 6.3.4 IP Address Conflict....................40 6.3.5 Cable Disconnection....................40 6.3.6 Alarm In ........................41 6.3.7 Alarm Out ........................
-
Page 7: Introduction
Temperature Measurement & Face Recognition Terminal User Manual Introduction This series of product is specially designed and developed for face recognition and temperature measurement applications, featuring non-contract temperature measurement, high performance and reliability, faster recognition and higher accuracy rate. Based on deep-learning algorithm, it combines temperature measurement, identity authorization and access control. -
Page 8: Login &Network Connection
Temperature Measurement & Face Recognition Terminal User Manual Login &Network Connection 1.1 Login After the device is powered on and connected to the LAN, you will see the following interface. Tap the menu button to pop up a login box. Enter the username and password and tap “OK” to enter the main menu page as shown below. -
Page 9: Network Configuration
Temperature Measurement & Face Recognition Terminal User Manual 1.2 Network Configuration 1.2.1 LAN Network connection: There are two ways to set the network configuration. Configuring the network via the terminal In the main menu page of the terminal, tap “Network Config” to go to the network config interface. - Page 10 Temperature Measurement & Face Recognition Terminal User Manual Configuring the network via the IP Tool ①Make sure the PC and the terminal are connected to the LAN and the IP-Tool is installed in the PC from the CD. ② Double click the IP-Tool icon on the desktop to run this software as shown below: ③...
-
Page 11: Wan
Temperature Measurement & Face Recognition Terminal User Manual Enter the username and password in the login window to log in. The default username is “admin”; the default password is “123456”. The system will pop up the above-mentioned textbox to ask you to change the default password. It is strongly recommended to change the default password for account security. - Page 12 Temperature Measurement & Face Recognition Terminal User Manual ① Make sure the camera is connected to the local network and then log in the camera via LAN and go to Config Network Port menu to set the port number. Port Setup ②...
- Page 13 Temperature Measurement & Face Recognition Terminal User Manual port is changed to 81, please enter “192.198.1.201:81” in the address bar of web browser to access). Access through PPPoE dial-up Network connection Access the camera through PPPoE auto dial-up. The setup steps are as follow: ①...
- Page 14 Temperature Measurement & Face Recognition Terminal User Manual ① Go to Config Network Port menu to set the port number. ② Go to Config Network TCP/IP menu to set the IP address. Check “Use the following IP address” and then enter the static IP address and other parameters. ③Open the IE browser and enter its WAN IP and http port to access.
-
Page 15: Temp Reading & Fr Config
Temperature Measurement & Face Recognition Terminal User Manual Temp Reading & FR Config 3.1 Temperature Measurement Settings You can configure temperature measurement via the terminal (panel/tablet) or Web Client. Here we take the temperature measurement settings via Web Client for example. After the network is connected, go to the web client. -
Page 16: People Management
Temperature Measurement & Face Recognition Terminal User Manual If “Normal Temperature” is selected, alarm out will be triggered when the body temperature measured is within the normal temperature range. If “Warning Temperature is out of range” is selected, alarm out will be triggered when the body temperature is higher or lower than the set value. - Page 17 Temperature Measurement & Face Recognition Terminal User Manual ② Tap “+” to enter the “Add User” page. ③ Set username, gender, group type, ID number, verification mode, etc.
- Page 18 Temperature Measurement & Face Recognition Terminal User Manual ④ Tap to add a face picture. The detailed face adding requirements refer to the descriptions of Adding Face. ⑤ Tap to save settings. Adding Face： Face the camera and ensure your face picture in the middle of the face collecting window. Keep your expression naturally when collecting face pictures.
-
Page 19: Face Database Management Via Web Client
Temperature Measurement & Face Recognition Terminal User Manual For more face addding method, please refer to 3.3 Face Database Management. 3.3 Face Database Management via Web Client In the live interface of Web Client, click Config Face Face Database Management. This will enter the following interface. - Page 20 Temperature Measurement & Face Recognition Terminal User Manual ② Adding multiple face pictures at a time Click and then add multiple face pictures once according to the prompted rules. Here is the example of the people information file (.csv). Put the people information file and images into the same directory as shown on the below left. Click “Browse”...
-
Page 21: Face Match Settings
Temperature Measurement & Face Recognition Terminal User Manual database). After adding face pictures, you can search them by name, gender, ID number and so on. Click “Modify” to change people information and click “Delete” to delete this face picture. 3.4 Face Match Settings In the face config page of the panel, tap “Match Settings”... - Page 22 Temperature Measurement & Face Recognition Terminal User Manual The setting steps are as follows. 1. Go to Config Face Face Match Config interface. 2. Enable “Liveness Detection”. If enabled, the system can distinguish real faces from non-real face spoof attacks. 3.
-
Page 23: Mask Detection
Temperature Measurement & Face Recognition Terminal User Manual Deduplication Period: In the set period, delete the repeated comparison results. Similarity threshold: When the similarity of the captured face picture and the face picture added into the face database exceeds the similarity threshold, alarms will be triggered. Send the face comparison data: if it is disabled, the face comparison result will be displayed neither on the screen of the terminal nor on the live interface of the web client. -
Page 24: Live View
Temperature Measurement & Face Recognition Terminal User Manual Live View 4.1 Temperature Measurement& Face Recognition View 4.1.1 Temperature Measurement Requirements For accuracy temperature measurement, here are some recommendations. The detected person should place their face within the pre-defined face detection area. The forehead should be in the middle of the “Temp zone”... -
Page 25: Temperature Measurement& Face Recognition View
Temperature Measurement & Face Recognition Terminal User Manual sensor) to get the accurate value. Perspiration on the forehead may interfere with the temperature reading. It should be wiped off before scanning. After strenuous exercise, please have a rest and then test the body temperature. -
Page 26: Live View Via Web
Temperature Measurement & Face Recognition Terminal User Manual If “Trigger Alarm Audio” is selected, you will hear the alarm voice. The system will measure the temperature and compare the captured face at the same time as shown below. When the captured face is not added to the face database or the similarity is lower than the pre- defined value, it will display “Match Failure”... - Page 27 Temperature Measurement & Face Recognition Terminal User Manual The following table is the instructions of the icons on the live view interface. Icon Description Icon Description Original size Start/stop local recording Fit correct scale Zoom in Auto (fill the window) Zoom out SD card recording indicator Full screen...
- Page 28 Temperature Measurement & Face Recognition Terminal User Manual View the comparison details In area ②, click the compared face picture to bring up the following window. In this interface, you can view the detailed comparison information. Add captured face pictures to the face database Click a captured picture in area ①.
-
Page 29: Access Control Settings
Temperature Measurement & Face Recognition Terminal User Manual Access Control Settings 5.1 Door Lock Settings Click Config Access Control Door Lock to go to the following interface. After the access control device is connected to the terminal (panel/tablet), you can set unlocking mode in this interface. -
Page 30: Access Control System Settings
Temperature Measurement & Face Recognition Terminal User Manual For example: John, a person in the allow list, his unlocking mode is set to “Face Comparison and Password” and “Normal Temperature” is checked in the door lock configuration interface. After scanning his face, only when his body temperature is normal, face match is successful and the password input is correct, can the door be opened. -
Page 31: Wiegand Settings
Temperature Measurement & Face Recognition Terminal User Manual Select the voice you want to replace and then click “browse” to select the desired audio file. After that, click “Upload” to upload the audio file. Rename the audio as needed. After your own voice prompt is uploaded, you can select it from the audio list and click “Listen” to listen to your voice prompt. -
Page 32: Questionnaire
Temperature Measurement & Face Recognition Terminal User Manual 3. Put the card on the card reader when you want to enter, and then your face image and ID number will be shown on the panel. 5.4 Questionnaire During the epidemic period, filling out a questionnaire before entering is necessary. If there is any unusual answer, alarms will be triggered. -
Page 33: Tampering Alarm Settings
Temperature Measurement & Face Recognition Terminal User Manual 1. Check “Enable”. Then a questionnaire will be displayed on the screen of the panel (or tablet) when scanning a face. 2. Set the alarm holding time and alarm linkage items. If there is any unusual answer, corresponding alarms will be triggered. - Page 34 Temperature Measurement & Face Recognition Terminal User Manual Enable “Tampering Alarm” and then set the alarm holding time and alarm trigger options. The setup steps of the alarm trigger options are the same as temperature measurement settings. Please refer to temperature measurement settings chapter for details.
-
Page 35: Other Configurations
Temperature Measurement & Face Recognition Terminal User Manual Other Configurations In the Webcam client, choose “Config” to go to the configuration interface. Note: Wherever applicable, click the “Save” button to save the settings. 6.1 System Settings 6.1.1 Basic Information In the “Basic Information” interface, the system information of the device is listed. Some versions may support device ID and QR code. -
Page 36: Local Config
Temperature Measurement & Face Recognition Terminal User Manual Select the time zone and DST as required. Click the “Date and Time” tab to set the time mode. 6.1.3 Local Config Go to Config System Local Config to set up the storage path of captured pictures and recorded videos on the local PC. - Page 37 Temperature Measurement & Face Recognition Terminal User Manual SD Card Management Click the “Format” button to format the SD card. All data will be cleared by clicking this button. Click the “Eject” button to stop writing data to SD card. Then the SD card can be ejected safely.
- Page 38 Temperature Measurement & Face Recognition Terminal User Manual Weekly schedule Set the alarm time from Monday to Sunday for a single week. Each day is divided in one hour increments. Green means scheduled. Blank means unscheduled. “Add”: Add the schedule for a special day. Drag the mouse to set the time on the timeline. “Erase”: Delete the schedule.
-
Page 39: Image Configuration
Temperature Measurement & Face Recognition Terminal User Manual Set the format, resolution and quality of the image saved on the SD card and the snapshot interval and quantity and the timing snapshot here. Snapshot Quantity: The number you set here is the maximum quantity of snapshots. The actual quantity of snapshots may be less than this number. - Page 40 Temperature Measurement & Face Recognition Terminal User Manual Brightness: Set the brightness level of the camera’s image. Contrast: Set the color difference between the brightest and darkest parts. Hue: Set the total color degree of the image. Saturation: Set the degree of color purity. The purer the color, the brighter the image is. Sharpness: Set the resolution level of the image plane and the sharpness level of the image edge.
-
Page 41: Video / Audio Configuration
Temperature Measurement & Face Recognition Terminal User Manual can be adjusted. Gain Mode: Choose “Auto” or “Manual”. If “Auto” is selected, the gain value will be automatically adjusted according to the actual situation. If “Manual” is selected, the gain value shall be set manually. -
Page 42: Osd Configuration
Temperature Measurement & Face Recognition Terminal User Manual Click the “Audio” tab to go to the interface as shown below. Three video streams can be adjustable. Resolution: The size of image. Frame rate: The higher the frame rate, the video is smoother. Bitrate type: CBR and VBR are optional. -
Page 43: White Light Control
Temperature Measurement & Face Recognition Terminal User Manual Set time stamp, device name, OSD content and picture overlap here. After enabling the corresponding display and entering the content, drag them to change their position. Then click the “Save” button to save the settings. Picture Overlap Settings: Check “OSD Content1”, choose “Picture Overlay”... -
Page 44: Face Exposure
Temperature Measurement & Face Recognition Terminal User Manual 6.2.5 Face Exposure To enable and set face exposure, please go to Config Image Face Exposure interface. When the brightness of the captured face is not enough, it can be enabled. 6.3 Alarm Configuration 6.3.1 Exception Detection This function can detect changes in the surveillance environment affected by the external factors. -
Page 45: Sd Card Full
Temperature Measurement & Face Recognition Terminal User Manual The sensitivity value of Video Color Cast Detection: The higher the value is, the more sensitive the system responds to the obscuring of the image. 4. Set alarm trigger options. Alarm out: If selected, this would trigger an external relay output that is connected to the camera on detecting the video exception. -
Page 46: Ip Address Conflict
Temperature Measurement & Face Recognition Terminal User Manual 2. Click “Enable” and set the alarm holding time. 3. Set alarm trigger options. Trigger alarm out, Email and FTP. The setup steps are the same as temperature measurement settings. Please refer to temperature measurement settings chapter for details. -
Page 47: Alarm In
Temperature Measurement & Face Recognition Terminal User Manual 2. Click “Enable” and set the alarm holding time. 3. Trigger alarm out. When the camera is disconnected, the system will trigger the alarm out. 6.3.6 Alarm In To set sensor alarm (alarm in): Go to Config Alarm Alarm In interface as shown below. -
Page 48: Alarm Out
Temperature Measurement & Face Recognition Terminal User Manual schedule recording setup. (See Schedule Recording). Click “Apply settings to” to quickly apply the settings to the other alarm input. 6.3.7 Alarm Out Go to Config Alarm Alarm Out. Alarm Out ID: Select the alarm out ID. Alarm Out Mode: Alarm linkage, manual operation and timing are optional. -
Page 49: Network Configuration
Temperature Measurement & Face Recognition Terminal User Manual 6.4 Network Configuration 6.4.1 TCP/IP Go to Config Network TCP/IP interface as shown below. There are two ways for network connection. Use IP address (take IPv4 for example)-There are two options for IP setup: obtain an IP address automatically by DHCP and use the following IP address. -
Page 50: Port
Temperature Measurement & Face Recognition Terminal User Manual notified, the IP change notification function can be used. Click “IP Change Notification Config” to go to the interface as shown below. Trigger Email: when the IP address of the device is changed, the new IP address will be sent to the email address that has been set up. -
Page 51: Ddns
Temperature Measurement & Face Recognition Terminal User Manual 1. Check “Enable”. 2. Check the IP address and port of the transfer media server in the Paramont CMS AI TSS. Then enable the auto report in the Paramont CMS AI TSS when adding a new device. Next, enter the remaining information of the device in the Paramont CMS AI TSS. -
Page 52: Rtsp
Temperature Measurement & Face Recognition Terminal User Manual Create domain name. After the domain name is successfully applied for, the domain name will be listed as below. 3. Enter the username, password, domain you apply for in the DDNS configuration interface. 4. -
Page 53: Upnp
Temperature Measurement & Face Recognition Terminal User Manual Select “Enable” to enable the RTSP function. Port: Access port of the streaming media. The default number is 554. RTSP Address: The RTSP address (unicast) format that can be used to play the stream in a media player. -
Page 54: Email
Temperature Measurement & Face Recognition Terminal User Manual Go to Config Network UPnP. Enable UPNP and then enter UPnP name. 6.4.7 Email If you need to trigger Email when an alarm happens or IP address is changed, please set the Email here first. -
Page 55: Ftp
Temperature Measurement & Face Recognition Terminal User Manual sent. When different alarms are triggered at the same time, multiple emails will be sent separately. Click the “Test” button to test the connection of the account. Recipient Address: receiver’s e-mail address. 6.4.8 FTP After an FTP server is set up, captured pictures from events will be uploaded to the FTP server. - Page 56 Temperature Measurement & Face Recognition Terminal User Manual A. Use a private certificate There is a certificate installed by default as shown above. Enable this function and save it. Then the camera can be accessed by entering https://IP: https port via the web browser (eg. https://192.168.226.201:443).
-
Page 57: P2P (Optional)
Temperature Measurement & Face Recognition Terminal User Manual How to attach the private key to the certificate? Please open the certificate and the private key files with the editor (like Notepad++) and then copy the private key to the certificate. C. - Page 58 Temperature Measurement & Face Recognition Terminal User Manual Add user: 1. Click the “Add” button to pop up the following textbox. 2. Enter user name in “User Name” textbox. 3. Enter the password in the “Password” and “Confirm Password” textbox. It is recommended to set a high level password that shall be composed of numbers, special characters, upper or lower case letters for your account security.
-
Page 59: Online User
Temperature Measurement & Face Recognition Terminal User Manual 3. Enter the old password of the user in the “Old Password” text box. 4. Enter the new password in the “New password” and “Confirm Password” text box. 5. Enter computer’s MAC address as necessary. 6. -
Page 60: Security Management
Temperature Measurement & Face Recognition Terminal User Manual The setup steps are as follows: Check the “Enable address filtering” check box. Select “Block/Allow the following address”, IPv4/IPv6/MAC and then enter IP address or MAC address in the address box and click the “Add” button. 6.5.4 Security Management Go to Config Security Security Management as shown below. -
Page 61: Reboot
Temperature Measurement & Face Recognition Terminal User Manual Import & Export Settings Configuration settings of the camera can be exported form a camera into another camera. 1. Click “Browse” to select the save path for import or export information on the PC. 2. -
Page 62: Operation Log
Temperature Measurement & Face Recognition Terminal User Manual 1. Click the “Browse” button to select the save path of the upgrade file 2. Click the “Upgrade” button to start upgrading the firmware. 3. The device will restart automatically Caution! Do not close the browser or disconnect the camera from the network during the upgrade. -
Page 63: Image Search
Temperature Measurement & Face Recognition Terminal User Manual 7.1 Image Search Click Search to go to the interface as shown below. Images that are saved on the SD card can be found here. Local Image Search Choose “Picture”—“Local”. Set time: Select date and choose the start and end time. Click to search the images. - Page 64 Temperature Measurement & Face Recognition Terminal User Manual SD Card Image Search Choose “Picture”—“SD Card”. Set time: Select date and choose the start and end time. Choose the alarm events at the bottom of the interface. Click to search the images. Double click a file name in the list to view the captured photos.
-
Page 65: Video Search
Temperature Measurement & Face Recognition Terminal User Manual 7.2 Video Search 7.2.1 Local Video Search Click Search to go to the interface as shown below. Videos were recorded locally to the PC can be played in this interface. Choose “Record”—“Local”. Set search time: Select the date and choose the start and end time. -
Page 66: Sd Card Video Search
Temperature Measurement & Face Recognition Terminal User Manual Icon Description Icon Description Play button. After pausing the video, click this button to Pause button continue playing. Stop button Speed down Speed up Watermark display Enable / disable audio; drag the slider to adjust the volume after enabling audio. - Page 67 Temperature Measurement & Face Recognition Terminal User Manual The time table can be shown in 24H/12H/2H/1H format by clicking the corresponding buttons. Video clip and downloading Search the video files according to the above mentioned steps. Select the start time by clicking on the time table. Click to set the start time and then this button turns blue ( Select the end time by clicking on the time table.
-
Page 68: Face Match Result Search
Temperature Measurement & Face Recognition Terminal User Manual Face Match Result Search Click “Data Record” tab to go to the face recognition result search interface. Set the start time and end time and click “Search” to view the face recognition result. The capture face pictures, the body temperature and the snapshot time will be shown. -
Page 69: Appendix
Temperature Measurement & Face Recognition Terminal User Manual The captured image can be selected to export or not in this interface. Click “Export” to export the Excel file about the face match result. A photo of each recognized face is marked with a colored bar. The red color of the bar means no comparison result. - Page 70 Temperature Measurement & Face Recognition Terminal User Manual A. IE browser may be set up to block ActiveX. Follow the steps below. ① Open IE browser and then click Tools-----Internet Options. ② Select Security------Custom Level…. ③ Enable all the options under “ActiveX controls and plug-ins”. ④...
-
Page 71: Appendix 2Specifications
Temperature Measurement & Face Recognition Terminal User Manual Appendix 2Specifications Mode PAR-P2TEMPTABLET Performance Embedded Linux Storage 8Gb DDR3 +16GB EMMC Screen Display Screen 8inch LCD touch screen; resolution: 1280x800; contrast: 500:1 Brightness 500 lux Control Interface Temperature Measurement Temperature 89.6~109.4F... - Page 72 Temperature Measurement & Face Recognition Terminal User Manual ≤ 0.5 s per person Recognition Duration Face Capacity 20,000 Recognition Accuracy 99.7% Supplementary Light Fill-in Light Soft white light, IR light White Light Distance 3-9 Feet Smart Linkage Screen Wakeup Light Adjustment Snapshot Audio Two-way Talk...
