INSTRUCTIONS FOR USE AND INSTALLATION OF MODEL SP-527
HOW TO USE THE IRON
1. HANG BOTTLE 1 METER ABOVE PRESSING SURFACE.
(SEE BOTTLE HANGING INSTRUCTION.)
2. CONNECT THE BLACK HOSE END TO THE IRON, AND
CLEAR HOSE END TO THE BOTTLE.
3. EMPTY DEMINERALIZER PACKAGE INTO THE BOTTLE
AND FILL IT WITH TAP WATER ONLY. (IF YOU WANT TO,
USE THE DEMINERALIZER AS AN OPTION.)
4. TIE THE ELECTRICAL CORD AND HOSE TOGETHER.
5. PLUG THE IRON CORD INTO A GROUNDED
ELECTRICAL OUTLET.
6. SET THE TEMPERATURE DIAL ON NO. 4 AND LET THE
IRON HEAT UP FOR TEN MINUTES.
7. OPEN THE BOTTLE VALVE AND ALLOW THE HOSE TO
FILL WITH WATER BY PRESSING THE STEAM SWITCH.
THE IRON IS NOW READY FOR USE.
8. WHEN NOT PRESSING, PLACE THE IRON ON THE
SUPPLIED IRON REST.
9. ALWAYS UNPLUG THE IRON WHEN UNATTENDED OR
NOT IN USE.
DO NOT STAND IRON ON ITS BACK.
IMPORTANT NOTICE
ABOUT DEMINERALIZER:
• THE DEMINERALIZER EXTENDS THE LIFE OF THE
IRON & PREVENTS CALCIUM BUILD-UP.
• WHEN THE DEMINERALIZER CHANGES FROM BLUE
TO BROWN, REPLACE IT BY ORDERING A NEW
PACKAGE FROM YOUR DISTRIBUTOR.

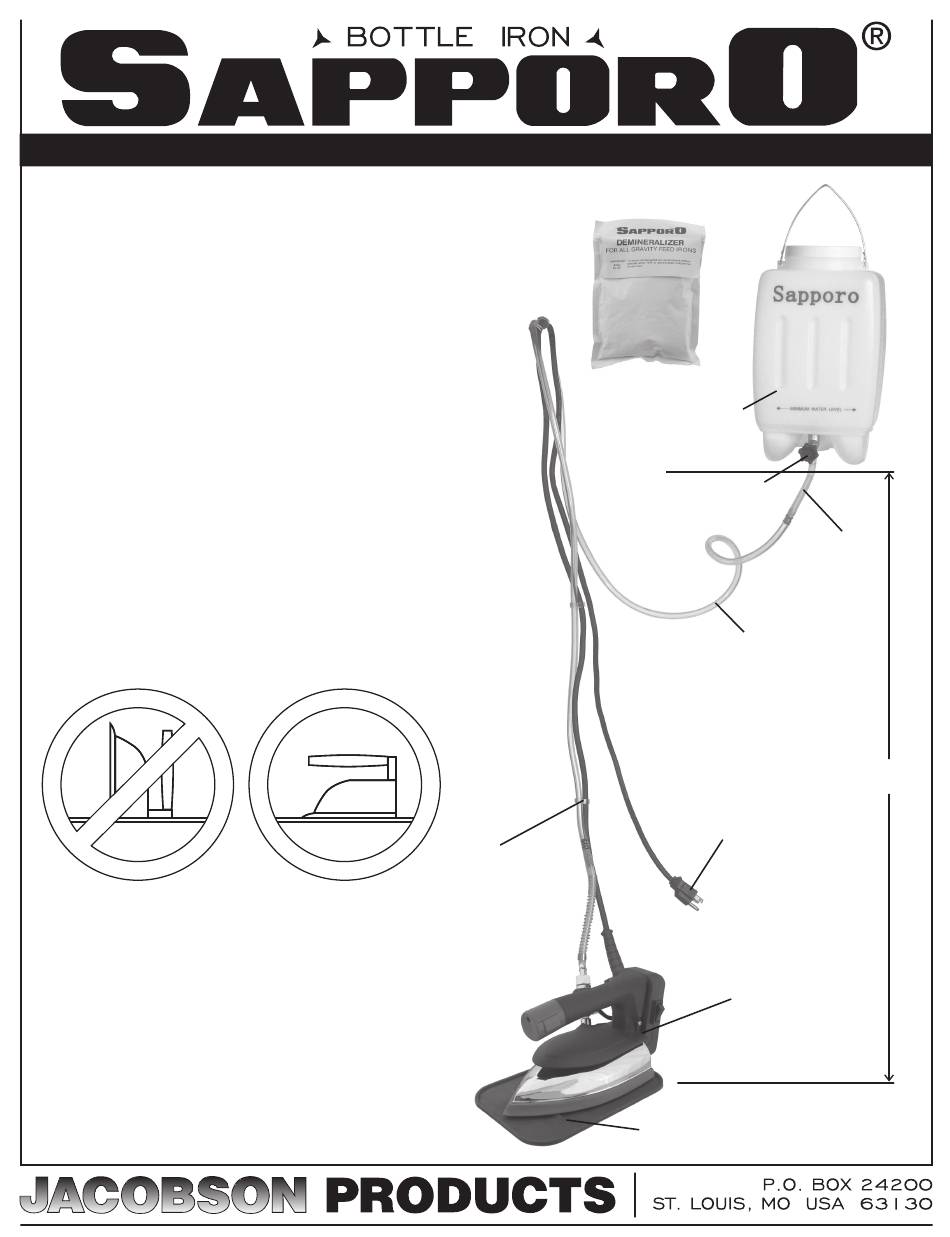

DEMINERALIZER
(AVAILABLE AS AN OPTION)
TIE CORD AND
HOSE TOGETHER
WATER BOTTLE
BOTTLE VALVE
CLOSE TO FILL
OPEN TO USE
SILICONE HOSE
GROUNDED TYPE
ELECTRIC PLUG
THERMOSTAT
SET AT NO. 4
IRON REST
FILTER
1 METER
Advertisement
Table of Contents
Related Manuals for Sapporo SP-527
Summary of Contents for Sapporo SP-527
- Page 1 INSTRUCTIONS FOR USE AND INSTALLATION OF MODEL SP-527 DEMINERALIZER HOW TO USE THE IRON (AVAILABLE AS AN OPTION) 1. HANG BOTTLE 1 METER ABOVE PRESSING SURFACE. (SEE BOTTLE HANGING INSTRUCTION.) 2. CONNECT THE BLACK HOSE END TO THE IRON, AND CLEAR HOSE END TO THE BOTTLE. 3. EMPTY DEMINERALIZER PACKAGE INTO THE BOTTLE AND FILL IT WITH TAP WATER ONLY. (IF YOU WANT TO, USE THE DEMINERALIZER AS AN OPTION.) 4. TIE THE ELECTRICAL CORD AND HOSE TOGETHER. 5. PLUG THE IRON CORD INTO A GROUNDED WATER BOTTLE ELECTRICAL OUTLET. 6. SET THE TEMPERATURE DIAL ON NO. 4 AND LET THE IRON HEAT UP FOR TEN MINUTES. BOTTLE VALVE 7. OPEN THE BOTTLE VALVE AND ALLOW THE HOSE TO...
- Page 2 PARTS LIST FOR MODEL SP-527 4400 3300 5500 8800 6600 9900 11110 10100 104065 Sapporo No. Name Style No. Solenoid Valve Assembly 3300 SRP387 4400 Steam Switch Assembly SRP388 Handle Assembly 5500 SRP389 6600 Main Switch Assembly Complete SRP390 110303-B Thermal Fuse Only 104065 SRP218 7700 Power Cord Assembly SRP391 Thermostat Assembly 8800...
- Page 3 PRESSING WITH SAPPORO IRON NOW THAT YOUR IRON IS PROPERLY SET-UP, PLEASE READ THE FOLLOWING TIPS FOR PRESSING WITH PROFESSIONAL RESULTS: • INITIALLY, TO ALLOW WATER TO ENTER INTO THE HOSE AND IRON, PRESS THE STEAM SWITCH. THIS MAY TAKE A FEW SECONDS, THEN YOU WILL SEE STEAM. • BEGIN TO PRESS. • FOR BEST RESULTS, IT IS ONLY NECESSARY TO PRESS THE STEAM SWITCH FOR A FEW SECONDS AT A TIME. IT IS NOT NECESSARY TO ACTIVATE THE STEAM SWITCH CONTINUOUSLY. • THERE ARE SEVERAL SETTINGS ON YOUR TEMPERATURE DIAL. RECOMMENDED TEMPERATURE SETTINGS ARE AS FOLLOWS: # 1, 2 – PREHEAT # 3 – SILK AND DELICATE FABRICS (LOW TEMPERATURE) # 4 – COTTON AND WOOL (MEDIUM TEMPERATURE) # 5 – LINEN (HIGH TEMPERATURE) • A TEFLON SHOE IS RECOMMENDED AND IS AVAILABLE FROM YOUR DISTRIBUTOR TO PREVENT GARMENT SHINE AND STARCH BUILD-UP. • WHEN UNATTENDED OR NOT IN USE, ALWAYS TURN OFF AND UNPLUG YOUR IRON. TROUBLE SHOOTING GUIDE PROBLEM PROBABLE CAUSE SUGGESTED REMEDY Iron does not heat. No power to iron. Check electric outlet Temperature dial is in “OFF” position. Set temperature dial to No. 3, 4 or 5.
- Page 4 CEILING HOOK INSTALLATION INSTRUCTIONS IMPORTANT : CAUTION – DO NOT SLIDE ELECTRICAL WIRE OR WATER HOSE OVER HOOK. SLIDE CHAIN LINK ONLY OVER HOOK. CAUTION – INJURY TO PERSONS OR DAMAGE TO THE CEILING MAY RESULT IF THE BOTTLE OR MOUNTING HARDWARE IS PULLED FROM THE CEILING. TO AVOID SUCH INJURY, MOUNT ONLY TO CEILING MEMBERS THAT ARE STRUCTURALLY SOUND. → FOR HOLLOW CEILINGS: 1. DRILL 5/8” DIAMETER HOLE IN THE CEILING AT DESIRED HOOK LOCATION. CEILING 2. ASSEMBLE TOGGLE BOLT BY SCREWING BOLT (A) INTO TOGGLE (B). 3. INSERT FLAPS AND BOLT ASSEMBLY (A/B) HINGE UP INTO CEILING HOLE WITH THE BOLT (A) PROTRUDING THROUGH CEILING. LOCK ASSEMBLY BY TURNING HOOK (C) CLOCKWISE UNTIL FIRMLY SEATED. FOR WOOD BEAM CEILINGS SCREW HOOK CLOCKWISE INTO CEILING UNTIL FIRMLY SEATED. FOR EITHER METHOD HANG THE BOTTLE ASSEMBLY BY A CHAIN FROM THE HOOK SO THAT THE BOTTOM OF THE BOTTLE IS 1 METER (1 YARD- STICK) FROM THE WATER INLET ON THE IRON.
