Disassembly of diffuser
TPS..-F31/32 / FV31/32
© Copyright 2016 ABB. All rights reserved.
Disassembly and assembly
Disassembling and assembling
turbocharger

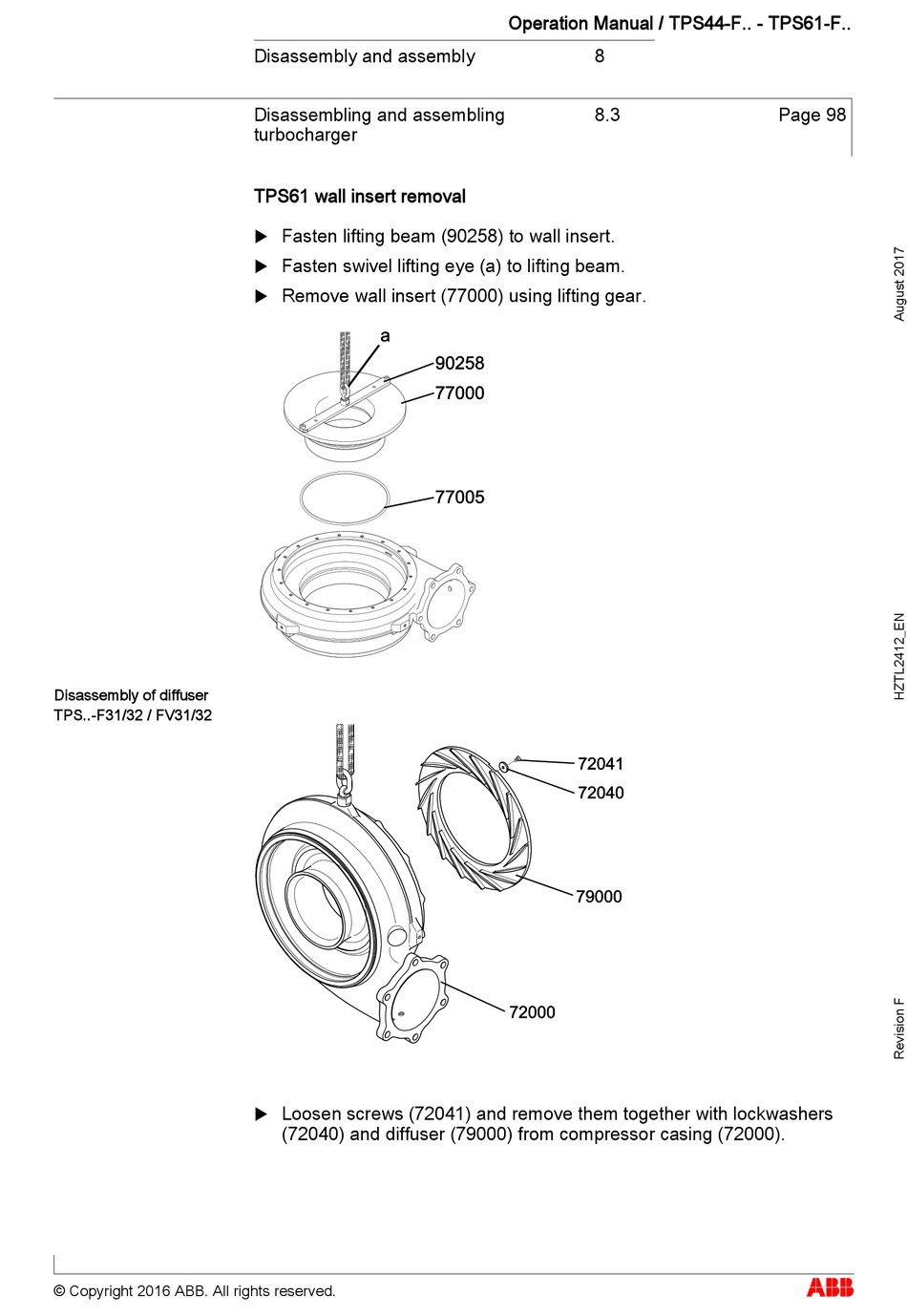

TPS61 wall insert removal
Fasten lifting beam (90258) to wall insert.
τ
Fasten swivel lifting eye (a) to lifting beam.
τ
Remove wall insert (77000) using lifting gear.
τ
Loosen screws (72041) and remove them together with lockwashers
τ
(72040) and diffuser (79000) from compressor casing (72000).
Operation Manual / TPS44-F.. - TPS61-F..
8
8.3
Page 98
