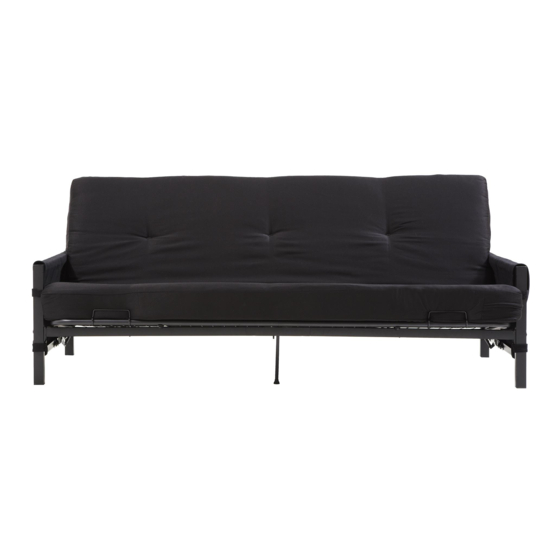

Metal and Storage Arm Futon Frame
Thank you for purchasing from DHP!
DO NOT RETURN TO THE STORE !
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Visit www.dhpfurniture.com/eng/support-home
or call Toll-Free 1-800-267-1739
Date of Purchase
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
FF2116059
Fairview
Lot Number
B34FF211605900 - 10125-M
Black
1
Advertisement
Table of Contents
Related Manuals for DHP Mainstays Fairview FF2116059
Summary of Contents for DHP Mainstays Fairview FF2116059
- Page 1 Metal and Storage Arm Futon Frame Black Weight Limit: 600 Lb / 272 Kg Thank you for purchasing from DHP! DO NOT RETURN TO THE STORE ! If parts are missing or damaged, we will gladly ship your replacement parts free of charge.
-
Page 2: Warranty Information
Warranty Information Read Before Beginning Assembly DHP warrants this product to be free from defects in material and workmanship and Call our toll free number if you need assistance. agrees to remedy any such defect. This warranty covers one year from the date of Work in a spacious area and near where the unit will be used, preferably on a original purchase. - Page 3 B34FF211605900...
- Page 4 Parts Replacement Parts, Visit www.dhpfurniture.com/eng/support-home All in 1 big box! There are inner box(es) that include components required to complete this assembly. Armrest Pockets 2 Stretcher Stretcher Connector Before you throw the package, please use the Armrest Pockets 1 T617630 T617610 T613040 T612320...
-
Page 5: Hardware Pack
Hardware Pack Hardware Pack #: TFF2116059-00 1/4" X 18 1/4" X 3/4" 1/4" X 1 1/16" 1/4" X 1 5/16" X 14 5/16" X 2 1/16" 5/16" #8 X 9/16" X 20 Hardware Note: Please do not completely tighten all the hardware, until the entire assembly is complete, unless 3/16"... - Page 6 Step 1 Attach (L) to (A) with BOLTS 3 and NUTS Attach (R) to (A) with BOLTS 3 and NUTS B34FF211605900...
- Page 7 Step 2 Insert (H) X 2 to (G) x 4 with SCREW 7 . B34FF211605900...
- Page 8 Step 3 Attach (D) X 2 to (H) X 2 with BOLT 4 . B34FF211605900...
- Page 9 Step 4 4.1 Attach sub-assembly (G/H) x 2 from STEP 3 to (A) with BOLTS 1 and NUTS 6. 4.2 Attach 8 to (G&H) in the locations shown. B34FF211605900...
- Page 10 Step 5 For Both SEAT FRAME and BACK FRAME Join panels (O) X 2 and (P) X 2 by inserting (E) X 2 between both panels and securing with SCREWS 7 as illustrated. Make sure that the wire mesh of both MESH PANELS is on the same side.
-
Page 11: Seat Frame
Step 6 For SEAT FRAME Attach (Q) X 2 to (O & P) with BOLTS 2 and NUTS 5. SEAT FRAME B34FF211605900... -
Page 12: Back Frame
Step 7 For BACK FRAME Attach (Q) X 2 to (O & P) with JCN NUTS 12 and BOLTS 11. Attach (Q) X 2 to (O & P) with BOLTS 2 and NUTS 5. JCN NUT 12 and BOLT 11. BACK FRAME Regular BOLT 2 and NUT 5. - Page 13 Step 8 Attach the SEAT FRAME assembled from the step 6 and BACK FRAME assembled from step 7 to (L & R) using BOLTS 2 and NUTS 5 . Hand tighten all 4 bolts and nuts on (L & R) and then use the HARDWARE 9 and 10 to tighten securely.
- Page 14 Step 9 Lift the backrest until futon is in seat position and then a ttach (T) X 3 to (O & P) as illustrated. B34FF211605900...
- Page 15 Step 10 Attach (S) X 2 to (O & P) on the seat frame, with screws 7 as illustrated. B34FF211605900...
- Page 16 Step 11 Stick (B) & (C) to (A) X 2 via velcro as illustrated sequence. Pinching Hazard!!! Avoid finger being stuck when approaching to the Mechanism. B34FF211605900...
- Page 17 Step 12 To use your futon! B34FF211605900...
-
Page 18: Helpful Hints
Move your new furniture carefully, with two people lifting and carrying the unit to its new location. Your DHP furniture can be disassembled and reassembled to move. Some parts have been pre-assembled for this item. They are illustrated on this page and available for replacement. - Page 19 WARNINGS for Futon This product is intended for use only up to the maximum weight limit indicated. exceeding this maximum weight may result in product instablility, causing possible injury and damage to product. Your mattress has been compressed in an effort to help the environment by reducing packaging and minimizing waste! for optimal results, remove mattress from packaging and lay mattress flat for 24 hours.
