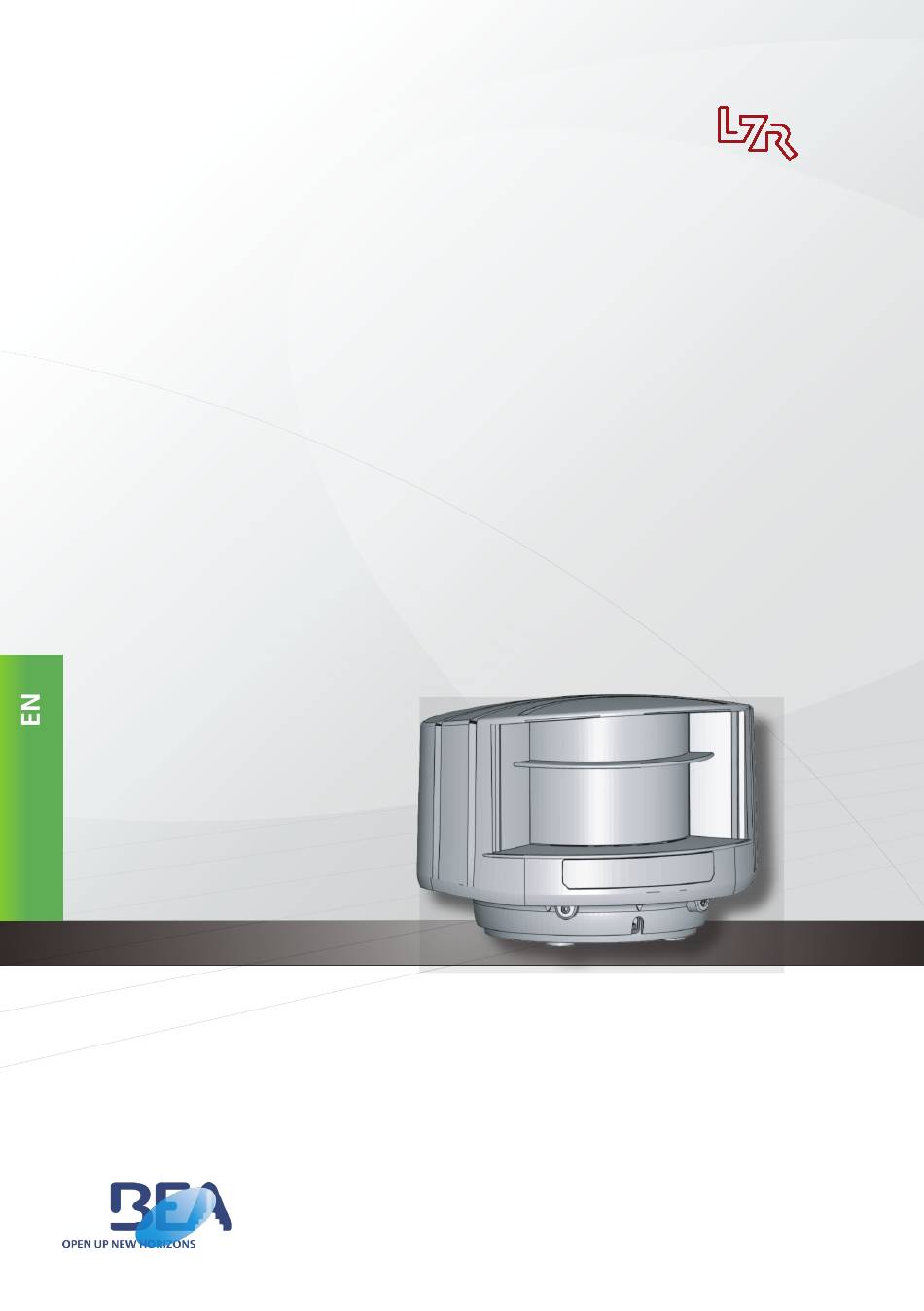

- Page 1 ® -T305/LZR-T305-P LASER SCANNERS FOR PLATFORM SCREEN DOORS detection range of 5.0 m x 5.0 m User’s Guide for product version 0600 and more...
-
Page 2: Installation And Maintenance
SAFETY The device contains IR and visible laser diodes. IR laser: wavelength 905nm; max. output pulse power 75W (Class 1 according to IEC 60825-1) Visible laser: wavelength 650nm; max. output CW power 3mW (Class 3R according to IEC 60825-1) The visible laser beams are inactive during normal functioning. The installer can activate the visible lasers if needed. - Page 3 DESCRIPTION laser sweep emission protection cover laser sweep reception visible laser beams (3) LED-signals (4) notches for tilt angle adjustment (2) screws for position lock (2) adjustable bracket connector cable conduits (4) LED-SIGNAL 1. Detection LED: relay 1 - optional field LED flashes quickly 2.
-
Page 4: How To Use The Remote Control
HOW TO USE THE REMOTE CONTROL 30 minutes after last use, the sensor locks the access to the remote control session. Cut and restore power supply. The remote control session is accessible again during 30 minutes. 30’ After unlocking, the red If the red LED flashes quickly after unlocking, you To end an adjustment session, LED flashes and the sensor... - Page 5 MOUNTING 10 cm 45° 45° Use the mounting template to Pass the cable +/- 10 cm though Position the bracket and fasten position the sensor correctly. The the cable opening. If drilling an the 4 screws firmly in order to avoid vibrations.
- Page 6 POSITIONING Unlock the sensor and activate the visible laser beams in order to position the curtains parallell to the door. The visible laser beams stay activated for 15 minutes or can be turned off by the same sequence. Adjust the lateral position Adjust the tilt angle of the Lock the position of the mounting detection field with the hex key.
- Page 7 SAFETY FIELD CONFIGURATION (RELAY 2) SAFETY FIELD TEACH-IN Launch a teach-in after changing the sensor position or when new objects are added to or changed in the detection zone. During teach-in, the detection field should be free of snow buildups, heavy rain, snowfall, fog or other moving objects.
- Page 8 OPTIONAL FIELD CONFIGURATION (RELAY 1) Make sure the white and yellow wires are connected to the corresponding outputs before configuring the optional field. FIELD DIMENSIONS Reduce the field dimensons if needed. WIDTH same as 0.5 m 5.0 m safety field HEIGHT no field 0.5 m...
- Page 9 IMMUNITY FILTER INCREASED IMMUMTY RELATIVE TO FIELD SIZE outdoor outdoor indoor outdoor outdoor outdoor outdoor indoor high high Choose between environment or object. UNCOVERED ZONE Increase in case of snow, dead leaves, etc. MIN. OBJECT SIZE (approximate values) OUTPUT ACTIVATION DELAY (approximate values) The relays are triggered when the detection duration ≥...
-
Page 10: Troubleshooting
TROUBLESHOOTING There is no power. No blue LED Check cable and conneicton. The polarity of the power Check the polarity of the power supply. supply is inverted. All LEDs have been de- Activate the LEDs by remote control. activated by remote control. Only the blue LED The test input is not Check wiring. -
Page 11: Technical Specifications
TECHNICAL SPECIFICATIONS Technology: laser scanner, time-of-flight measurement Detection mode: motion and presence (EN 12453 Typ. E) Max. detection range: 5.0 m x 5.0 m Uncovered zone: 5 - 25 cm (adjustable) Remission factor: > 2 % Angular resolution: 0,3516 ° 2,1 cm @ 3 m ;... - Page 12 BEA Electronics Asia Co.,LTD,| 4th-5th Floor,M8 Building,No.1Jiuxianqiao East Road,Chaoyang District,BEIJING[CHINA] T +86 10 57761630 | F +86 10 62628775 | info@beachina.cn | www.bea-asiapacific.com BEA hereby declares that the LZR -T305/LZR-T305-P is in conformity with the basic requirements and the other relevant provisions ®...
