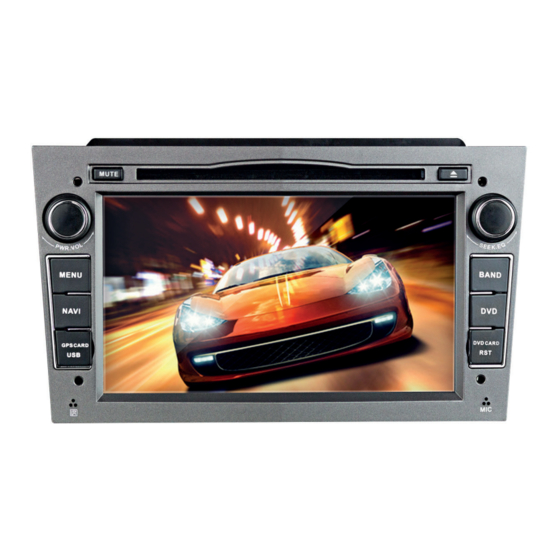

CAR NAVIGATION SYSTEM
Thank you for purchasing one of our XOMAX products!
We appreciate your confidence. Enjoy your brand new multimedia unit!
i
Please read the following manual carefully before you install and use the
unit. Please save this manual in case you will need to clarify further possible
questions regarding installation and usage of our product.
We recommend you to let the technician install the unit in your vehicle.
You can find the detailed manual for your XOMAX product on our homepage:
www.xomax.de/download
XOMAX
Installation manual
XM-01L
1
EN
N
E
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Xomax XM-01L
Summary of Contents for Xomax XM-01L
- Page 1 Please save this manual in case you will need to clarify further possible questions regarding installation and usage of our product. We recommend you to let the technician install the unit in your vehicle. You can find the detailed manual for your XOMAX product on our homepage: www.xomax.de/download...
-
Page 2: Table Of Contents
Usage of the touchscreen ....4 Moisture ........4 The risk of injuries ......4 Handling the CDs and DVDs ..... 4 Installation Connection schedule – Quadlock XM-01L plug pin assignment Quadlock-socket pin assign- ment Connection schedule – Cinch multicore Common solutions... -
Page 3: Safety Instructions And Precautions
Topic: Safety instructions and precautions Due to flawed warranty seal the Safety instructions and warranty becomes invalid. precautions Power supply Handling by stop only Use the unit connected only to 12 Volt To avoid any accidents please don't on-board power supply. The minus (-) handle the unit while you driving. -
Page 4: Cleaning Of The Unit
Topic: Safety instructions and precautions Cleaning of the unit Please keep the unit clean and remove the dust from it regularly. Please use for that a soft and dry cleaning rag. Major soilings can be removed carefully Handling the CDs and DVDs with the wet cleaning rag. -
Page 5: Installation
Topic: Installation with the ground (GND) (negative). Installation » Please tag the polarity of the avai- lable speakers before you disconnect the vehicle battery. We recommend you to let a professional technician install the » A proper grounding of the unit's unit in your vehicle. - Page 6 Topic: Installation » The speakers should feature the impedance of 4-8 Ohm and a sufficient wattage. » Please ensure that the speakers you are connecting with the unit are intact. Damaged speakers can impair the unit. » To avoid a short circuit please isolate all cable junctions and endings of the unused cables with the electrical tape.
-
Page 7: Connection Schedule
Topic: Connection schedule – Quadlock Connection schedule – Quadlock... - Page 8 Topic: XM-01L plug pin assignment XM-01L plug pin assignment The pin assignment is depicted from the customer‘s perspective: C10 C11 C12 C13 C14 C15 C16 G11 G12 G13 G14 G15 G16 G17 G18 G19 G20 CAN-Bus plug (white) Plug towards car radio (black)
- Page 9 Topic: Quadlock-socket pin assignment Quadlock-socket pin assignment Socket B (loud speakers) Socket A (power supply) On the A side you can nd the port for On the B side you can nd the speakers power supply. terminals. QB1 - (-) rear right (violet/black) QA1 - spare QB2 - (+) rear right (violet) QA2 - Can High (gray/black)
- Page 10 Topic: Connection schedule – Cinch multicore Connection schedule – Cinch multicore...
- Page 11 Topic: Common solutions Common solutions The following advices are generally valid and refer to diverse car radios models with the similar characteristics. Please note that some articles may refer not to your model exactly and contain the describtion of features and functions that your model does not support.
- Page 12 Topic: Common solutions Poor radio reception: For problem-solving regarding the radio reception it The radio tuner finds no is important to know the type of the antenna of your broadcaster or the recep- vehicle. tion is poor. Here are the possible solutions for each type of the antenna: Type 1 –...
-
Page 13: Regulation
EU-Declaration of Conformity municipal administration. Hereby STEL Multimedia GmbH declares that the radio equipment "XM-01L" is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.xomax.de/eudoc/... - Page 14 Topic: Specification Plug type ........miniUSB Specification File System ......FAT32 or exFAT Common data USB port (back) Operating voltage ......12V DC Version compatibility ....2.0 Full Speed Backlight color ......... orange Max. supported volume ..... 128 GB Instalation size ........2-DIN Plug type ......
