AVI AVIMX402 User Manual

材质: 80克书写纸+双面单黑+打印8页
红色线框不需要印刷
www.avishop.com
Tel: 832-831-6180
Support: customerservice@avishop.com

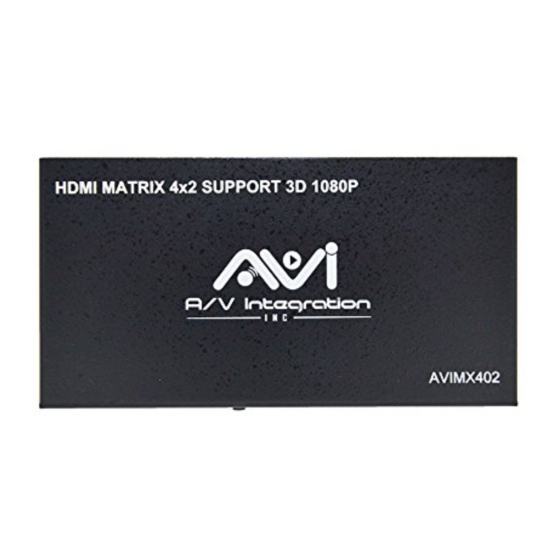

HDMI MATRIX 4x2 SUPPORT 3D 1080P
Model: AVIMX402
TABLE OF CONTENTS
Specifications
Package Contents
Panel Descriptions
Connecting and Operating
Maintenance
Product Service
Warranty
SPECIFICATIONS
Operating Temperature Range -5 to +35℃(+23 to +95℉)
Operating Humidity Range 5 to 90%RH (No Condensation)
Input Video Signal 0.5-1.0 Volts P-P
Input DDC Signal 5 volts p-p(TTL)
Data transfer speed rate 6.75Gbps(Maximum)
DTV/HDTV:
Video Format Supported 480i/576i/480P/576P/720P/1080i/1080P
3D video support
V d i e o O u p t t u H D
Support Video Color Format xv-YCC/deep color 36bit
Support Audio Format DTS-HD/true-HD/LPCM7.1/AC3/DTS/DSD
Transmission Distance 15m(Maximum)over standard HDMI cable/26AWG
Power consumption 5watts(Maximum)
Dimension (L×W×H) 115x60x32mm
N t e W e g i t h 2 4 5
Note: Specifications are subject to change without notice. Mass and
dimensions are approximate.
PACKING CONTENTS
1) Main Unit. 4x2 HDMI Matrix
2) 5VDC 2A Power Supply.
3) Operating Instructions
4) Remote Controller
最后成品尺寸: 105*145MM
1
M I
g
3
4x2 HDMI Matrix, Support 3D
Operating Instructions
Dear Customer
Thank you for purchasing this product. For optimum performance and safety,
please read these instructions carefully before connecting, operating or adjusting
this product. Please keep this manual for future reference.
FEATURES
4 HDMI inputs, 2 HDMI standard outputs.

High Definition Audio support: Dolby TrueHD, and DTS-HD Master Audio.

The 2 HDMI output ports can be from the same or different sources.

Manual or remote select source input signal to different sink.

Auto Signal Enhancement feature can improve signal quality after long

distance transmission.
With remote controller.

High-definition Resolutions support: HDTV-up to 1080p.

Support 3D.

Supports 30/36bit deep color display

NOTICE
Our company reserves the right to make changes in the hardware, packaging
and any accompanying documentation without prior written notice.
2
PANEL DESCRIPTIONS
Front Panel
1) IR Receiver
2) Output B Select Button: Press the "Switch B" button to switch signal source
from input 1 to 4.
3) Output A Select Button: Press the "Switch A" button to switch signal source from
input 1 to 4
4) Indicator of HDMI output B:A red LED light will illuminate when output B works.
5) Indicator of HDMI output A:A blue LED light will illuminate when output A works.
Left Panel Rear panel
6) Indicator of OutputB's Input source: The corresponding red LED light will
illuminate according to which input you connect.
7) Indicator of OutputA's input source: The corresponding blue LED light will
illuminate according to which input you connect.
8) Output A port
9) Power input
10) Input ports
11) Output B port
4
Remote
Right Panel
