Bar Code Scanner (USB)
Installation Instructions
Follow these instructions to connect and program any of these USB bar code scanners:
JADAK flexpoint HS-1M on the Edge
•
Symbol LS2208 on the NanoMaxx, M-Turbo®, or S Series
•
When connected, the bar code scanner is listed on the system's USB Devices setup page.
Bar Code Scanner User Guide
See
Jadak bar code scanner
To connect and program the Jadak bar code scanner
1 Attach the scanner cord to the bar code scanner and to a USB port on the ultrasound system.
JADAK flexpoint HS-1
See
For location of USB ports, see the ultrasound system user guide.
2 Turn on the ultrasound system.

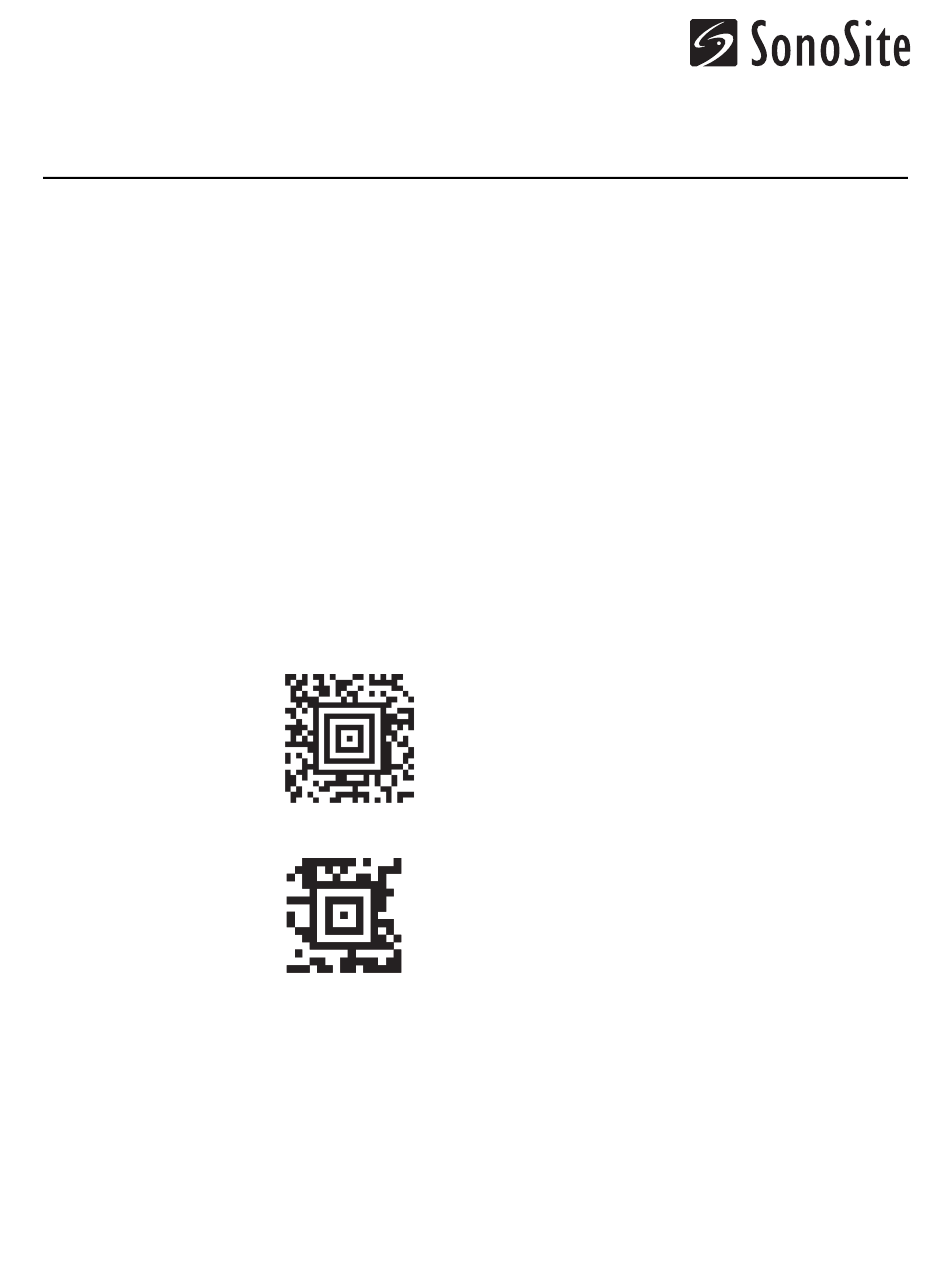

3 Scan the following two bar codes in the order listed:
USB Kybrd
STX Prefix
ETX Suffix
DOS CTRL
ASCII MODE
Symbol bar code scanner
To connect and program the Symbol bar code scanner
1 Attach the scanner cord to the bar code scanner and to a USB port on the ultrasound system.
See
Symbol LS2208 Quick Start Guide
For location of USB ports, see the ultrasound system user guide.
2 Turn on the ultrasound system.
™
or NanoMaxx® ultrasound system
from SonoSite for information on safety and cleaning.
M
Quick Start Guide
included with the bar code scanner.
included with the bar code scanner.
™
ultrasound system
Advertisement
Table of Contents
Summary of Contents for SonoSite JADAK flexpoint HS-1M
- Page 1 When connected, the bar code scanner is listed on the system’s USB Devices setup page. Bar Code Scanner User Guide from SonoSite for information on safety and cleaning. Jadak bar code scanner To connect and program the Jadak bar code scanner 1 Attach the scanner cord to the bar code scanner and to a USB port on the ultrasound system.
- Page 2 3 Scan the following 9 bar codes in the order listed: For instructions to scan, see Symbol LS2208 Quick Start Guide Note: If you have trouble scanning a bar code, try holding the scanner farther away from the bar code or at a different angle.
- Page 3 4 Scan additional programming bar codes as desired. Symbol LS2208 Quick You can program the scanner with various user preferences, such as beeper volume. Refer to Start Guide Symbol LS 2208 Product Reference Guide or, for more comprehensive information, to , included with the scanner and available on the Motorola Web site at www.symbol.com/manuals.
- Page 4 Edge, M-Turbo, NanoMaxx, S Series, SonoSite, are registered (in some jurisdictions) and unregistered trademarks owned by SonoSite, Inc. Non-SonoSite product names may be trademarks or registered trademarks of their respective owners. SonoSite, Inc. SonoSite Ltd 04/2012 Copyright 2012 by 21919 30th Drive SE...
