INSTRUCTION
SL-003
IONIZING AIR BLOWER
DR.SCHNEIDER PC
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SL-003 and is the answer not in the manual?

Questions and answers

Related Manuals for DR.SCHNEIDER PC SL-003

Summary of Contents for DR.SCHNEIDER PC SL-003

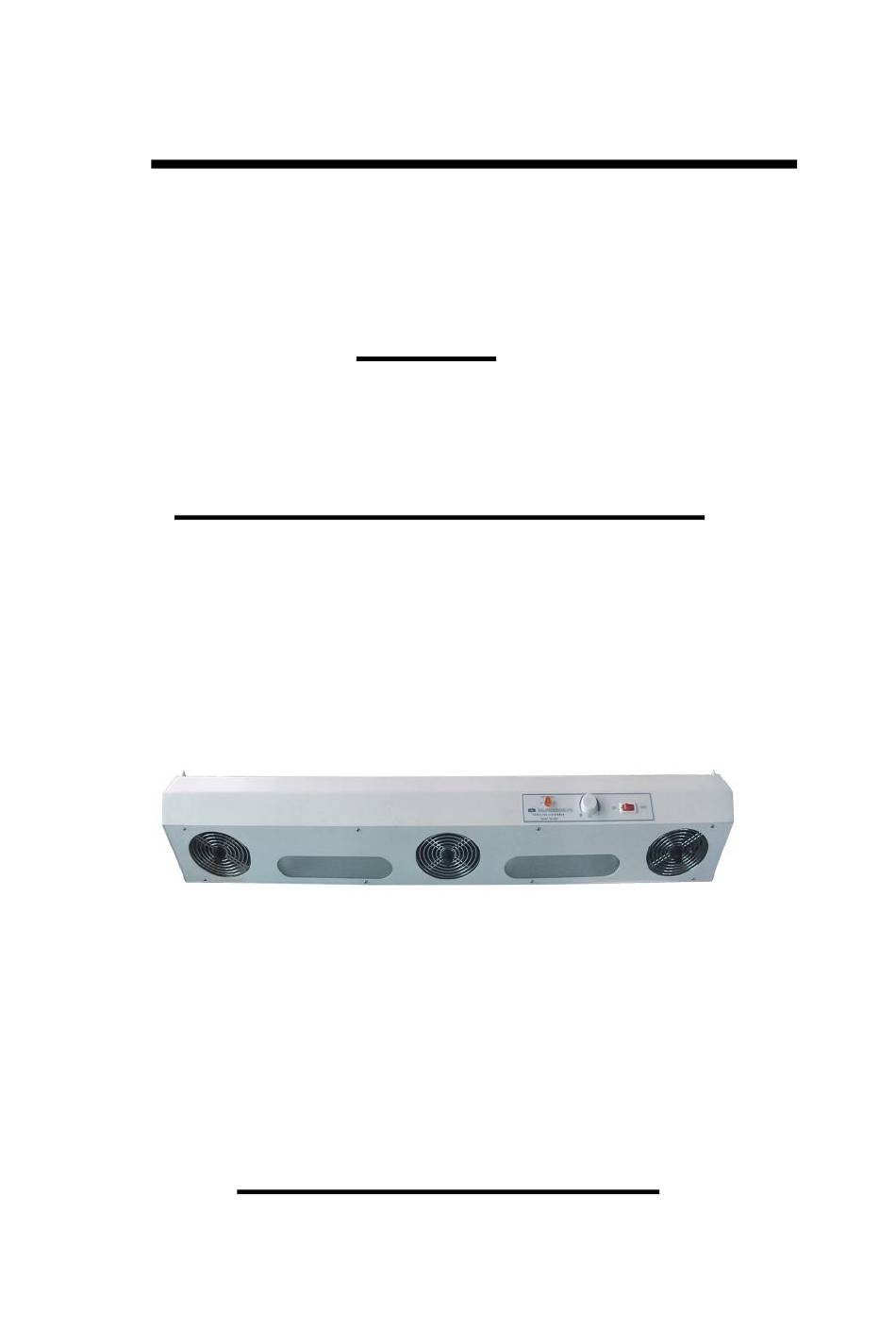

  • Page 1 INSTRUCTION SL-003 IONIZING AIR BLOWER DR.SCHNEIDER PC...
  • Page 2 Replace the front panel. SL-003 Overhead Ionizing Air Blower is a device of the ionizing air blower series. The SL-003 blower is an overhead unit designed to provide total coverage for electrostatic problems.
  • Page 3 Ion Balance(offset voltage) 0V+/-10V(It requires no calibration) 3. INSTALLATION The SL-003 Ionizing blower should be located 600 to 900mm above work surface with center fan directly above critical area. There should be no cross flow of air between unit and work surface. Drafts from air conditioning or heating air outlets can affect the performance of this device.
  • Page 4 The color cord for wiring the plug is as follows: Red-line; Blue-Neutral; Green/Yellow-Ground. 4. OPERATION Activate the SL-003 Overhead Ionizing Air Blower by turning FAN SPEED knob clockwise, out of the off position. The IONIZATION INDICATOR will illuminate to indicate the presence of ionized air. Set airflow as lights desired by adjusting FAN SPEED knob.
  • Page 5 When the SL-003 blower is used in an electronic assembly area, the ionized air stream should cover as much of the working area as possible. The constant flow of ionized air will prevent items such as work surfaces, tools, materials and components from developing a static charge.
  • Page 6 1. Take a piece of plastic and rub it with cloth until a static charge can be read with the static meter. 2. Turn on the SL-003 unit and set fan speed to high. 3. Hold the plastic one foot away from center ionized air outlet for five seconds.
  • Page 7 This will result in a meaningless reading. 5.5 Calibration Ion output of the SL-003 unit is inherently balanced by design. As a result, there are no calibration adjustment. After checking ion balance as outlined in Section 5.4,if an unbalance or offset voltage exists in...
  • Page 8 excess of 0± 10 volts, contact Dr. Schneider Customer Service Center. 5.6 Task Light Replacement If either task light doesn’t turn on, dims appreciably or flickers, the compact fluorescent lamp should be replaced as soon as possible. Access to lamp is provided by removing the front panel of the device. Disconnect the device by unplugging line cord.
