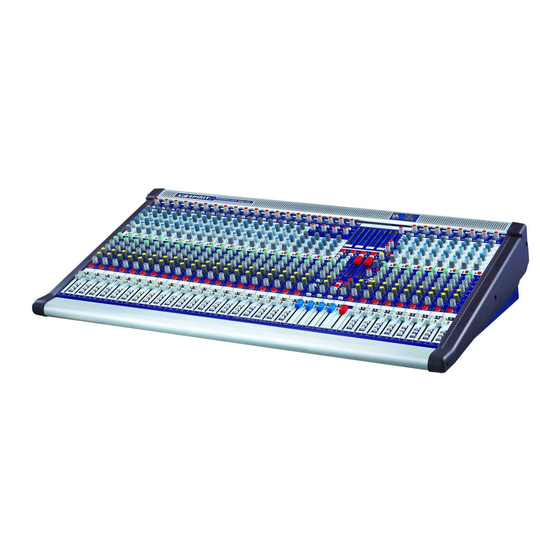

- Page 2 IMPORTANT SAFETY INSTRUCTIONS The lightning flash with arrowhead symbol, within CAUTION an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage RISK OF ELECTRIC SHOCK DO NOT OPEN within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK.
- Page 3 ATTENTION! ATTENTION! The following special limitations apply to the console and must be observed in order to maintain safety and electromagnetic compatibility performance: POWER CONNECTION The console should only be operated with the power supply connected to ground via its mains supply the connector.
-
Page 4: Table Of Contents
CONTENTS CONTENTS CONTENTS......................1 Mono Input Channel ..................... 2 Stereo Input Channel .................... 4 MASTER SECTION ....................6 CONSTRUCTIONAL DRAWINGS .................12 TECHNIQUE INDEX ....................15 CONNECTORS ...................... 17 KING-416 STRUCTURAL ...................18 KING-432 STRUCTURAL ...................19 KING-424 STRUCTURAL ...................20... -
Page 5: Mono Input Channel
MONO INPUT CHANNEL The KING Mono Channel is equipped with an XLR input, which can be +48V used for Mic or Line level signal sup to +22dBu. An additional 1/4 inch GAIN jack socket, provides an input for line level signals, which require protection against accidental 48 volt connection KING The Line input gives 20dB of permanent attenuation to the input signal which will allow the LINE... - Page 6 MONO INPUT CHANNEL 11. The FX controls give continuous adjustment of the post fader level sent from the input channel to the FX busses. The level adjustment is from FX 1 POST +10dB to off with 0dB at the centre position of the rotary Control. 12.
-
Page 7: Stereo Input Channel
STEREO INPUT CHANNEL +48V 17-18 The KING stereo input channel is equipped with an XLR input which can be GAIN used for Mic or Line level signals up to +22dBu. Two additional1/4 inch jack sockets, provide an input for Stereo- or Mono Line level signals up to +28dBu.The stereo channel features the same hi-value microphone pre- amp as the mono channel. - Page 8 STEREO INPUT CHANNEL FX 1 10. The FX controls give continuous adjustment of the level sent from the POST input channel to the FX busses. The level adjustment is from + 10dB to off with 0dB at the centre position of the rotary control. The FX controls are connected post-fader and send the mixed left/right signal to the FX FX 2 Busses.
-
Page 9: Master Section
MASTER SECTION 1. The PAN controls the group placement within the master stereomix and has a constant power law i. e. -3dB at the centre position and 0dB or off at either extreme Setting. 2. The MAS switch connects the post fader group signals to the stereo master bus via the pan Control. - Page 10 MASTER SECTION 1. The MUTE switch mutes the Fxreturn at all pointes. 2. The SOLO switch sends the Fxreturn signal to the PFL / mono and AFL / MUTE stereo busses. If the switch is engaged the mon 1 /2 meters are automatically used for solo metering SOLO 3.
- Page 11 MASTER SECTION 1. The MUTE switch mutes the monitor send output signal. MON 1 MUTE 2. The SOLO switch routes the monitor send signal to the PFL/ mono and AFL/ stereo busses. If the switch is engaged, the mon 1/2 meters are automatically used for solo metering.
- Page 12 MASTER SECTION TAPE 1. The TAPE inputs provide a feed from an unbalanced phono source to the stereo master busses or to phones and speakers outputs. The TAPE IN level control provides nominal adjustment from +20dB to off with 0dB at the centre position of the rotary control.
- Page 13 MASTER SECTION 1. The talkback LEVEL control gives continuous adjustment of the talkback TALKBACK signal from +50dB to off. The talkback input accepts a maximum input level of +8dBu. LEVEL 2. The non-latching MON switch connects the talkback mic to mon1 and mon2 busses.
- Page 14 MASTER SECTION LAMP 12V/5W 12V/5W 1. A convenient connection for two 12V desk lamps is provided via the 4pin- female XLR connectors. Thepower rating 5W is the maximum rating per output and may not be Exceeded. PHONE 2. The 1/4 inch jack sockets provide stereo outputs for one PHONES. Output are controlled via the phones rotary control.
-
Page 15: Constructional Drawings
CONSTRUCTIONAL DRAWINGS... - Page 16 CONSTRUCTIONAL DRAWINGS Group1 Group2 Group3 Group4...
- Page 17 CONSTRUCTIONAL DRAWINGS...
-
Page 18: Technique Index
TECHNIQUE INDEX Features and Specifications KING-416 KING-424 K I N G - 4 3 2 Inputs (total) Mono-Inputs (Mic/Line) with Inserts Stereo-Line/Mono-Mic-Input Channels 4 / 4 Stereo-Effect-Returns (Line) Stereo-Tape-Return (Line) 1 left/right Busses Subgroups Aux Pre-Fader (Monitor) Aux Post-Fader (Effects) - Page 19 CONSTRUCTIONAL DRAWINGS Input Impedance 2k Balanced Line 20k Balanced Input Gain Continuously variable from 0dB to + 60dB Line Mono Channel Continuously variable from - 20dB to + 40dB Line Stereo Channel Continuously variable from - 20dB to + 20dB Line Level Inputs Maximum Input Level + 22dBu...
-
Page 20: Connectors
LINE LINE LINE LINE LINE LINE/R LINE/R LINE/R LINE/R OUT R/MOMO OUT L/MOMO AUX 2 AUX 1 KING-416 MASTERS B AUXILIARY SENDS 15-16 13-14 11-12 9-10 +48V -17V +17V MIXER CONSOLES EXTERNAL POWER SUPPLY POWER VOLTAGE SELECT SWITCH 110V CAUTION... -
Page 21: King-416 Structural
STRUCTURAL DIMENSIONS 568mm 79.45 mm PHONE KING-416 PROFESSIONAL MIXER +48V +48V +48V +48V +48V +48V +48V +48V +48V 17-18 +48V 19-20 +48V 21-22 +48V 23-24 GAIN GAIN GAIN GAIN GAIN GAIN GAIN GAIN GAIN GAIN GAIN GAIN OUTPUTS LEVEL INDICATION... -
Page 22: King-432 Structural
KING-432 STRUCTURAL... -
Page 23: King-424 Structural
KING-424 STRUCTURAL... - Page 24 PROFESSIONAL SOUND SYSTEM...
