Contents of Package
a. Solar panel/charger/battery
assembly (fig. 1)
b. Plug adapter (fig. 3)
c. Snap connector adapter (fig. 4)
d. U-bolt
Battery Charger
Power Cable
Ground Wire
Voltage Range
Capacity
Operating
Temperature
Dimensions
(Panel alone)
Dimensions
(Panel plus battery and bracket)
Weight
Fuse
Solar Power Package
Quick Start Guide
Item # 3999
Charger
Battery
Cable
Zip Tie
Specifications
5.25 V to 6.75 V
5W solar panel with rechargeable
battery pack, (6V, 4.5 Ah)
-4 to 122 °F (-20 to 50 °C)
10.6 x 8.7 x 0.7 inches
27.0 x 22.2 x 1.8 cm
10.6 x 10.6 x 2.1 inches
27.0 x 27.0 x 5.3 cm
3.8 lbs (1.72 kg)
Automotive Mini Blade Fuse, 3A,
32VDC, fast
Mounting the Solar Panel
The solar panel bracket attaches to a
post or pipe using the U-bolt (fig. 2).
The U-bolt can accommodate a post
diameter of 1.37 inches (3.5 cm) or
less.
Fuse
Wire
+ Terminal
Fuse

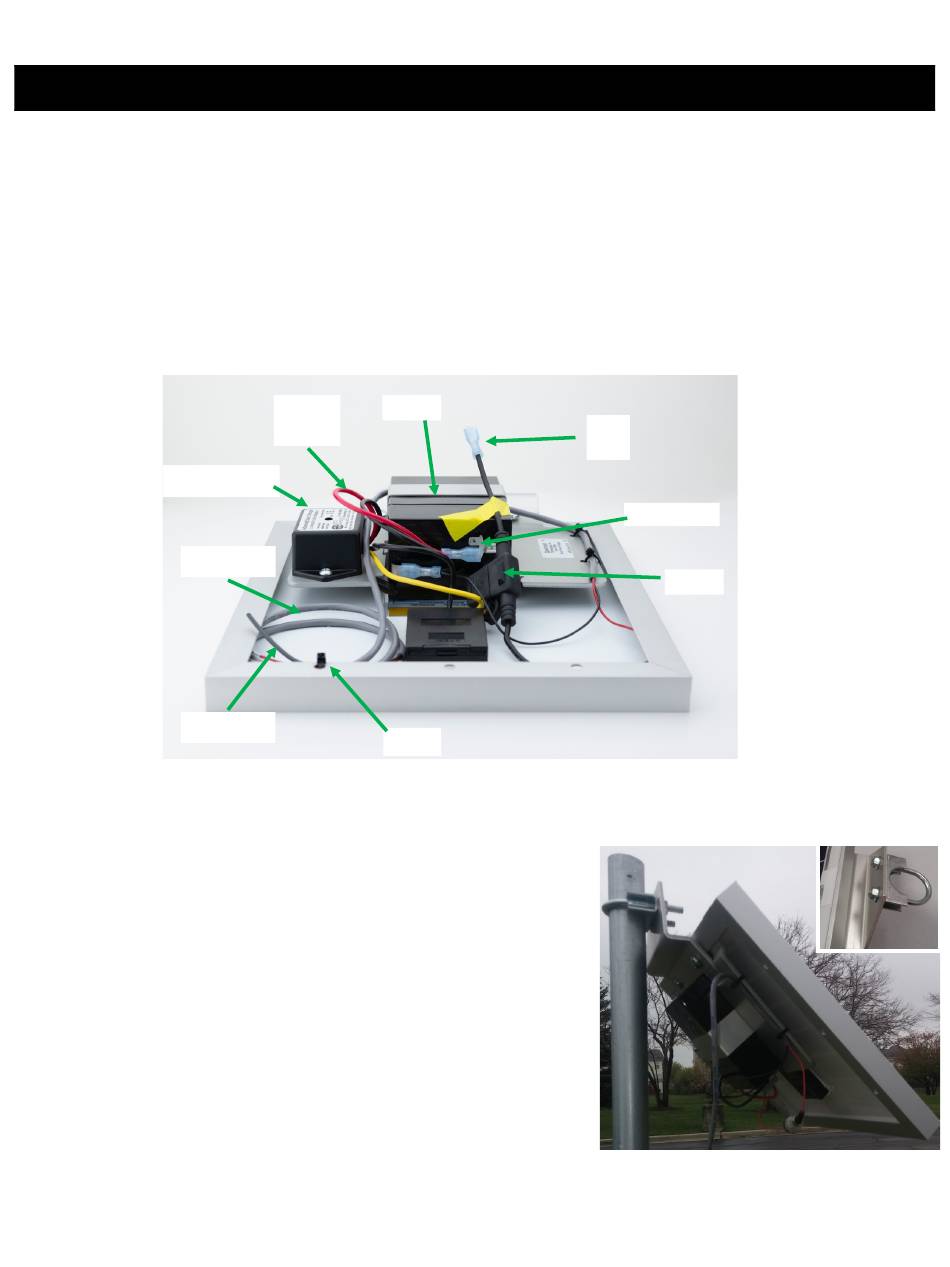

Figure 1:
Main assembly

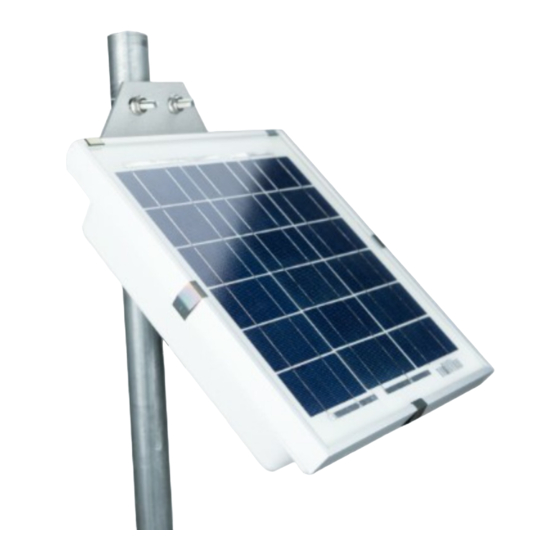

Figure 2: Solar panel connected to post
Advertisement
Related Manuals for Spectrum Technologies 3999
Summary of Contents for Spectrum Technologies 3999
- Page 1 Solar Power Package Quick Start Guide Item # 3999 Contents of Package Mounting the Solar Panel a. Solar panel/charger/battery The solar panel bracket attaches to a assembly (fig. 1) post or pipe using the U-bolt (fig. 2). b. Plug adapter (fig. 3) The U-bolt can accommodate a post c.
- Page 2 Connecting Solar Power Package to a WatchDog DO NOT attach the charge cable to the battery's positive terminal until the WatchDog unit is completely connected. To avoid possible damage to the Solar Power Package, or your WatchDog device, the Solar Power Package is shipped with the charger cable disconnected from the positive terminal of the battery (fig.
