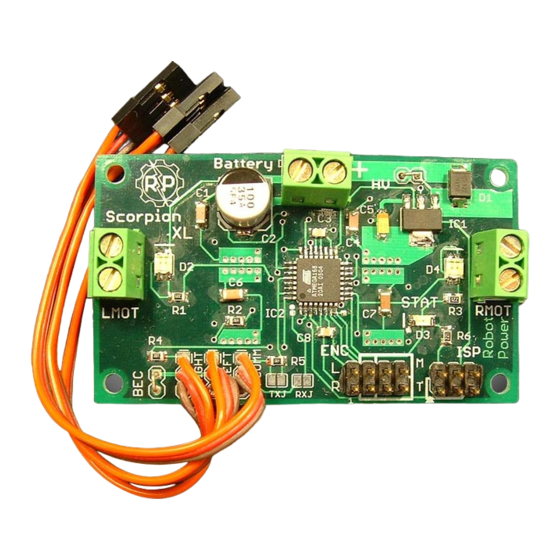

Scorpion XL
Quick Start Guide
Thank you for purchasing the Robot Power Scorpion XL motor control. This guide is a
brief how-to on setting the operating mode of the Scorpion. It is not intended to replace
the complete Scorpion XL User Manual available from
http://www.robot-
power.com/downloads
R/C Connections
The Scorpion XL comes equipped with 3 R/C leads marked L, R, and F (Left/Right/Flip)
on the plastic connector ends. These should be attached to your R/C receiver or signal
source just like a normal R/C servo. In a mixed mode (see below) the Right R/C lead
should be connected to the steering channel and the Left channel to the throttle. The Flip
control may be connected to either an R/C channel or a gravity switch inside the robot.
See the User manual for details.
Advertisement
Table of Contents
Summary of Contents for Robot Power Scorpion XL
- Page 1 Scorpion XL Quick Start Guide Thank you for purchasing the Robot Power Scorpion XL motor control. This guide is a brief how-to on setting the operating mode of the Scorpion. It is not intended to replace the complete Scorpion XL User Manual available from http://www.robot-...

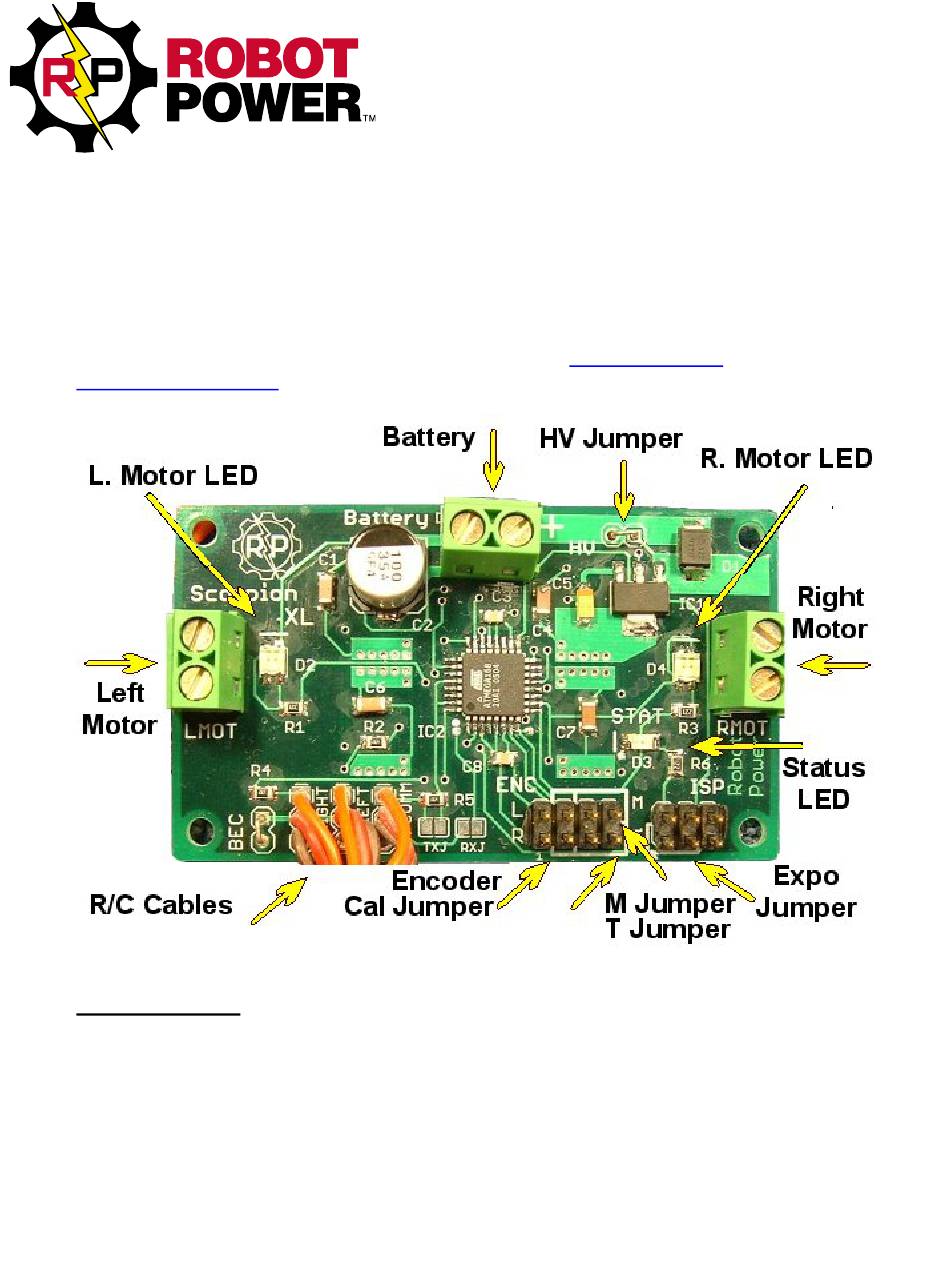

- Page 2 Different radio systems have slightly different center points and travel ranges. To adjust the Scorpion XL to your radio a jumper is located on the ENC header on the circuit board to activate the radio calibration function. To calibrate the Scorpion XL to your radio...
