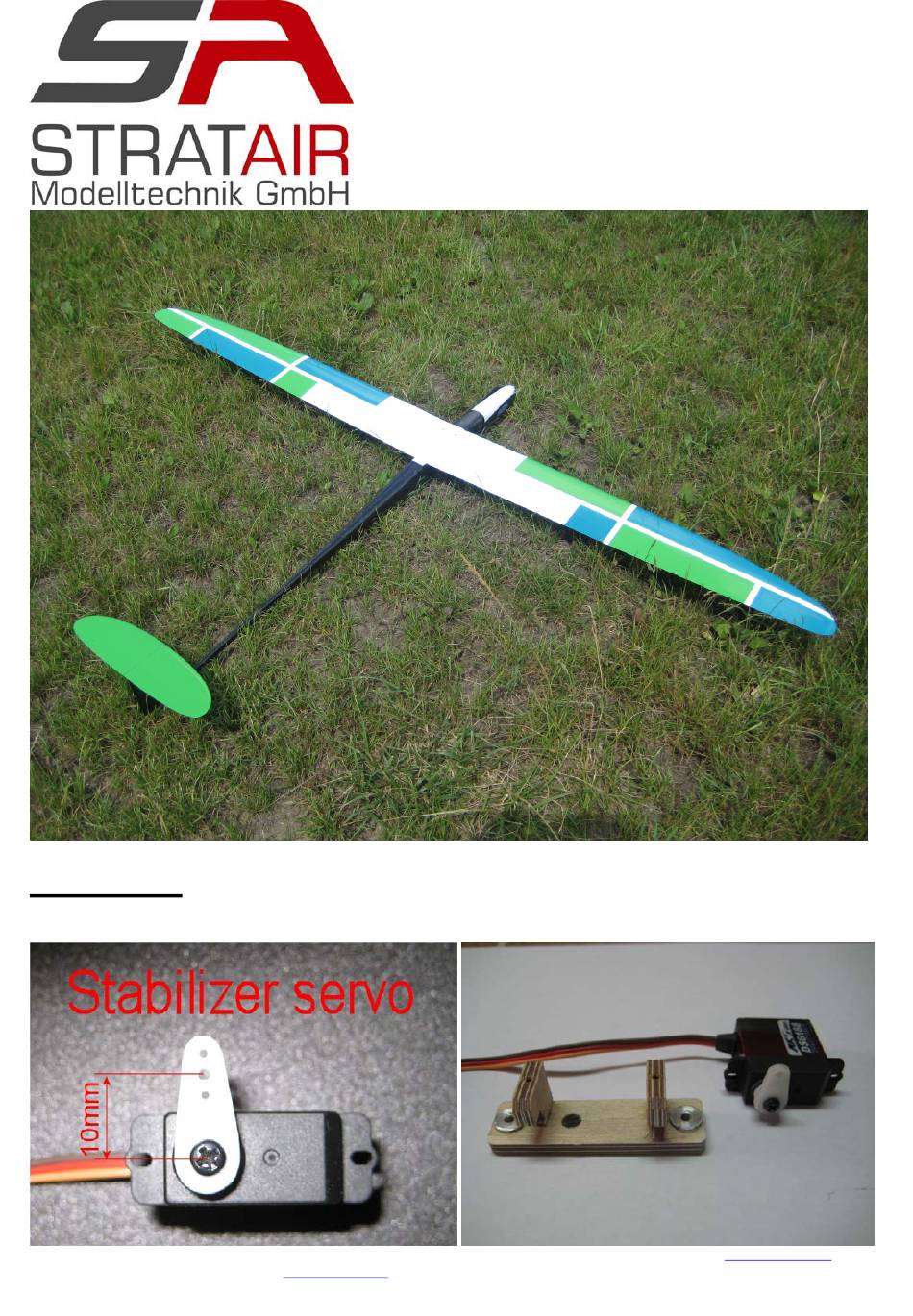

- Page 1 Raketenwurm Fuselage: Put wooden servo mounting together, fix them with CA, insert M3 nut into wood. STRATAIR- Modelltechnik GmbH, Batthyanystrasse 1, A-2454 Trautmannsdorf, Tel: +43(664)5178282, info@stratair.com www.stratair.com, UID-Nr.: ATU 612 284 88, FN : 253148 b...
- Page 2 Glue M2 rods into 4/2mm carbon tube. Solder 1,5mm steel wire into coupler STRATAIR- Modelltechnik GmbH, Batthyanystrasse 1, A-2454 Trautmannsdorf, Tel: +43(664)5178282, info@stratair.com www.stratair.com, UID-Nr.: ATU 612 284 88, FN : 253148 b...
- Page 3 Slide servo + pushrod into fuse and fix it with M3 screws Inserst bell crank and secure it with short 2,5mm steel bolt. Screw pushrod into clevis of bellcrank STRATAIR- Modelltechnik GmbH, Batthyanystrasse 1, A-2454 Trautmannsdorf, Tel: +43(664)5178282, info@stratair.com www.stratair.com, UID-Nr.: ATU 612 284 88, FN : 253148 b...
- Page 4 Do NOT press needless the fuselage in area between end of wing until beginning of vertical stabilizer. Wing: Servocables are ready to use. If you have to change a wingservo remove cover and open surface. STRATAIR- Modelltechnik GmbH, Batthyanystrasse 1, A-2454 Trautmannsdorf, Tel: +43(664)5178282, info@stratair.com www.stratair.com, UID-Nr.: ATU 612 284 88, FN : 253148 b...
- Page 5 Battery Setup: Motor battery can be installed from the front or through the opening in wing area. Max. dimensions: 34x43x230mm 37x37x230mm STRATAIR- Modelltechnik GmbH, Batthyanystrasse 1, A-2454 Trautmannsdorf, Tel: +43(664)5178282, info@stratair.com www.stratair.com, UID-Nr.: ATU 612 284 88, FN : 253148 b...
- Page 6 (also – 80% Diff possible) + = up - = down STRATAIR- Modelltechnik GmbH, Batthyanystrasse 1, A-2454 Trautmannsdorf, Tel: +43(664)5178282, info@stratair.com www.stratair.com, UID-Nr.: ATU 612 284 88, FN : 253148 b...
- Page 7 Hor. Stabilizer tolerance check Attention: The Raketenwurm 4 is no model for beginners. Because of high speed you could threaten material and persons if there are any model or stearing faults. STRATAIR does not assume liability for damages! Technical data:...
